Description
Same woofer, amplifier, power supply and On-Board Digital signal processing as J 15A
4 DSP preset specially designed for DJ users
Two channel input mixer with stereo/mono OUT

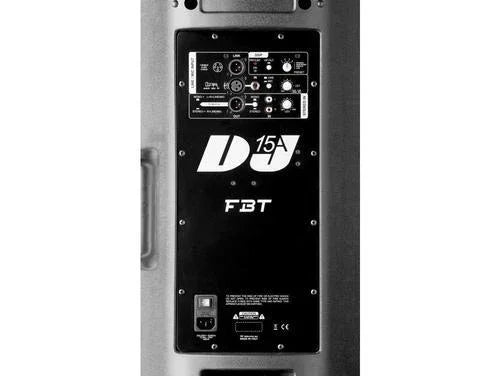

Input panel with XLR/jack input and XLR link, Mic/line switch, LEvel, HP filter, 4 Preset Switch, Stereo RCA input, level, XLR OUT for dasy-chaining with Stereo/Mono switch selector
- 2-way bi-amplified system in Bass-Reflex
- Polypropylene enclosure with integrated handle except J 5A/5
- 2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
- 25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
- 90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)
350W+ 100W RMS – 129dB SPL
- 380mm (15’’) custom woofer with improved efficiency and linearity
- 25mm (1”) HF custom compression driver
- 90°H x 60°V constant directivity horn
- 2-way bi-amplified system in Bass-Reflex
- 350Wrms class D amplifier for LF and 100Wrms for HF
- High efficiency switch mode power supply
- On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
- 4 DSP preset specially designed for DJ users
- Two channels input mixer with stereo/mono OUT
- Input panel with XLR/jack input and XLR Link, Mic/Line switch, Level, HP filter, 4 Preset Switch, Stereo RCA input, level, XLR OUT for dasy-chaining with Stereo/Mono switch selector
- Polypropylene enclosure with integrated handle
- 2 x M10 anchoring points
- 35mm Internal top hat
- Net weight 14kg
- Net dimensions 410x663x387mm (W/H/D)
Configuration:2 Way
Frequency response:48Hz - 20Khz
Low frequency woofer:15" with 2" VC
High frequency driver:1" with 1" VC
Maximum SPL cont/peak:125 / 129dB
Dispersion:90 x 60 (HxV)
Input impedance:220 Kohm
Crossover frequency:1.8Khz
Input connector:XLR-Jack Combo with link out
Net Dimension (WxHxD):310 x 663 x 387mm / 16.14 x 26.10 x 15.23in
Net Weight:14kg / 30.86lb
Transport Dimension (WxHxD):495 x 740 x 475mm / 19.48 x 29.13 x 18.70in
Transport Weight:17.1kg / 37.69lb
AC Power requirements:400VA
Built-in amplifier LF/HF:350/100w RMS
Built-in amplifier peak LF/HF:700/200W
Power cord:5m IEC
