FBT DLM-260 Digital Loudspeaker Management Processor, 2in, 6out
Product Description
The DLM 260 is a DSP based 2 inputs x 6 output digital loudspeaker management processor, ideally suited for fixed installations and live events. It combines the functions of a multitude of conventional products in a compact 1U unit with extensive PC remote control capabilities.
Routing is freely assignable from the two inputs to the six outputs. Input and output equalisation is available with a choice of 16 filter options. A total of 31 IIR EQ is available for each input, or 13 IIR EQ + FIR;eight IIR EQ for each output or four IIR EQ + FIR is also available. Many options for crossover type include IIR from 6 to 48dB/oct, FIR and Linear Phase with constant group Delay. Input and output delay is available to time align components in a system; RMS and peak limiters will protect your speakers from damage due to excessive power being applied.
On input paths, the processing chain sees in cascade: input gain / delay / noise gate / dynamic loudness / filtering section / RMS compressor.
On output paths the processing chain sees in cascade: output gain / delay / polarity/ filtering section / RMS compressor / peak limiter.

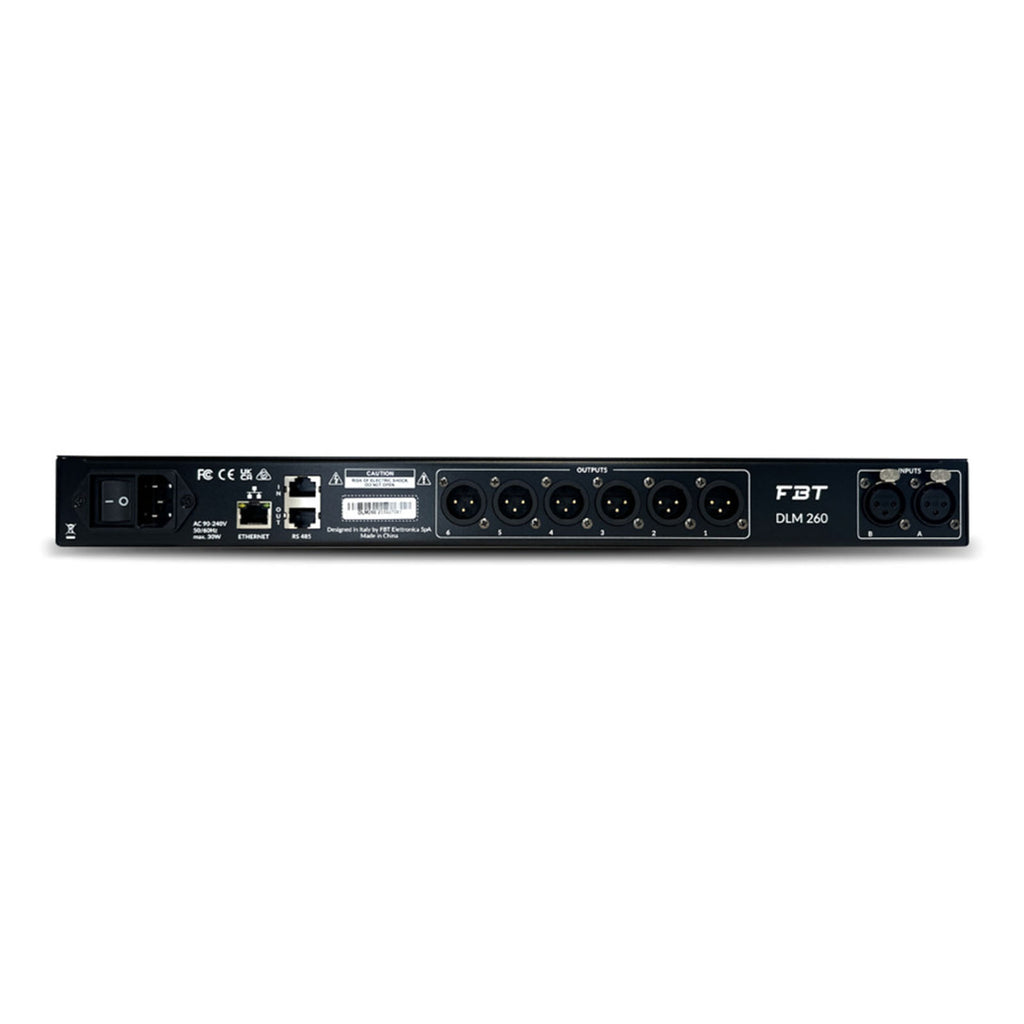

The processor features 32 user memory locations to store popular configurations and settings can be exported to a file via the dedicated PC application, either as a back-up or to store more favourite configurations if the 32 on-board presets are not sufficient. A very useful function is the ability to recall entire output channel configurations. PC connectivity is available via a front panel USB port but for larger systems with several processors can use Ethernet or RS-485 network connections.
Professional 2-input, 6-output system processor
• Freq/Phase system response measurement with PC and sound card
• Fully assignable matrix roung of both inputs to any output
• IIR, FIR and Linear Phase crossover
• Signal generator Pink/white noise
• Comprehensive processing opons including EQ, Gate, Delay, Dynamic
EQ
•Auto EQ roune using IIR, FIR, Linear phase filters and user target curve
• RMS and Peak limiter
DLM 260
DIGITAL LOUDSPEAKER MANAGEMENT
• One press Mute buons for all inputs and outputs

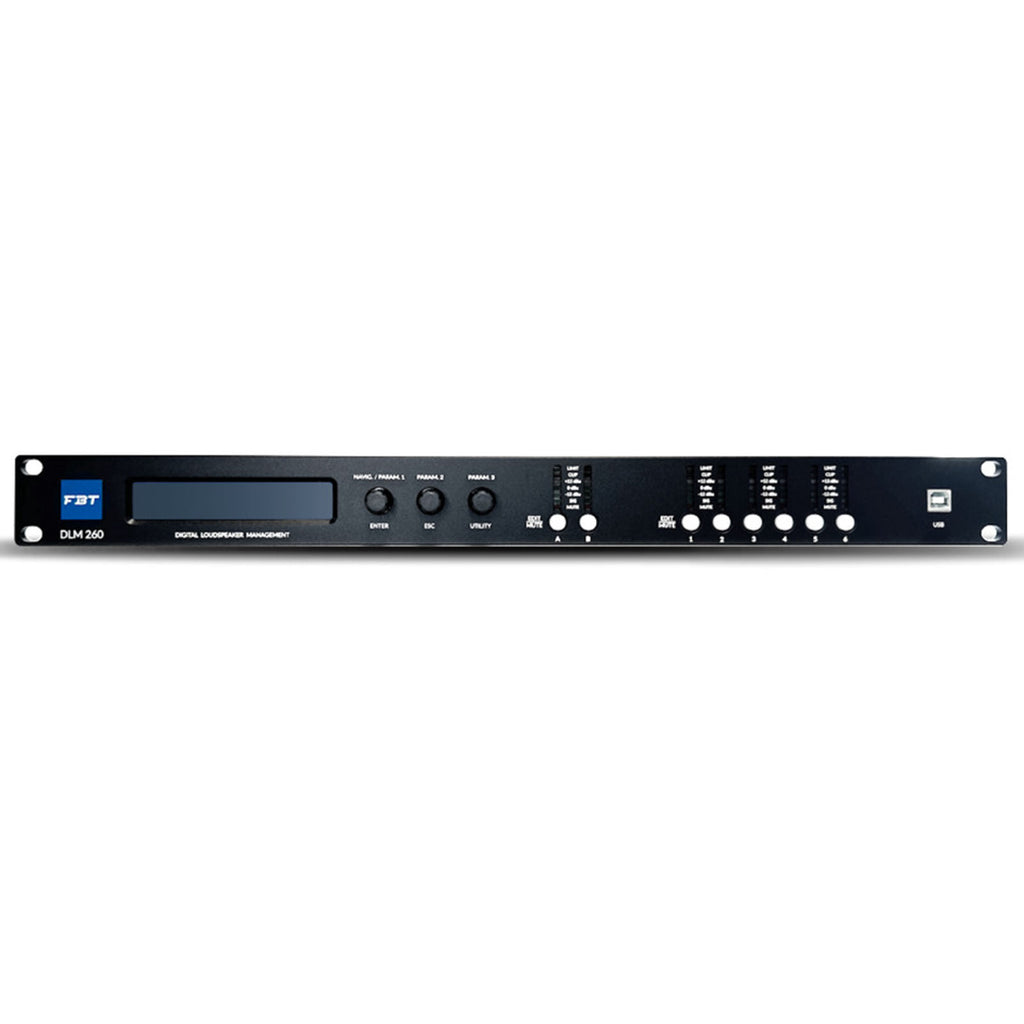

• Front panel control with LCD displaywith an intuive menu
• Networking opon using either Ethernet or RS 485 for larger systems
• Front panel USB port for quick and easy PC connecon
• Six segment Led metering for input and output level and limiter operaon
• Output channel preset import funcon
• 3-level customisable user modes with individual password protecon
• 32 user Presets to store system configuraons
