Description
The new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line. The new J series is a competitive, value for money range of speakers.
The range is based on the development of three new high efficiency class-D amplifiers with power specifications of 350 + 100W for the J 15A & J 12A, 200 + 50W for the J 8A and 80 + 40W for the J 5A.
These amplifiers have been designed 'from the ground up' in FBT’s R&D laboratories.
The largest amplifier model that equips the J 15A and J 12A has a switch mode power supply as well as a digital signal processor with 4 pre-sets.

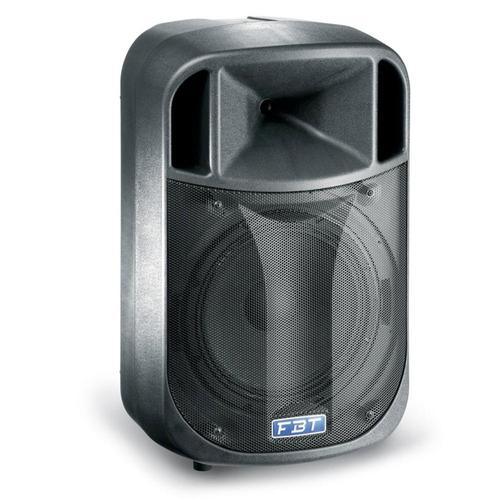

Processed Active Monitor
350W+ 100W RMS – 128dB SPL
350W+ 100W RMS – 128dB SPL
Features
- 320mm (12’’) custom woofer with improved efficiency and linearity
- 25mm (1”) HF custom compression driver
- 90°H x 60°V constant directivity horn
- 2-way bi-amplified system in Bass-Reflex
- 350Wrms class D amplifier for LF and 100Wrms for HF
- High efficiency switch mode power supply
- On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
- 4 DSP preset for maximum acoustical flexibility
- Polypropylene enclosure with integrated handle
- 2 x M10 anchoring points
- 35mm Internal top hat
- Net weight 13.7kg
- Net dimensions 410x663x387mm (W/H/D)
Specification
Configuration:2 Way
Frequency response:55Hz - 20kHz
Low frequency woofer:12
High frequency driver:1
Maximum SPL cont/peak:123 / 127db
Dispersion:90 x 60 (HxV)
Input impedance:8 ohm
Crossover frequency:2 kHz
Input connector:2x Speakon NL4 In & Thru
Net Dimension (WxHxD):410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
Net Weight:14.1kg / 31.8lb
Transport Dimension (WxHxD):495 x 740 x 475mm / 19.48 x 26.10 x 18.7in
Transport Weight:17.2kg / 37.91lb
AC Power requirements:400VA
Built-in amplifier LF/HF:350/50W RMS
Built-in amplifier peak LF/HF:700/200W
Power cord:5m EC
