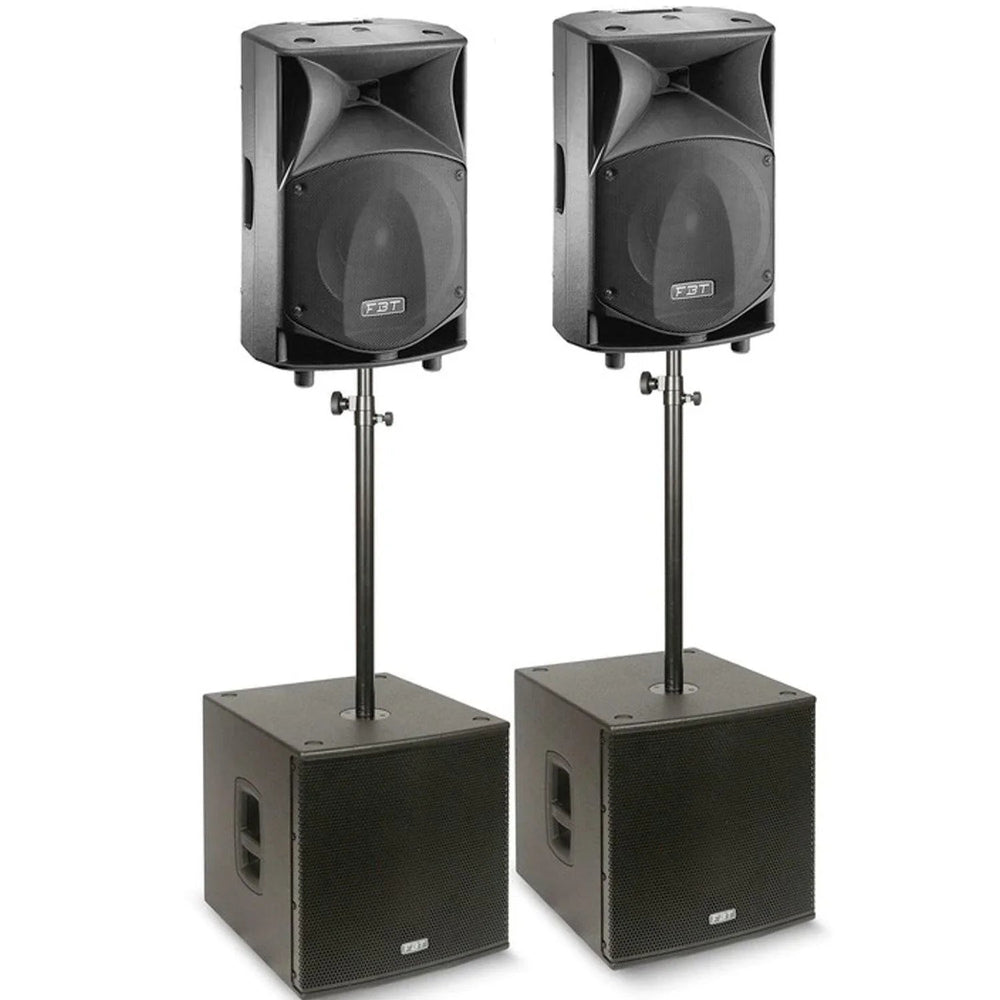

FBT JM 2000 JMaxX 112A & SUBline 115SA Package With Covers

This Bundle Includes:

Package Contents

2 x FBT JMaxX 112A Active Speaker - 1 x 12" + 1" Active Speaker (SPLdB 125/131) - 13.8KG

2 x FBT SUBline 115sa 15" Active Subwoofer - 15" Active Subwoofer (SPL dB 132/135) - 28KG

2 x MSA 220BK - Telescopic Poles

4 x (2 x V64 / 2 x SL-C115) Padded Covers

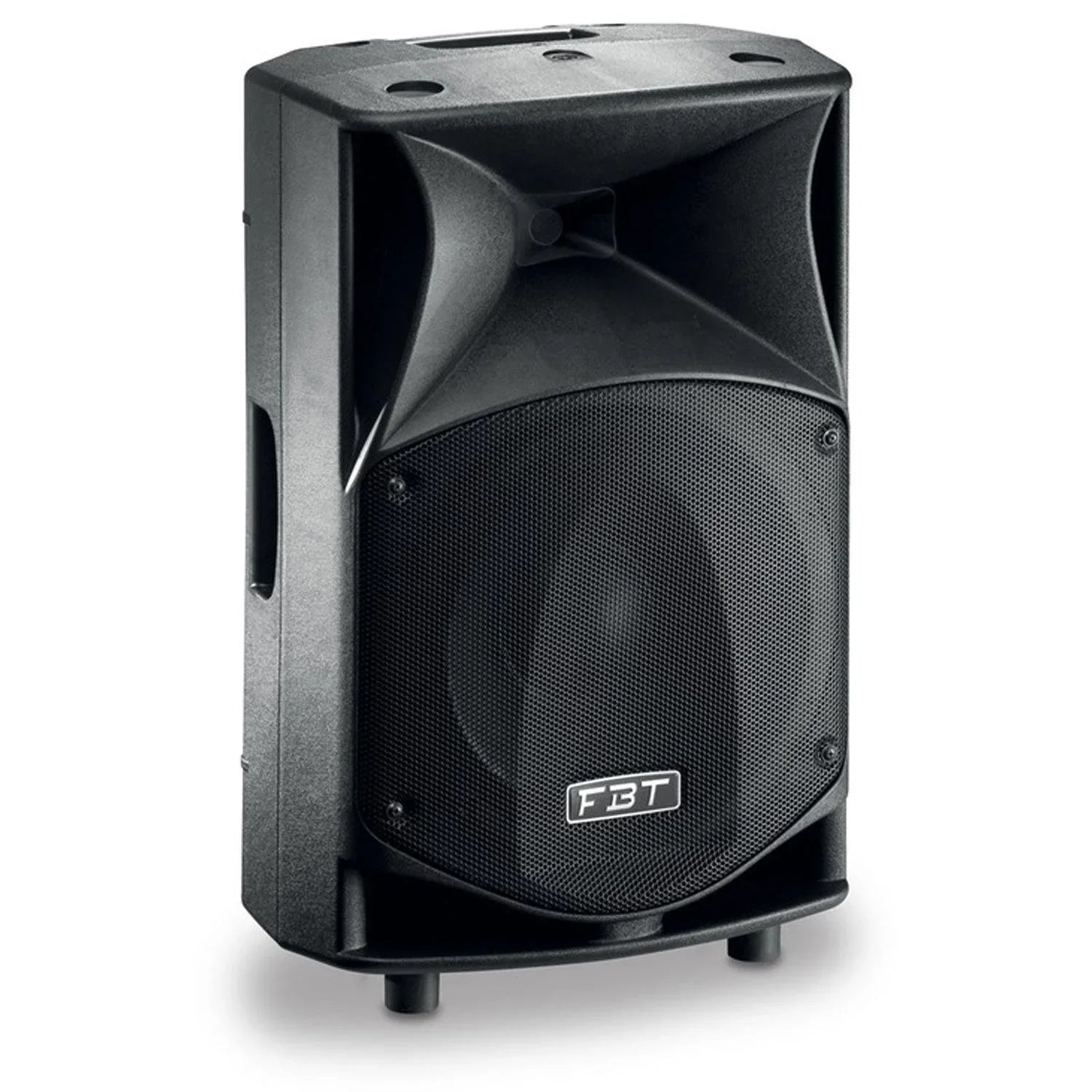

FBT JMaxX 112A Active Speaker

The JMaxX 112A features a 12” LF woofer with 2” voice coil 1’’ exit throat HF compression driver with 1” voice coil 700W RMS LF, 200W RMS HF DSP with 4-EQ pre-sets all in an icredibly lightweight gas injected molded polypropylene cabinet. 131 dB SPL .

Processed 2-way active loudspeaker
700W + 200W – 131 dB SPL (peak)

The new FBT JMaxX 112A combines ease of use and versatility for many portable or installed sound applications: musicians, DJs, AVL contractors, rental sound reinforcement, corporate events, houses of worship, bars and clubs.

With its eye-catching gas-injected forms designed to virtually eliminate undesired enclosure resonance and reinforce strong low frequency performance, the 12-inch JMaxX 112A is equipped with FBT’s latest 90° x 60° HF horn design which delivers improved projection, accuracy, and dispersion of the mid and high frequencies.

Providing a myriad of possibilities for bands, DJs and solo artists, as well as for permanent installations, the JMaxX 112A is actually four loudspeakers in one. Derived from a decade of experience of portable sound reinforcement, the carefully tailored equalisation presets offer highly intelligible response for vocals and floor monitoring; slightly boosted response in lounge bar applications; punchy and forward sound for DJs and night venues; and a general-purpose EQ setting that mirrors the original and familiar FBTMaxX voicing.

The JMaxX 112A features  FBT’s latest generation lightweight 700W + 200W Class D power amplifier with universal switch mode power supply, delivering abundant power and headroom to reproduce even the largest transients without distortion.

XLR inputs and outputs, volume control, the EQ presets and filters, and ground lift switch are all conveniently located on a clearly laid out rear panel, making loudspeaker setup and operation intuitive and consistently repeatable.

The JMaxX versatility is further underscored by the many mounting and fixing options that the ergonomically styled cabinets provide. Mounting in fixed installations is made easy using the M10 suspension points or wall bracket flange plates, while portable use is facilitated by the built-in 35mm pole mount socket.

There’s no need for separate stage monitors, as JMaxX’s cabinet profiles are designed with 12°, 40°, and 55° wedge angles, and when used with the specific floor monitoring EQ presets, will ensure that performers hear themselves with ultimate clarity.

Weighing just 13.8 Kg and yest still packing a genuine 900 Watts RMS The JMaxX 112A is a winning combination of perfomance in an ulta lightweight package.

Features

• 12 Inch Low Frequency Woofer and a 1" High frequency Compression driver
• 2-way, bi-amplified bass reflex design cabinet
• 700W RMS LF, 200W RMS HF, Class D power amplifiers with switch mode power supply
• DSP with 4-EQ presets
• Control panel with: XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch
• 2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate
• 90° Horizontal x 60° Vertical constant directivity horn
• Stage monitor angling facility with 12°, 40° or 55° taper
• Just 13.8 Kg

Specification

Configuration: 2 Way

Frequency response: 48Hz - 20kHz

Low frequency woofer: 12" (2" VC)

High frequency driver: 1" (1" VC)

Maximum SPL cont/peak: 131 dB

Dispersion: 90 x 60

Input connector: XLR + 6.3mm Jack

Net Weight: 13.8kg

Built-in amplifier LF/HF: 700w/200w

Power cord: 5m IEC

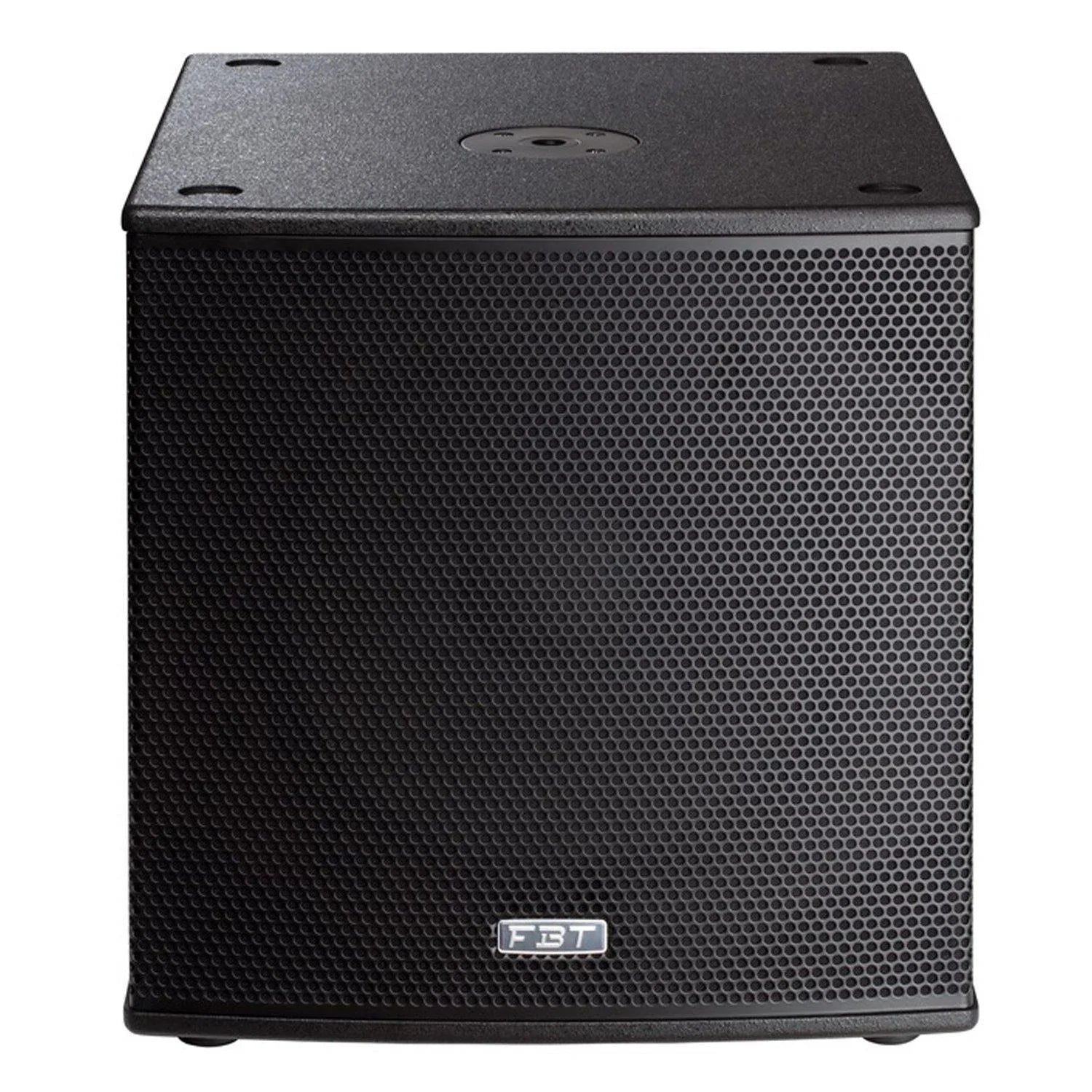

FBT SUBline 115sa 15" Active Subwoofer

The SubLine 115SA is a compact ACTIVE sub weighing just 28Kg .Yet delivers amazing punch. The built in amplifier is 700Watts at 8 Ohms it will deliver 135dB SPL from the 15", 3" Voice coil driver.incredible input flexibility with 2.1 option and powercon true 1 in and out . This great combination is in a Baltic birch plywood cabinet completely made in Italy .

The SUBline 115SA has been completely redesigned with a bass-reflex configuration, built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.

Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.

With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers. The Neutrik TRUE1 Power connection negates the need for a power switch while offering a solid locking connection.

Optional wheels,, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport

• Bass-reflex design with high SPL and punch
• 380mm (15") high excursion magnet woofer with 75mm (3") voice coil
• Frequency response from 40Hz to 140Hz
• New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
• Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
• Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch0°-180°, 3 status LED indicators
• 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles

Configuration:1 way

Built-in amplifier LF/HF:700 W RMS

Built-in amplifier peak LF/HF:1400 W

Frequency response:38Hz - 140Hz -6dB

Low Frequency woofer:15 inch

Maximum SPL cont/peak:132/135 Half-space dB

Dispersion:omnidirectional HxV

Input impedance:22 Kohm

Crossover Frequency:90 or 140Hz KHz

AC Power requirements:640 VA

Input connector:stereo XLR with loop, HP out

Power cord:6/19.7 m/ft

Net Dimension (WxHxD):500x517x570 / 19.7x20.3x22.4 mm/inch

Net Weight:28/61.7 kg/lb

Transport Dimension (WxHxD):600x617x670 / 23.6x24.3x26.4 mm/inch

Transport Weight:32/70.5 Kg/lb
