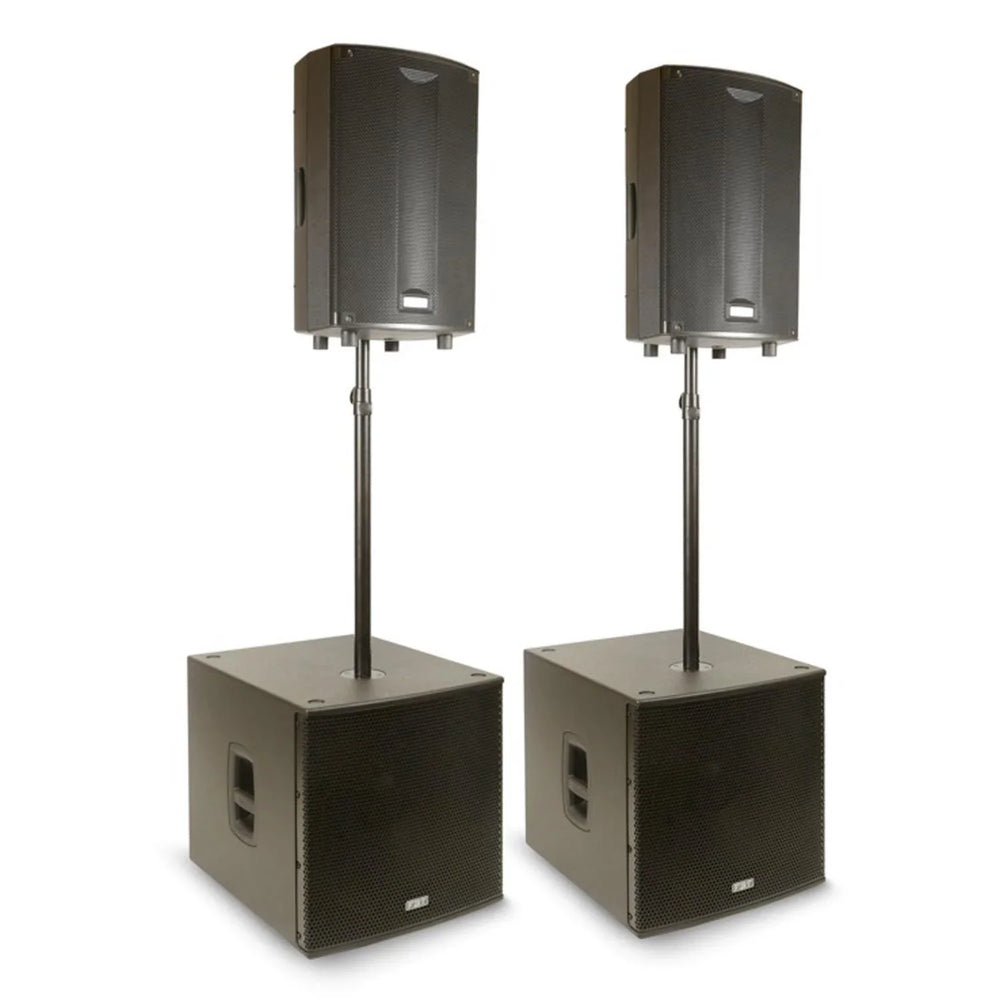

FBT PM 3000 ProMaxx 114A & SUBline 115SA With Covers

This package includes:

2 x ProMaxx 114A - 1 x 14" + 1" Active Speaker (SPLdB 127.5/135.5) - 17.5KG

2 x SUBline 115SA - 15" Active Subwoofer (SPL dB 132/135) - 28KG

2 x MSA 220BK - Telescopic Poles

4 x Padded Covers (2 x V64 / 2 x SL-C115)

FBT ProMaxx 114a 900w Speaker

With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.

Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology,PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.

Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.

Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 10 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,

The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.

Presets for every occasion

PROMAXX offers 6 presets to cater for a broad variety of uses, each crafted by FBT engineers. Employing powerful DSP, the presets ensure reliability while eliminating distortion.

• ORIGINAL / LIVE The renowned, smooth FBT sound
• VOCAL A special EQ setting to maximise speech intelligibility
• DJ Designed to keep the energy high and your audience dancing
• TOURING The reliability and the roar of the industry’s most popular touring systems
• LOUDNESS The ultimate preset for listening at a medium or low volume
• WARM A special setting to emphasise full-bodied, low-mid frequencies.
• 2-way, bi-amplified, bass reflex design cabinet
• Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
• Digital signal processor with graphic display

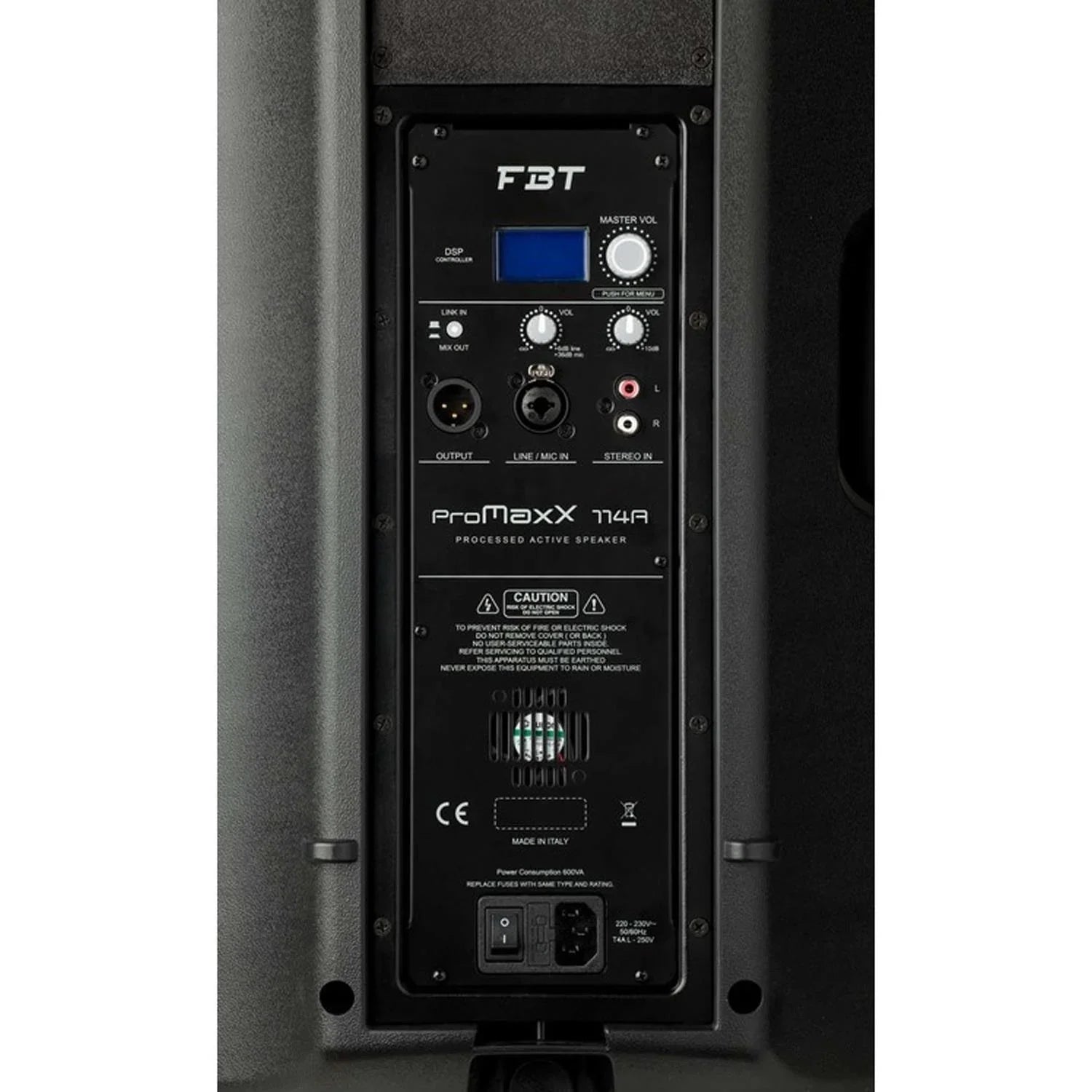

• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
• 90°H x 60°V constant directivity horn
• Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
• 3550mm (14") LF woofer with 64mm (2.5") voice coil, custom made for FBT
• 35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
• Frequency response from 45Hz to 20KHz
• Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
• Extremely light only 17.4kg
• Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our  14” LF Woofer for lower frequency SPL

Configuration: 2 Way

Frequency response: 45Hz - 20kHz -6dB

Low frequency woofer: 14"

High frequency driver: 1.4"

Maximum SPL cont/peak: 127/135.5dB SPL

Dispersion: 90 x 60

Input impedance: 22kOhm

Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input

Net Dimension (WxHxD): 402 x 644 x 345mm

Net Weight: 17.5kg

Transport Dimension (WxHxD): 800 x 642 x 800mm

Transport Weight: 54.5kg

AC Power requirements: 640VA

Built-in amplifier LF/HF: 900w (700w LF + 200w HF)

Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)

Power cord: 5m IEC

Built in amplifier: 900w (700w LF + 200w HF)

Built in amplifier peak: 1800w (1400w LF + 400w HF)

Maximum SPL continuous/peak: 127/135.5dB SPL

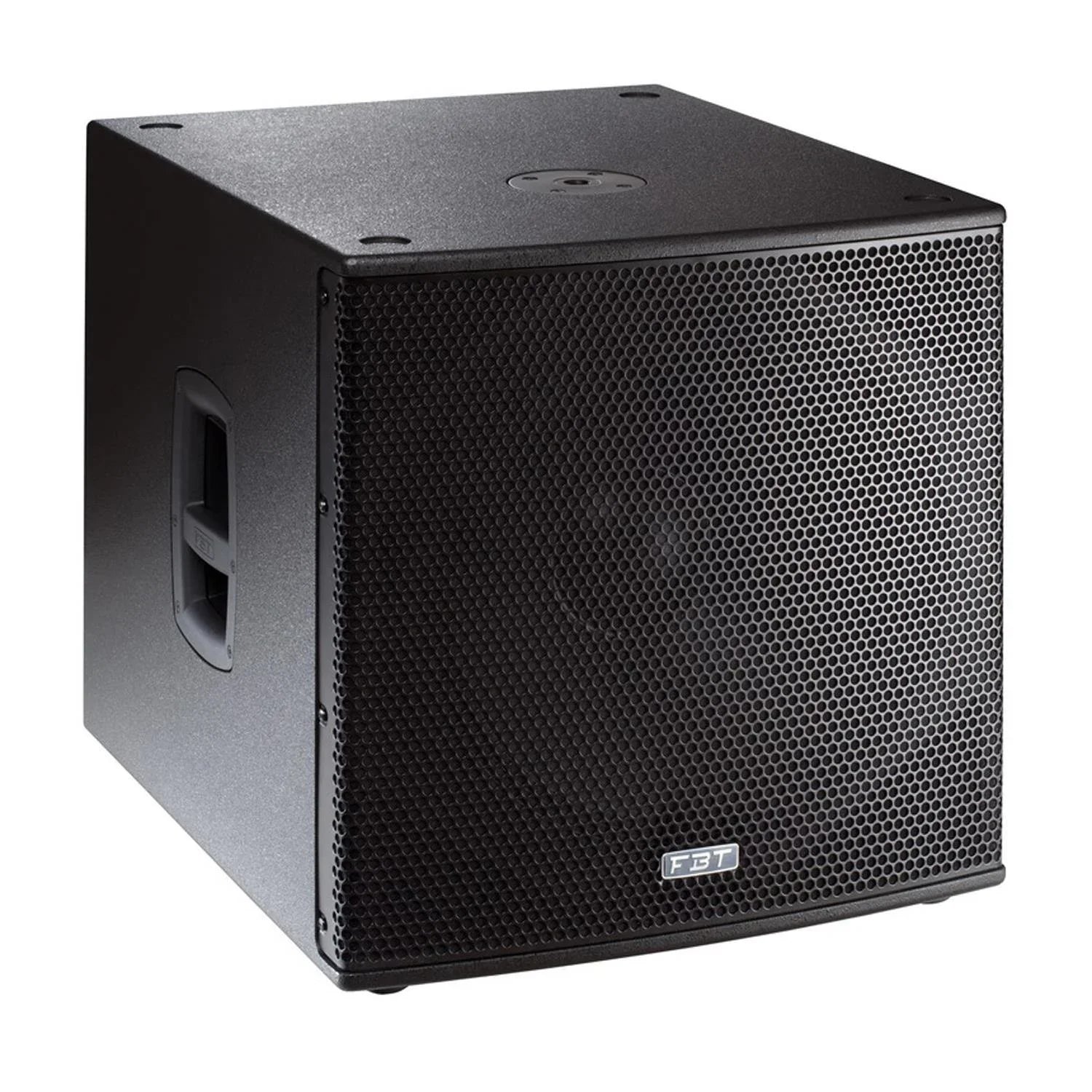

FBT SUBline 115sa 15" Active Subwoofer

The SubLine 115SA is a compact ACTIVE sub weighing just 28Kg .Yet delivers amazing punch. The built in amplifier is 700Watts at 8 Ohms it will deliver 135dB SPL from the 15", 3" Voice coil driver.incredible input flexibility with 2.1 option and powercon true 1 in and out . This great combination is in a Baltic birch plywood cabinet completely made in Italy .

The SUBline 115SA has been completely redesigned with a bass-reflex configuration, built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.

Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.

With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers. The Neutrik TRUE1 Power connection negates the need for a power switch while offering a solid locking connection.

Optional wheels,, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport

• Bass-reflex design with high SPL and punch
• 380mm (15") high excursion magnet woofer with 75mm (3") voice coil
• Frequency response from 40Hz to 140Hz
• New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
• Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

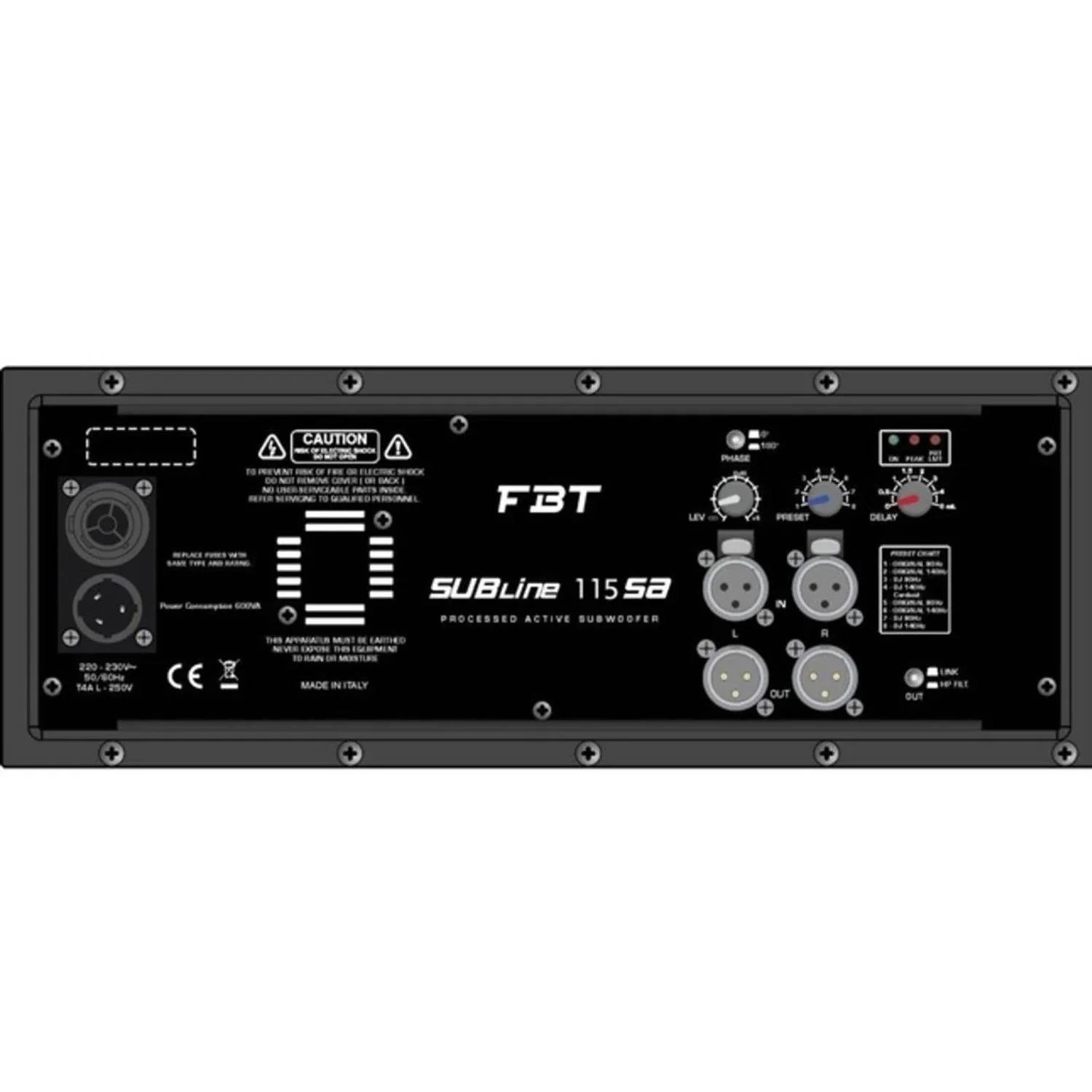

• Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch0°-180°, 3 status LED indicators
• 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles

Configuration:1 way

Built-in amplifier LF/HF:700 W RMS

Built-in amplifier peak LF/HF:1400 W

Frequency response:38Hz - 140Hz -6dB

Low Frequency woofer:15 inch

Maximum SPL cont/peak:132/135 Half-space dB

Dispersion:omnidirectional HxV

Input impedance:22 Kohm

Crossover Frequency:90 or 140Hz KHz

AC Power requirements:640 VA

Input connector:stereo XLR with loop, HP out

Power cord:6/19.7 m/ft

Net Dimension (WxHxD):500x517x570 / 19.7x20.3x22.4 mm/inch

Net Weight:28/61.7 kg/lb

Transport Dimension (WxHxD):600x617x670 / 23.6x24.3x26.4 mm/inch

Transport Weight:32/70.5 Kg/lb
