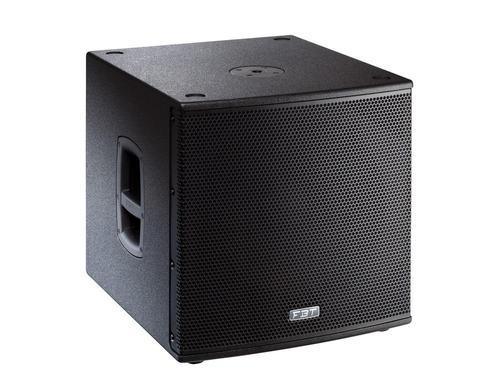

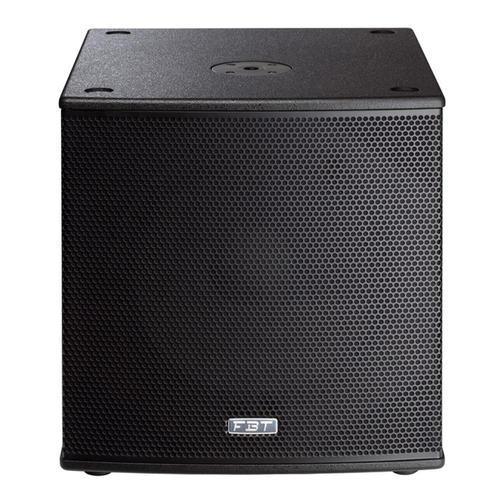

FBT SUBline 115sa 15" Active Subwoofer
Product Description
The SubLine 115SA is a compact ACTIVE sub weighing just 28Kg .Yet delivers amazing punch. The built in amplifier is 700Watts at 8 Ohms it will deliver 135dB SPL from the 15", 3" Voice coil driver.incredible input flexibility with 2.1 option and powercon true 1 in and out . This great combination is in a Baltic birch plywood cabinet completely made in Italy .
The SUBline 115SA has been completely redesigned with a bass-reflex configuration, built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.
Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers. The Neutrik TRUE1 Power connection negates the need for a power switch while offering a solid locking connection.
Optional wheels,, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
- Bass-reflex design with high SPL and punch
- 380mm (15") high excursion magnet woofer with 75mm (3") voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch0°-180°, 3 status LED indicators
- 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Configuration:1 way
Built-in amplifier LF/HF:700 W RMS
Built-in amplifier peak LF/HF:1400 W
Frequency response:38Hz - 140Hz -6dB
Low Frequency woofer:15 inch
Maximum SPL cont/peak:132/135 Half-space dB
Dispersion:omnidirectional HxV
Input impedance:22 Kohm
Crossover Frequency:90 or 140Hz KHz
AC Power requirements:640 VA
Input connector:stereo XLR with loop, HP out
Power cord:6/19.7 m/ft
Net Dimension (WxHxD):500x517x570 / 19.7x20.3x22.4 mm/inch
Net Weight:28/61.7 kg/lb
Transport Dimension (WxHxD):600x617x670 / 23.6x24.3x26.4 mm/inch
Transport Weight:32/70.5 Kg/lb
