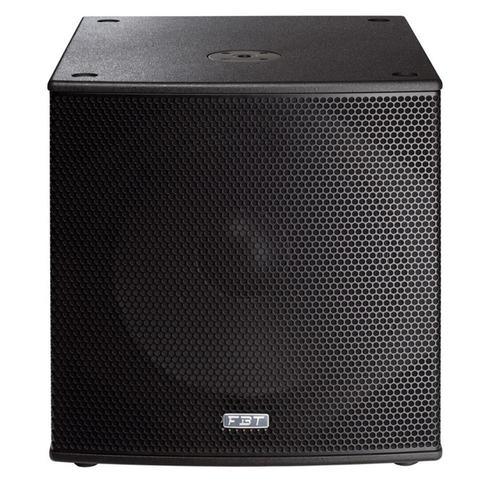

FBT SUBline 118sa 18" Active Subwoofer
Product Description
The SubLine 118SA is a compact ACTIVE sub weighing just 44.5Kg .Yet delivers amazing punch. The built in amplifier delivers an amazing 2400Watts (Peak) thats an astonishing 137dB SPL from the 18", 3" Voice coil driver with incredible input flexibility with 2.1 option and powercon TRUE1 in and out . This great combination is manufactured using baltic birch plywood cabinet, 100% made in Italy .
The SUBline 118SA has been completely redesigned with a bass-reflex configuration, built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.
Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers. The Neutrik TRUE1 Power connection negates the need for a power switch while offering a solid locking connection.
Optional wheels,, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
- Bass-reflex design subwoofer
- 460 mm (18") high excursion woofer with 75 mm (3") voice coil, custom made for FBT by B&C
- Frequency response from 33Hz - 100Hz
- 1200W RMS Class D power amplifier with switch mode power supply
- Digital Signal Processor with 6 presets, 4 equalisation with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m

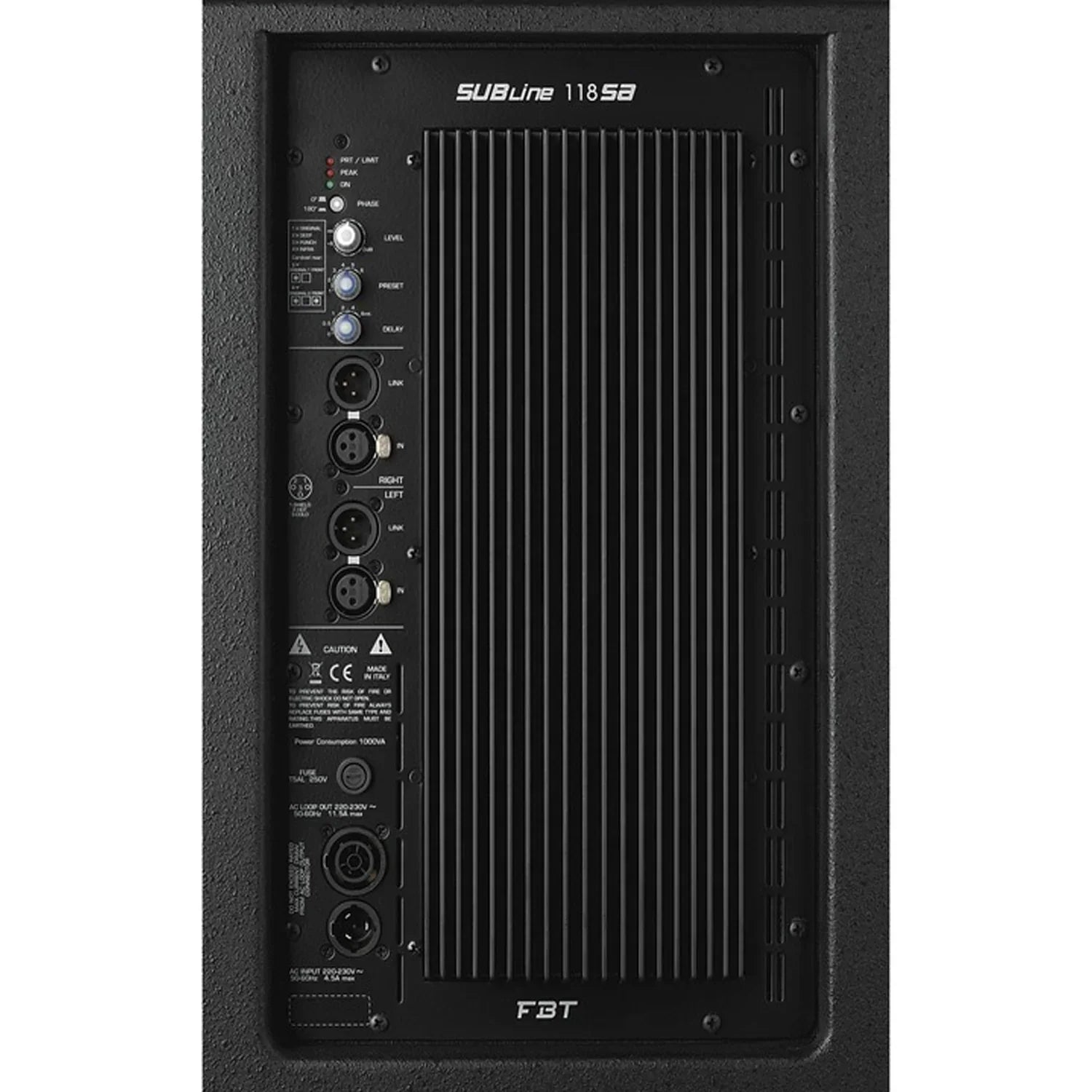

- Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminium ergonomic FBT handles
Configuration:1 way
Built-in amplifier LF/HF:1200 W RMS
Built-in amplifier peak LF/HF:2400 W
Frequency response:33Hz-100Hz -6dB
Low Frequency woofer:18 - 3 coil inch
Maximum SPL cont/peak:134/137 half-space dB
Dispersion:omnidirectional HxV
Input impedance:22 Kohm
Crossover Frequency:100Hz KHz
AC Power requirements:800 VA
Input connector:stereo XLR with loop
Power cord:7/16.4 m/ft
Net Dimension (WxHxD):555x572x666 / 21.8x22.5x26.2 mm/inch
Net Weight:44.5/98.1 kg/lb
Transport Dimension (WxHxD):800x642x800 / 31.5x25.3x31.5 mm/inch
Transport Weight:54.5/120.1 Kg/lb
