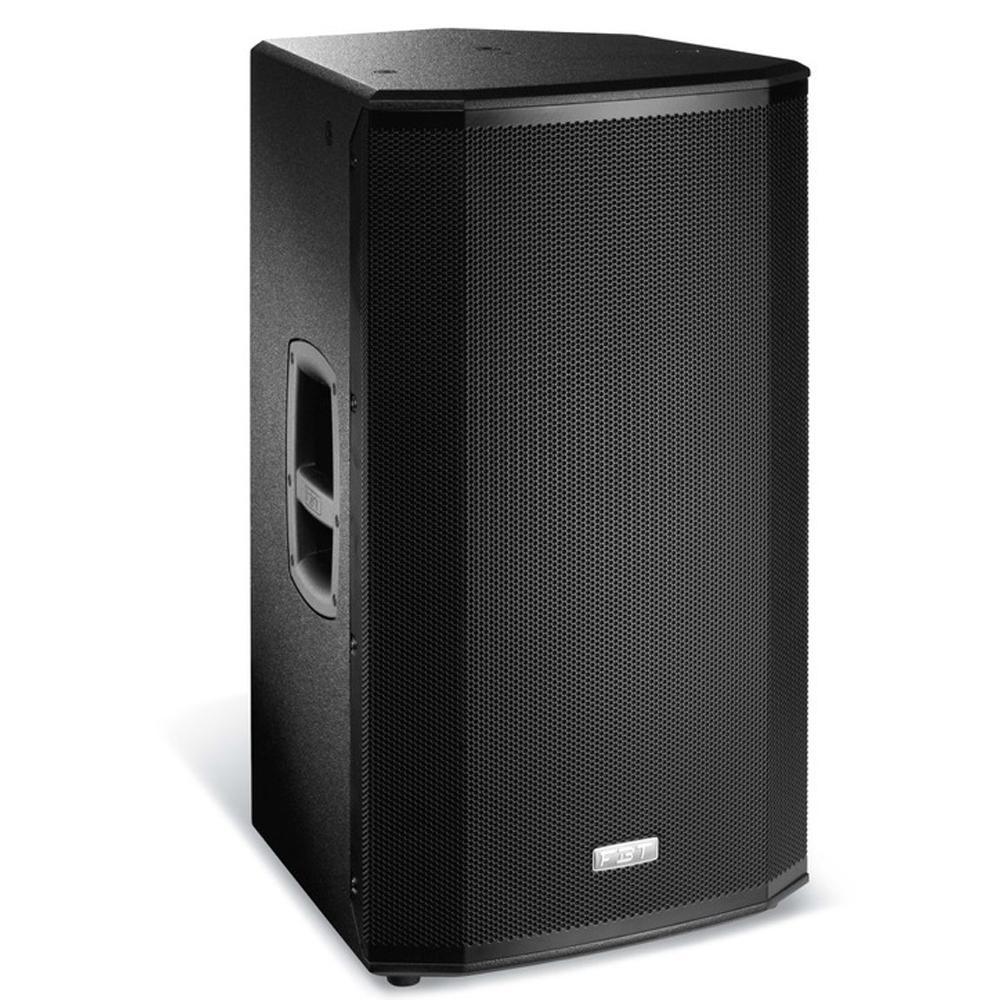

FBT Ventis 115A Active Speaker

SKU: 002171

Price:
Sale price£1,015
Stock:
In stock

Description

Ventis 115A is part of the Ventis range which are ideal for portable performance or fixed installation. This Active speaker includes an 15" woofer and a 1" exit 1.7"VC compression driver .The built in DSP LCD screened Amp module is 700W + 200W Delivering 133dB SPL. Features a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available.

The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

  • ORIGINAL / LIVE The renowned, smooth FBT sound
  • VOCAL A special EQ setting to maximise speech intelligibility
  • DJ Designed to keep the energy high and your audience dancing
  • TOURING The reliability and the roar of the industry’s most popular touring systems
  • LOUDNESS The ultimate preset for listening at a medium or low volume
  • WARM A special setting to emphasise full-bodied, low-mid frequencies.

Features

  • 2-way, bi-amplified, bass reflex design
  • Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
  • Digital Signal Processor with graphic display
  • 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
  • High efficiency switch mode power supply
  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 380mm (15”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT
  • 25mm (1”) exit throat B&C HF compression driver with 44mm (1.7”) voice coil
  • Frequency response from 42Hz to 20KHz
  • 80°H x 50°V Constant Directivity rotatable Horn
  • 6 x M10 suspension points, wall bracket mount thread, 35 mm (1 3/8”) top-hat speaker stand socket, two aluminium handles
  • 45° monitor taper
  • Adjustable delay between 0 - 10m

Specification

Configuration: 2 Way
Frequency response: 42Hz - 20kHz -6dB
Low frequency woofer: 15
High frequency driver: 1
Input impedance: 22kOhm
Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD): 427 x 765 x 420mm
Net Weight: 25kg
Transport Dimension (WxHxD): 600 x 865 x 520mm
Transport Weight: 29kg
AC Power requirements: 640VA
Power cord: 5m
Built in amplifier: 900w (700w LF + 200w HF)
Built in amplifier peak: 1800w (1400w LF + 400w HF)
Maximum SPL continuous/peak: 127/133dB
Dispersion (HxV): 80? x 50? rotatable
