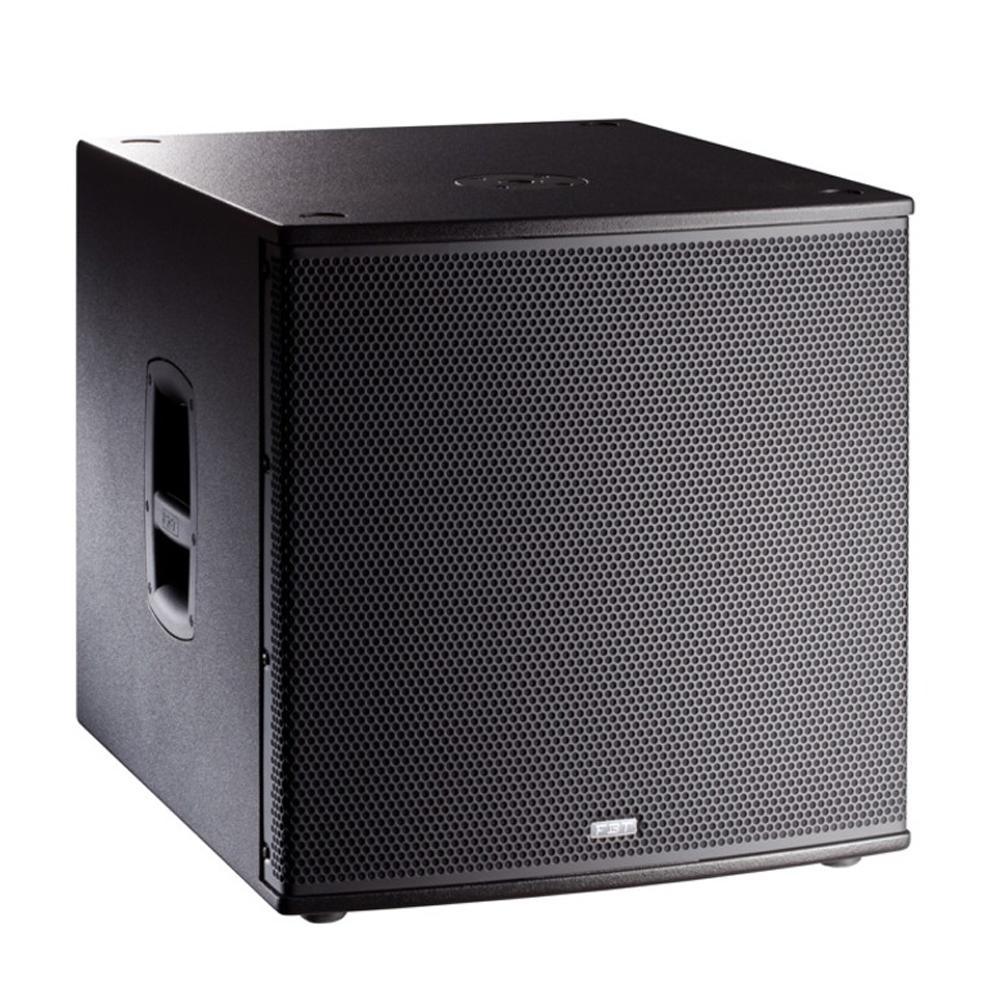

FBT Vertus CLA 118SA Active Subwoofer

FBTSKU: 002184

Price:
Sale price£1,415
In stock

Description

The Vertus CLA 118SA is specifically designed to work with the 206 and 406 Vertus Column Line Array series. This Active 18” B&C high excursion woofer with 3” voice coil is driven by the built in 1200W RMS amplifier delivering 138 dB SPL.This great combination is in a 15mm Baltic birch plywood cabinet completely made in Italy .

The CLA 118SA is a subwoofer in birch plywood with a 460mm woofer from B&C in a bass reflex port with an extensive laminar airflow, minimizing turbulence and power compression. The Class-D, switching power amplifier module is constructed in die-cast aluminum with natural convection, and is rated at 1200W. Onboard DSP also offers functions such as filtering, equalization and protection.

When you need to extend the performance of the CLA406A, especially in live applications, the CLA118SA acts as a support and base for the CLA406A column that can be applied, via optional hardware, with M20 points positioned on the top of the sub.

The CLA118Sa is also modular and can be stacked thanks to special milling, increasing the SPL and raising the base of CLA406A.
  • Active subwoofer in bass-reflex design
  • 460mm (18”) B&C high excursion woofer with 75mm (3”) voice coil
  • Frequency response from 33Hz to 100Hz
  • 1200W RMS Class D power amplifier with swittching mode power supply
  • Processor DSP with 8 presets, cardioid configuration, delay
  • Control Panel with XLR input and link, volume, presets, delay, phase 0 ° -180 °, ground-lift
  • Neutrik powerCON True1 power IN and LINK connectors
  • 15mm (5/8”) birch plywood with scratch-resistant coating Stackable
  • M20 (20mm) top mount speaker stand socket, two diecast aluminium carrying handles with rubber inserts
  • Optional 4 swivel-mount casters 80mm (3.15”) on request
  • Suitable for low frequency extension and reinforcement of the CLA406A array, especially for live performance
Configuration: Subwoofer
Frequency response: 33Hz - 120Hz
Low frequency woofer: 18" (3" VC)
Maximum SPL cont/peak: 134 / 138 dB SPL
Dispersion: Omnidirectional
Input impedance: 22kOhm
Input connector: XLR with Link Out
Net Dimension (WxHxD): 550 x 550 x 660mm
Net Weight: 40kg
Transport Dimension (WxHxD): 700 x 700 x 800mm
Transport Weight: 50kg
AC Power requirements: 640VA
Built-in amplifier LF/HF: 1200w
Built-in amplifier peak LF/HF: 2400w
Power cord: 5m PowerCon True1
