FBT X 5000 X-Lite 115a & X-Sub 118sa Speaker Package with Covers
Product Description

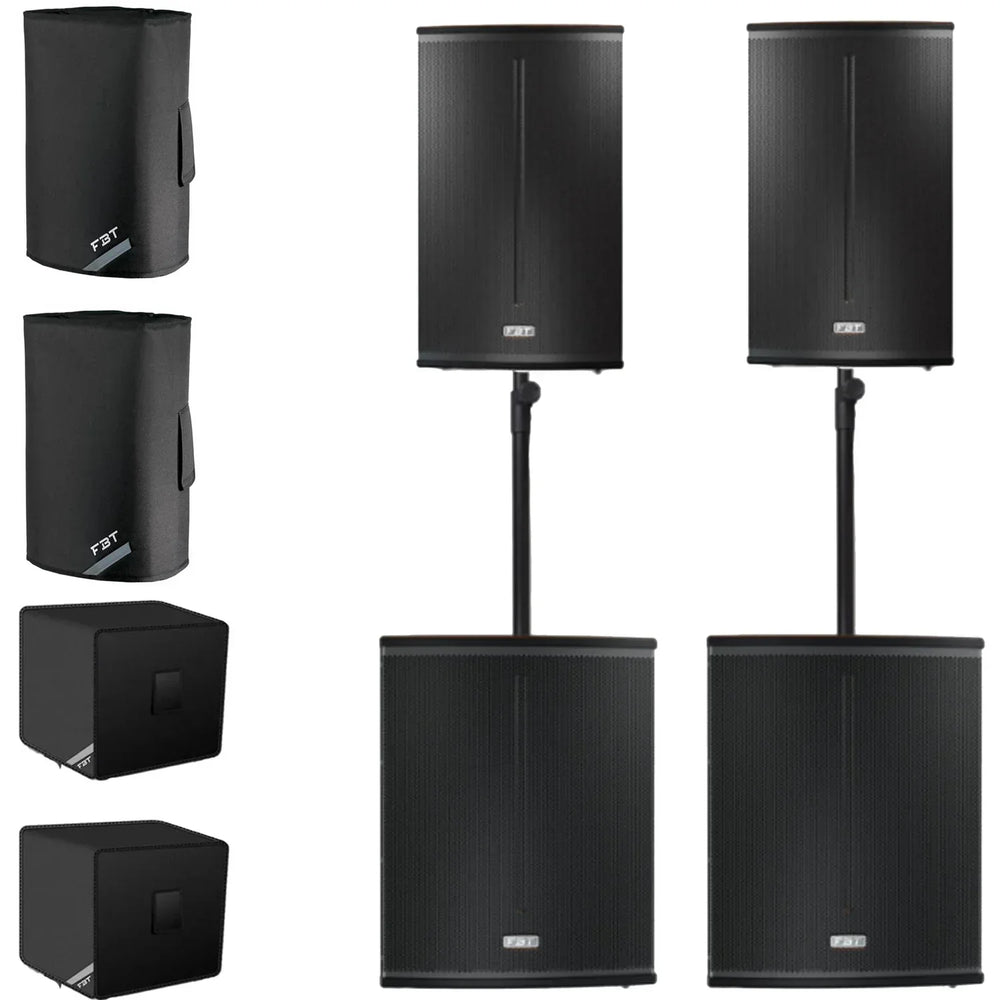

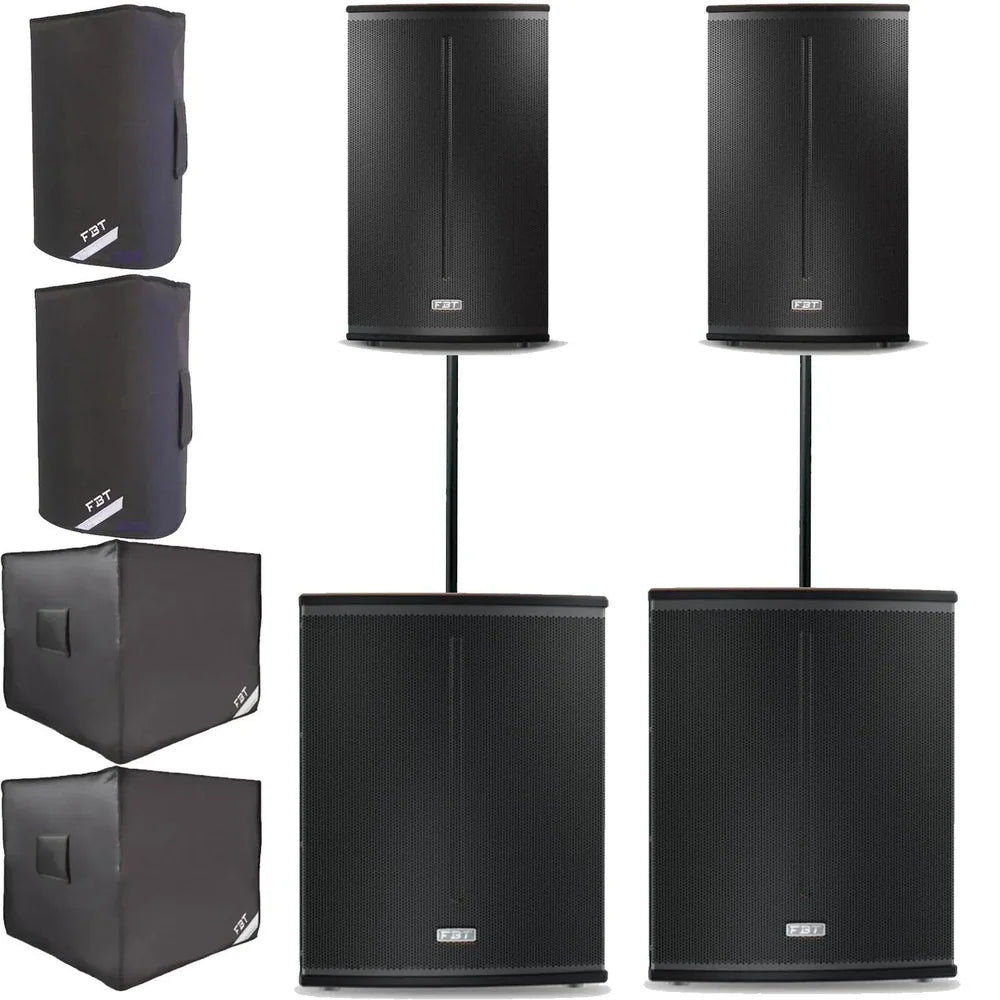

This bundle includes:
2 x FBT X-LIte 115sa 15" Active Speakers
2 x FBT X-SUB 118SA 18" Active Subwoofers
2 x Stagecore M20 Speaker Poles
2 x XL-C 15 X-Lite Covers
2 x X 118 Sub Covers
FBT X-LIte 115sa 15" Active Speakers

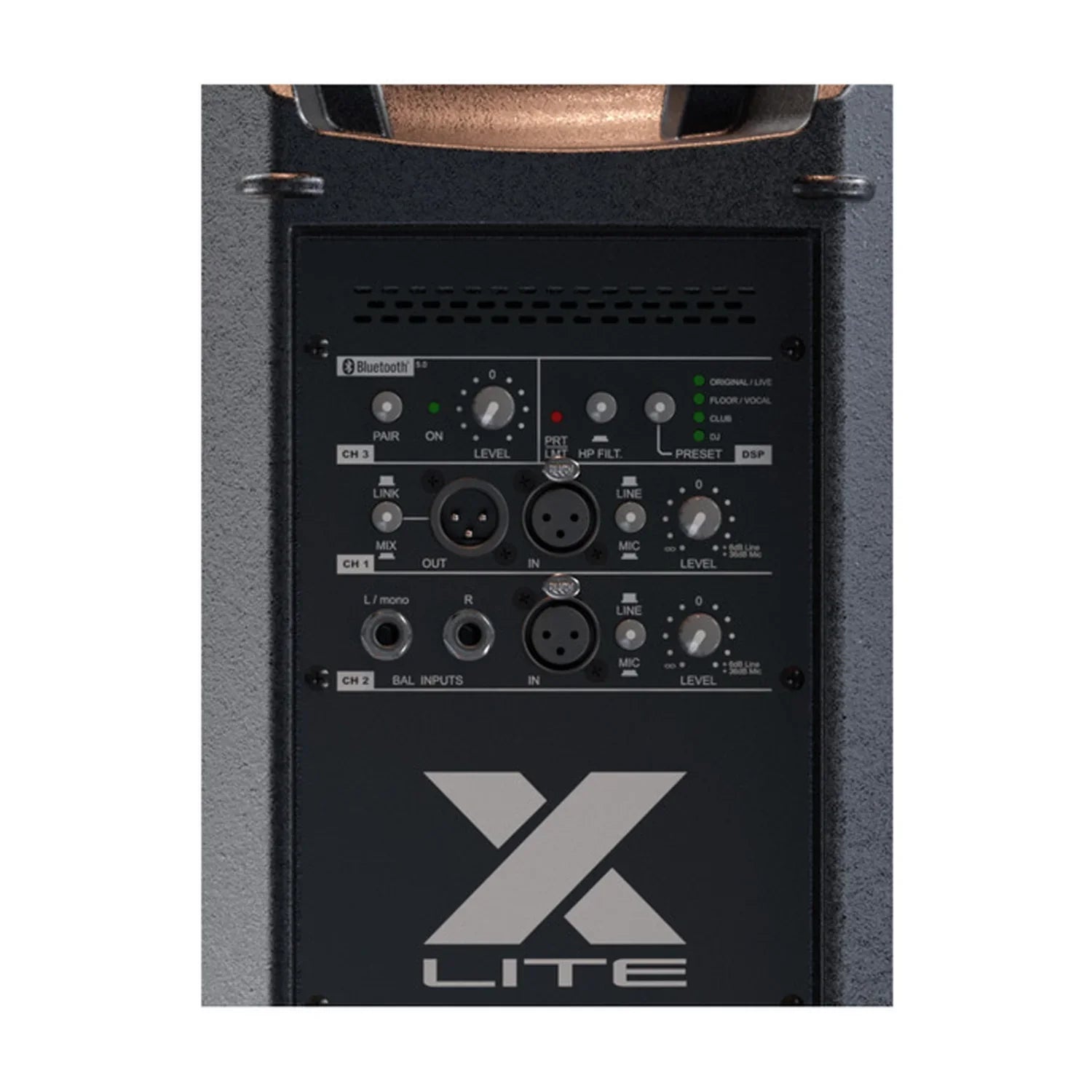

The FBT X-LITE 115A is two way design incorporating a 15” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 42Hz - 20kHz the FBT X-LITE 115A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 130dB. The bi-amplified FBT X-LITE 115A active speaker feature a 1200W low frequency amp and a 300W high frequency amp. The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two XLR inputs, stereo input, XLR output with ch1 or mix link selector, hp filter, two mic-line selectors, DSP preset selector, Bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT X-LITE 115A speaker to be surface mounted on walls or ceilings.
The asymmetrical shape of the FBT XLITE 115A cabinet also allows use as a powered floor stage monitor.
A standard 1.38” speaker stand socket allows the FBT X-LITE 115A to be mounted on speaker stand.
- 2-way bi-amplified system in bass reflex
- Polypropylene molded enclosure
- Woofer custom 15” (LF) / 2.5” voice coil
- 1” throat / 1,4” voice coil HF compression driver
- 1200/300W built-in amplifier (LF/HF)
- Bluetooth 5.0
- 3-channels mixer
- 4 DSP presets
- 30° or 45° monitor taper
- Universal switching mode power supply 100-240Vac
- M10 rigging points
Configuration: 2 way
Built-in Amplifier LF/HF: 1200W 300W
Frequency Response: 42Hz - 20kHz
Low Frequency Woofer: 15" (2.3" coil)
High Frequency Driver: 1" (1.4" coil)
Maximum SPL Cont/Peak: 125/130dB
Dispersion: 90° x 60° (HxV)
Input Connector: XLR In/Thru, 2x RCA, 2x 6.35mm Jack
Power Cord: 3mt IEC
Net Dimension (WXHXD): 433 x 706,5 x 400 mm
Net Weight: 19 KG
Transport Dimension (WXHXD): 500 x 770 x 470 mm
Transport Weight: 21 KG

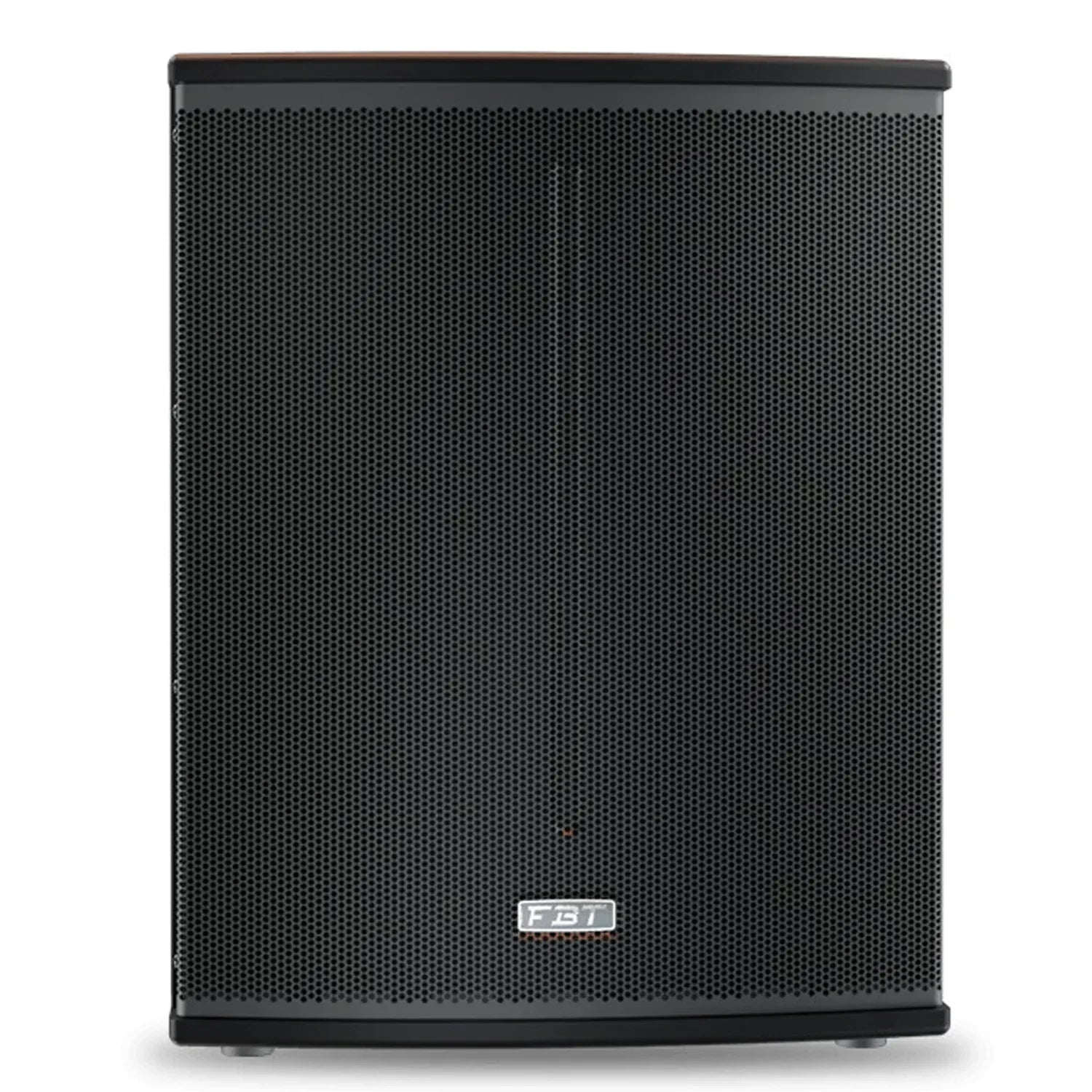

FBT X-SUB 118SA 18" Active Subwoofers
The FBT X-SUB 118SA , 1 x 18" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 118SA provides the following performance criteria: frequency response of 38Hz to 120Hz @ -6dB, maximum SPL of 136 dB peak, 1200W Class D amplifier.
The FBT X-SUB 118SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 118SA feature 0,70" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design handles and four optional 100mm/3,93" transport wheels.

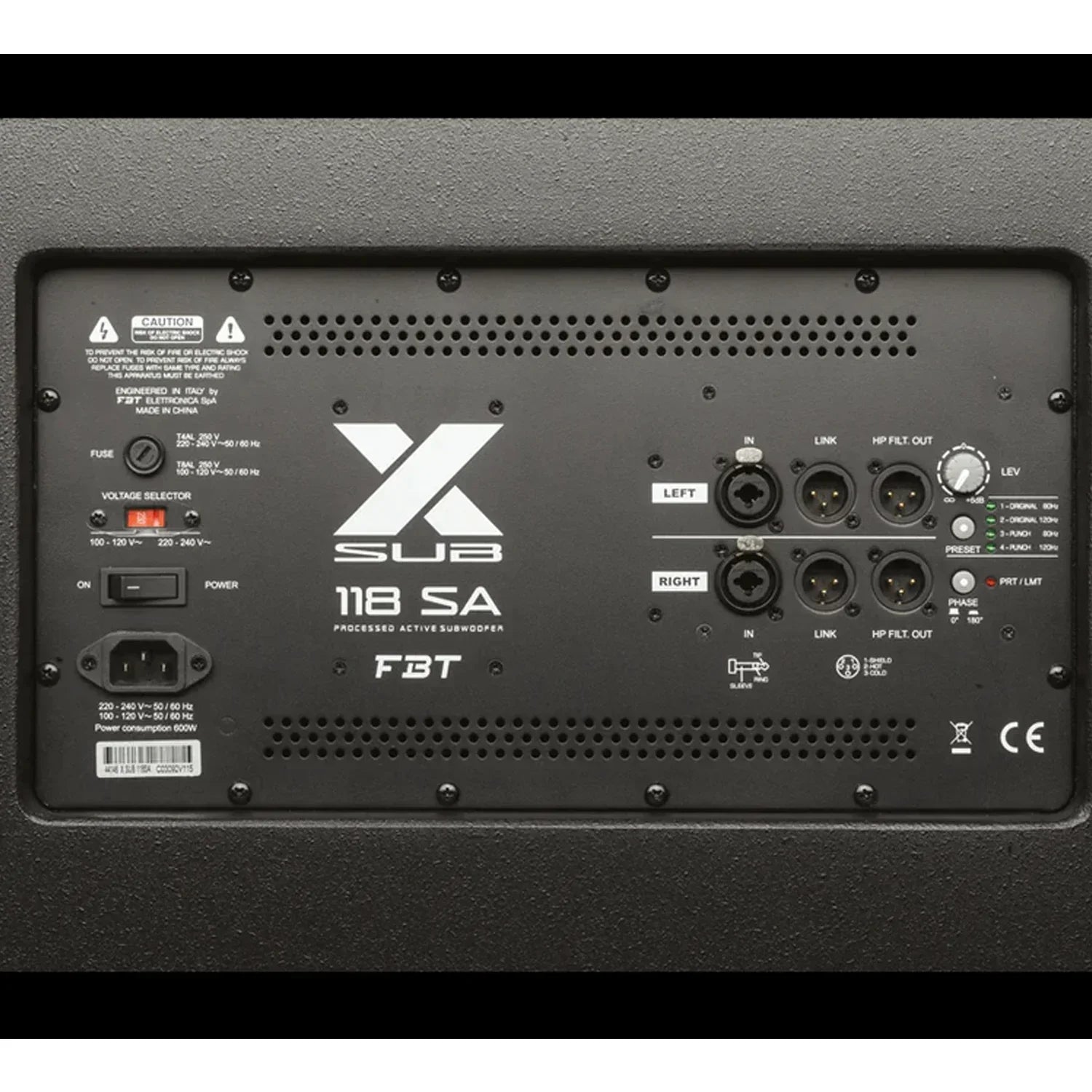

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.
- Active subwoofer
- 18mm / 0,70" birch plywood cabinet
- 18" woofer / 3" voice coil
- 1200W RMS Class D power amplifier
- 4 DSP presets
- Frequency response 38Hz - 120Hz
- M20 top mount speaker stand socket Optional 100mm / 3,93" transport wheels
Configuration: Bass Reflex
Frequency response: 38Hz - 120Hz (@-6dB)
Low frequency woofer: 18" / 3" Voice Coil
Maximum SPL cont/peak: 136dB Half Space
Dispersion: Omnidirectional
Input impedance: 22 kOhm
Input connector: XLR With Link
Net Weight: 39.2 KG
Transport Weight: 45 KG
