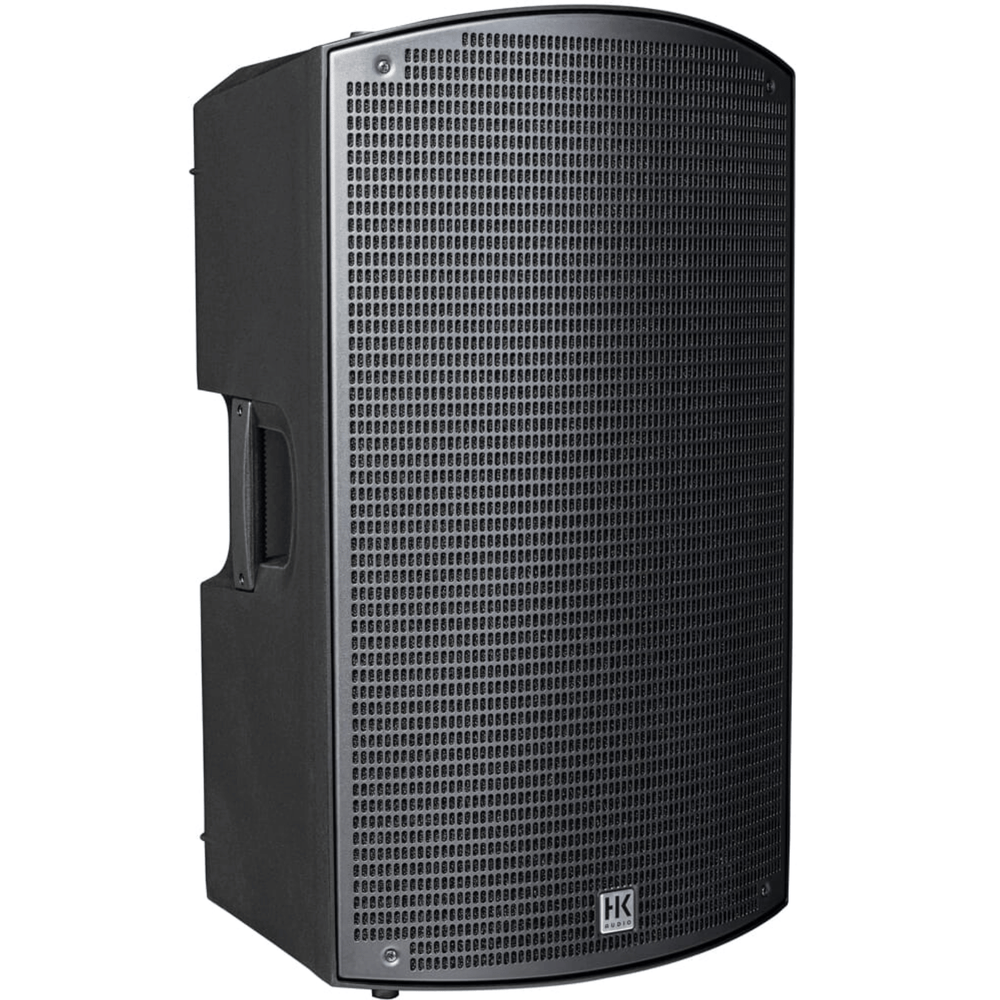

HK Audio Sonar 115 Xi 1200w 15" Active Speaker
Product Description
The SONAR 115 Xi is a powered, state-of-the-art loudspeaker that provides top sound, whether as a full-range speaker, as a stage monitor or as a satellite in combination with a subwoofer. The 15" woofer and meticulous HK AUDIO acoustic engineering deliver a powerful bass experience, even if you don't want to use a separate subwoofer.
SONAR 115 Xi offers three input channels: two for microphone or line signals, plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR app (for iOS and Android), all functions can also be controlled remotely for added convenience.
- Active, 2-way 15" Loudspeaker
- Peak output 1200w (600w continuous)
- Bluetooth, includes iOS & Android app
- DSP functions for 3-band EQ, Low Cut Filter, Delay and more
- Max. SPL 133 dBb
| Concept | Active 2-way loudspeaker |
| Cabinet principle | Bass reflex |
| Max. SPL peak3 | 130 dB |
| Max. SPL calculated | 133 dB |
| Frequency range -6 dB | 56 Hz - 18 kHz |
| Frequency range -10 dB | 50 Hz - 20 kHz |
| Dispersion angle -6 dB (horizontal x vertical) | 90° x 60° |
| Mid/high frequency | 1 x 15" cone speaker |
| High frequency | 1 x 1" compression driver |
| Horn | Constant directivity horn |
| Analog input | 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack |
| Mix output | 1 x Mix Out XLR symm. |
| Power amplifier | Class AB + D |
| Power amplifier output peak | 1200 W |
| Power consumption | 0.6 A / 220-240 V AC 1.2 A / 100-120 V AC |
| Speaker protection | Thermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter |
| Display | 1.83" color display |
| DSP functions | Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master |
| Remote app | HK Audio SONAR REMOTE (iOS, Android) |
| Filter presets | Live/DJ/Monitor |
| Bluetooth | Yes (5.0), TWS |
| Cabinet features/rigging | pole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35° |
| Carrying handles | 2 x SingleGrip |
| Cabinet material | plastic |
| Color | Jet black (RAL 9005) |
| Front grille | Steel front grille with anticorrosive coating and backed acoustic foam |
| Dimensions (W x H x D), metric | 42.5 x 72.9 x 41.5 cm |
| Dimensions (W x H x D), imperial | 16-23/32 x 28-11/16 x 16-11/32 inch |
| Weight, metric | 19.5 kg |
| Weight, imperial | 43.0 lbs |
