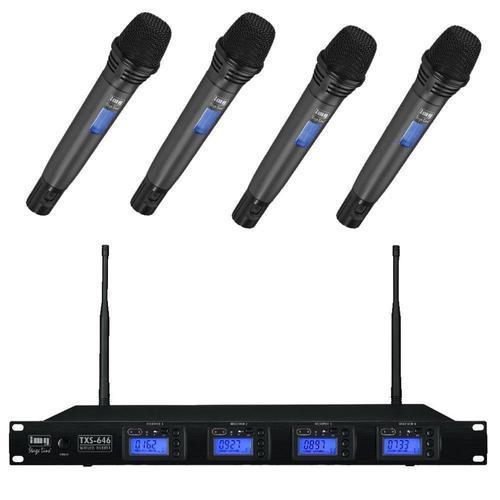

IMG Stageline TXS646 Quad Mic System Handheld

4-channel multifrequency receiver unit,

with UHF PLL technology.

• 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
• ACT function for transmitting selected frequency to pocket transmitter TXS-606LT, TXS-606HSE or hand-held microphone TXS-606HT via infrared signal
• Auto-scan
• True diversity system with removable antennas (BNC connection)
• Volume and squelch controls for each channel
• Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for indicating audio signal
• XLR output for each channel, bal.
• 6.3 mm output for mixed signal
• 8 V supply voltage for active antennas or antenna amplifier (e.g. TXS-875B) is available
• Robust metal housing
• Supplied with power supply
• 482 mm (19") rack installation, 1 RS

Hand-held microphone with integrated multifrequency transmitter,

with UHF PLL technology.

• Dynamic microphone cartridge, cardioid polar pattern
• 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with receivers TXS-606, TXS-626 or TXS-646 via ACT function
• Adjustable sensitivity
• Switchable transmitting power (high: 25 mW/low: 2.5 mW)
• LCD for indicating group/channel, audio level and battery status
• Power supply via 2 x 1.5 V battery AA size (not supplied)
