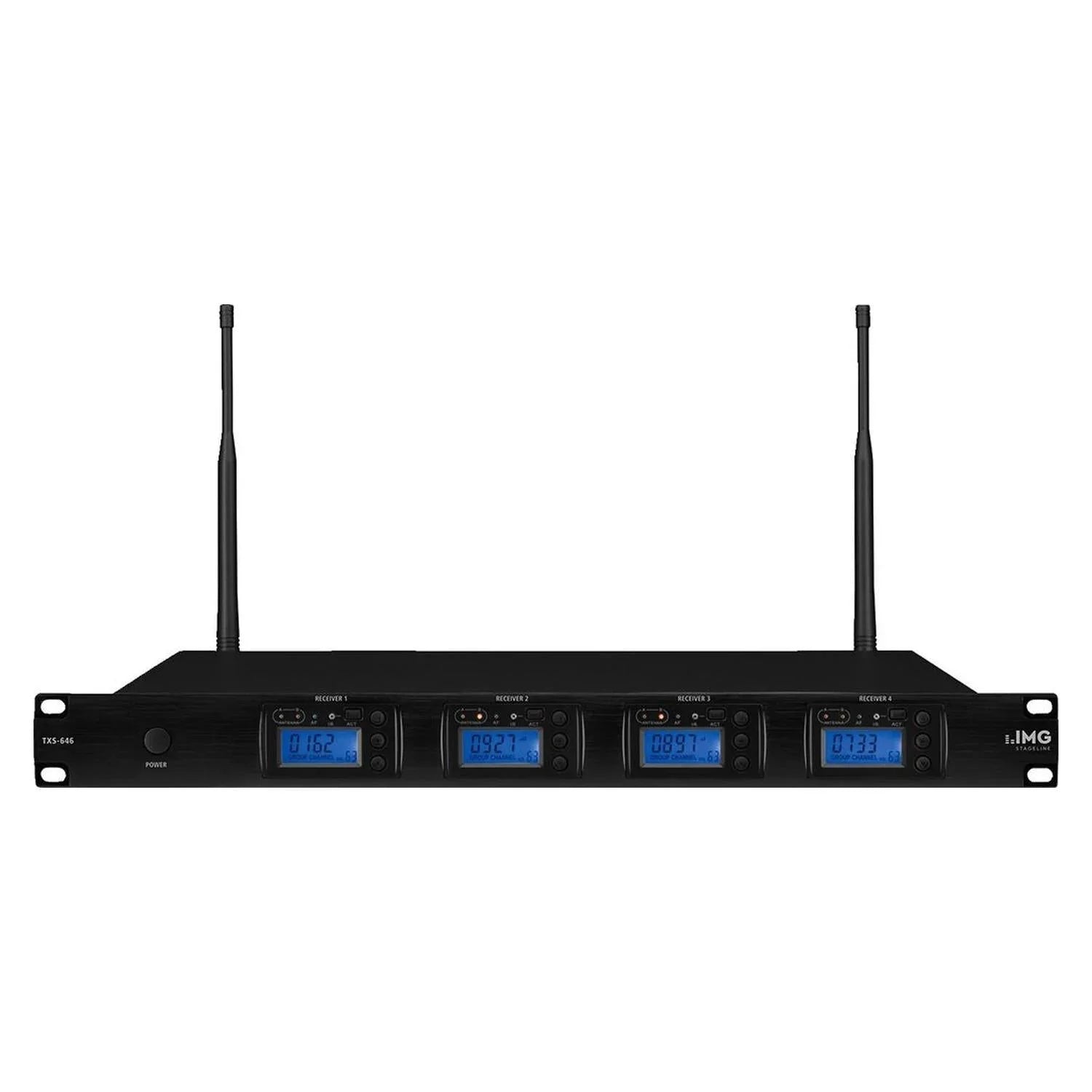

IMG Stageline TXS-646 Receiver

DY Pro AudioSKU: 002149

Price:
Sale price£329
In stock

Description

4-channel multifrequency receiver unit, with UHF PLL technology.

  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
  • ACT function for transmitting selected frequency to pocket transmitter TXS-606LT, TXS-606HSE or hand-held microphone TXS-606HT via infrared signal
  • Autoscan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls for each channel
  • Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for indicating audio signal
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • Robust metal housing
  • Supplied with power supply
  • 482 mm (19") rack installation, 1 RS
General information -
Description receiver unit
Carrier frequency range 672.000-696.975 MHz
Audio frequency range 30-18,000 Hz
Channels 4
THD < 0.5%
Dynamic range 100 dB
RF S/N ratio 105 dB
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Specifications transmitter -
Transmitting power -
Operating range -
Power supply transmitter -
Width transmitter -
Height transmitter -
Depth transmitter -
Weight transmitter -
Connections transmitter -
Specifications receiver -
Audio signal receiver 350¬†mV/600¬†Ω (jack)

25¬†mV/600¬†Ω (XLR, bal.)

Power supply receiver via encl.

plug-in power supply

Width receiver 482 mm
Height receiver 45 mm
Depth receiver 310 mm
Weight receiver 2.9 kg
Connections receiver 4 x XLR, bal.,

1 x 6.3 mm jack, unbal.

Multifrequency 1
