50m x Van Damme Grey Pro Grade Classic XKE 1 Pair Install Cable
Brand: Van Damme
SKU: 268-066-080-50
£45.99
£48.04
SALE
In Stock (20+)
Quantity:
Secure Payment
We accept all major payment methods including:
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.
Product Description
This bundle includes:

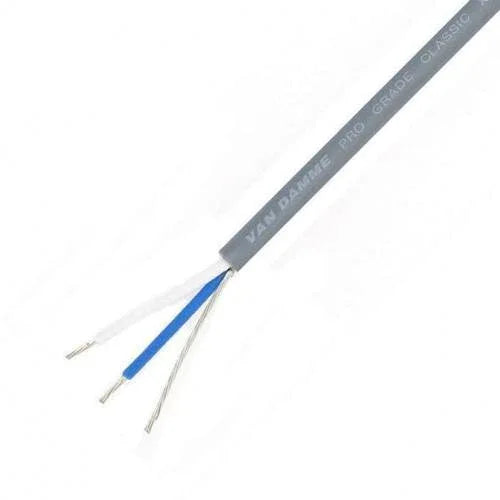

50m x Van Damme Grey Pro Grade Classic XKE Install Cable
Van Damme Pro Grade Classic XKE 1 pair install cable is a foil screened twisted pair for installation and rack wiring. Tough, flexible and very easy to prepare as the foil screen is bonded to the outer jacket, this cable type is also useful for 'bodge leads', adaptor cables and multipin breakouts where individual tails need to be colour identified or are to be permanently installed.
Applications
- For mic and line level analogue balanced audio
- Internal rack and patch panel wiring looms
- Installations not requiring LSZH jacket materials
- Adaptor leads and multipin breakouts
Application notes
- Foil screen bonded to the outer jacket for a one strip operation when preparing
- Available in 10 colours for application or length colour coding
- 24AWG tinned drain wire in close contact to the aluminium/polyester FEF screen
- Combination of silver plated and plain ultrapure oxygen free copper conductors for unsurpassed sound quality
| Cable Brand | Van Damme |
|---|---|
| Cable Conductor | Bare silver plated UPOFC wire, Stranding 1 x 0.20mm. Material Bare UPOFC wire Stranding 6 x 0.20mm |
| Cable Resistance | Conductor Ohm/Km <85 |
| Cable Capacitance | Core to core 50 pF/m nominal |
| Cable Screening | Aluminium/polyester foil |
| Overall Diameter | 3.50mm ±0.10 |
| Cable Jacket | Flexible PVC/Neoprene composite |
