100m x Van Damme Black Pro Grade Classic XKE 1 Pair Install Cable
Van Damme
SKU: 268-001-000-100
£79.99
£96.04
Save £16.05
✓
In Stock (15+ Available)
Quantity:
Checkout Securely
We accept all major payment methods
Store Pickup
Pick up is available. Check with store to see product availability before coming over.
100%
Product Description
This bundle includes:

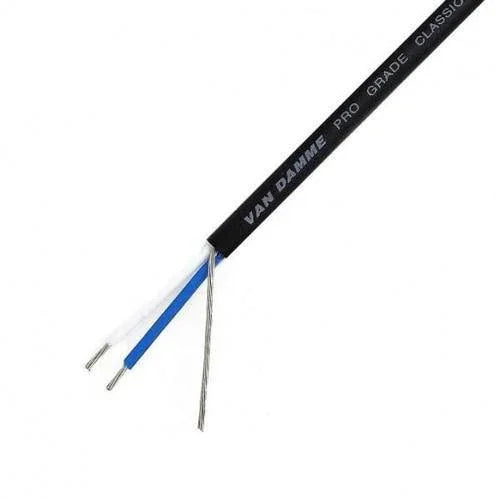

100m x Van Damme Black Pro Grade Classic XKE Install Cable
Van Damme Pro Grade Classic XKE 1 pair install cable is a foil screened twisted pair for installation and rack wiring. Tough, flexible and very easy to prepare as the foil screen is bonded to the outer jacket, this cable type is also useful for 'bodge leads', adaptor cables and multipin breakouts where individual tails need to be colour identified or are to be permanently installed.
Applications
- For mic and line level analogue balanced audio
- Internal rack and patch panel wiring looms
- Installations not requiring LSZH jacket materials
- Adaptor leads and multipin breakouts
Application notes
- Foil screen bonded to the outer jacket for a one strip operation when preparing
- Available in 10 colours for application or length colour coding
- 24AWG tinned drain wire in close contact to the aluminium/polyester FEF screen
- Combination of silver plated and plain ultrapure oxygen free copper conductors for unsurpassed sound quality
| Cable Brand | Van Damme |
|---|---|
| Cable Conductor | Bare silver plated UPOFC wire, Stranding 1 x 0.20mm. Material Bare UPOFC wire Stranding 6 x 0.20mm |
| Cable Resistance | Conductor Ohm/Km <85 |
| Cable Capacitance | Core to core 50 pF/m nominal |
| Cable Screening | Aluminium/polyester foil |
| Overall Diameter | 3.50mm ±0.10 |
| Cable Jacket | Flexible PVC/Neoprene composite |
Warranty
12 month manufacturer warranty included on all items.
Delivery
Free UK Delivery on all orders, Next working day delivery is available at checkout at £7.99
Returns
If you would like to return your item, you can do so within 14 days of receipt of your item
