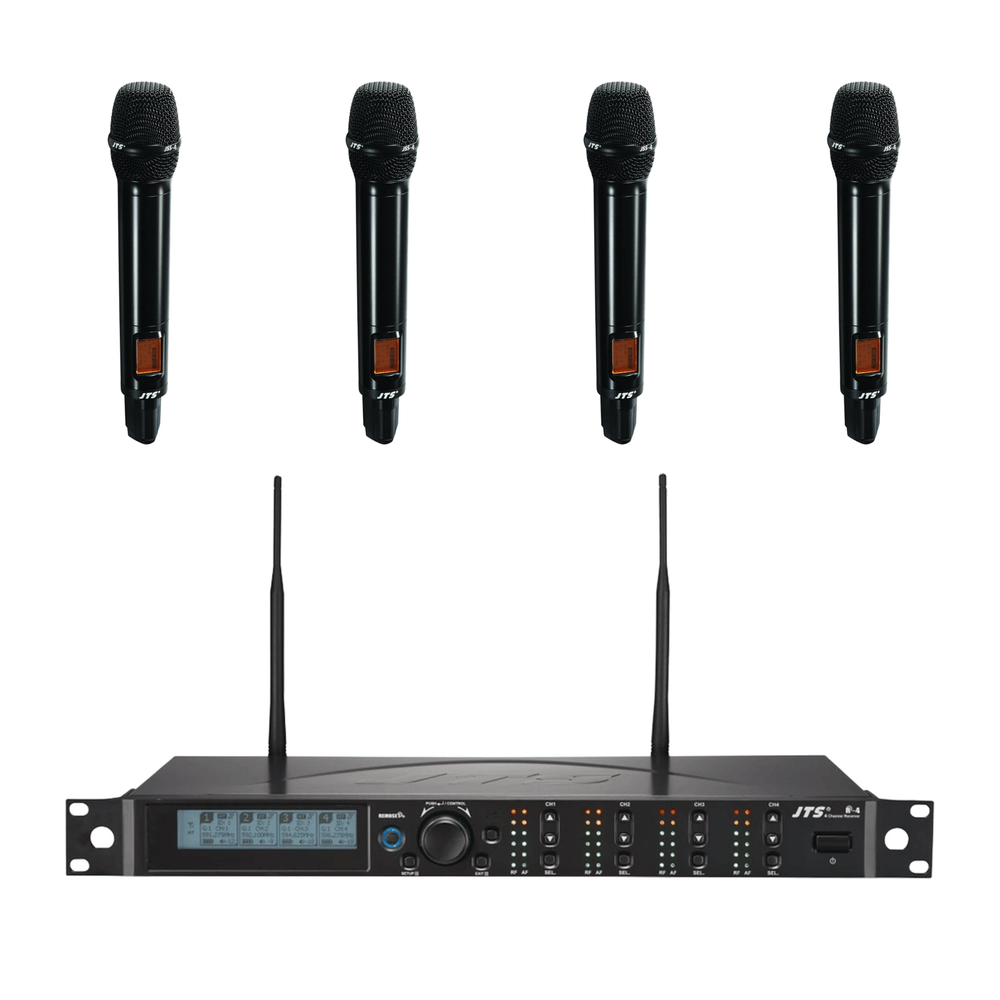

JTS R4 4 Way Handheld Wireless Microphone Bundle
Product Description
This Bundle Includes:
1 x JTS R-4 Quad Channel Wireless Receiver ( 606.5 - 638MHz)
4 x JTS JSS-4B UHF PLL Dynamic Handheld Transmitter (SAM-8 Capsule)
The JTS R-4 is our newest generation of quad multi-channel wireless technology. It features 4 channels within a 1U, 19" rack mount chassis.
The system is designed with JTS newest generation of wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel receiver in a 1U, 19” rack mount chassis. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.
JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.
The JSS-4B handheld transmitter is designed to be used with the R-4 4 channel receiver. It is fitted with our legendary SAM-8WLN dynamic capsule which gives very full and rich audio with an excellent pick up pattern. As with all JTS microphones, feedback rejection is class leading.
JTS R-4 Quad Channel Wireless Receiver ( 606.5 - 638MHz)
The JTS R-4 is our newest generation of quad multi-channel wireless technology.
It features 4 channels within a 1U, 19" rack mount chassis.
The system is designed with JTS newest generation of wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel receiver in a 1U, 19” rack mount chassis. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.
JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance
Net Dimension (WxHxD) 212.3mm x 38.3mm x 144mm
Frequency Preparation PLL Synthesized Control
S/N Ratio >105dB
Display Contents Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Output Level -12dB
Squelch Pilot Tone & Noise Mute
Operation Voltage 12V 1A
Output Connector 4 independent XLR outputs, and 1 Ôø?6.3mm and 1 XLR for mixed output
Carrier Frequency Range Options of 606.5 - 638MHz
AF Output Impedance 600©
JTS JSS-4B UHF PLL Dynamic Handheld Transmitter (SAM-8 Capsule)
The JSS-4B handheld transmitter is designed to be used with the R-4 4 channel receiver. It is fitted with our legendary SAM-8WLN dynamic capsule which gives very full and rich audio with an excellent pick up pattern. As with all JTS microphones, feedback rejection is class leading.
*Available in 606.5 - 638 MHz
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various capsules preferred miking is assured.
* The JSS-4B is a handheld microphone fitted with a JTS SAM-8WLN Dynamic Capsule.
NEWEST FEATURE:
* It is designed with a slot-in charging feature when fitted with two AA NiMH rechargeable batteries
