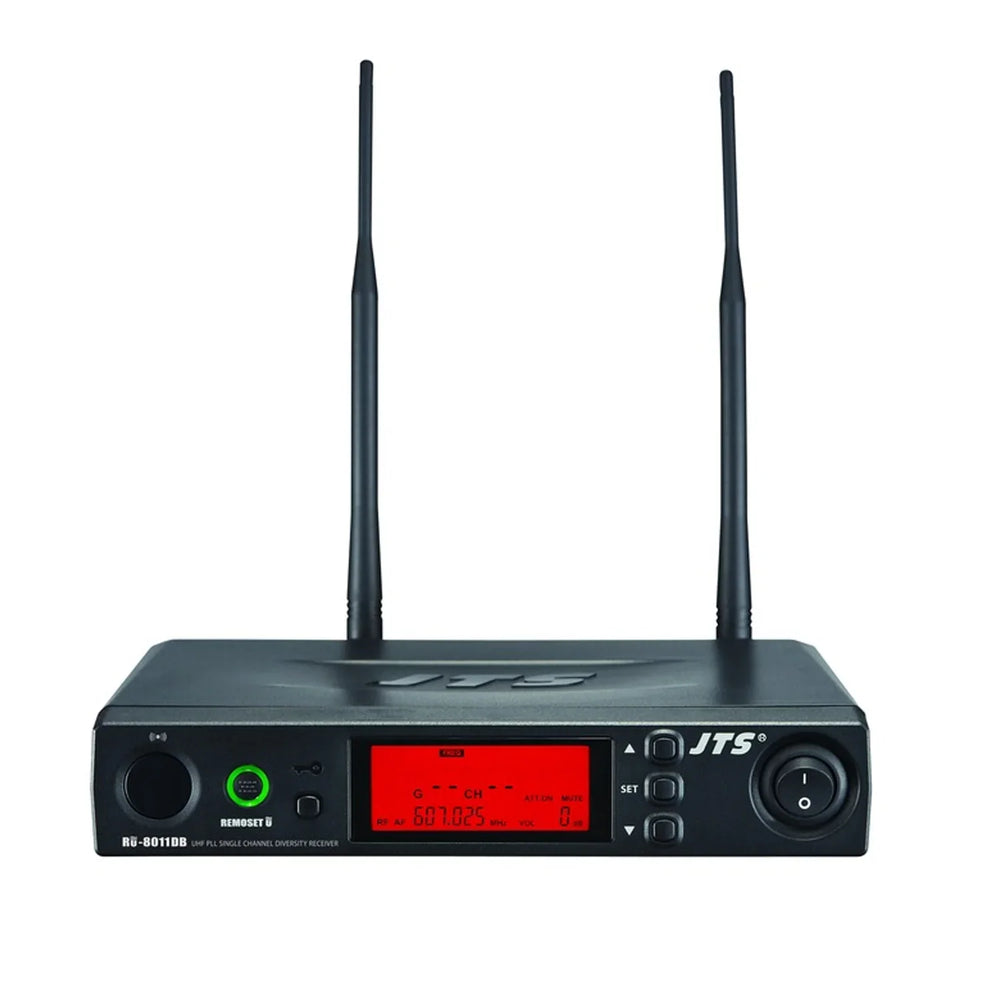

JTS RU-8011DB Single Channel UHF Receiver 606.5-642MHz
Product Description
The best selling RU-8011DB offers a feature rich solution at a fantastic price. The large LED display shows all of the important information required to guarantee rock solid RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removeable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. 606.5-642MHz
Frequency response 50Hz - 18kHz
Net Dimension (WxHxD) 212.3mm x 38.3mm x 144mm
Sensitivity 95dBm, S/N >80dB
Frequency Preparation PLL Synthesized Control
S/N Ratio >105dB (A)
Display LCD
Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Output Connector 1 independent balanced XLR and one ÿ6.3mm unbalanced Jack
Carrier Frequency Range 606.5 - 642MHz
Frequency Setting REMOSET
Receiving Mode Antenna Diversity
Bandwidth 36MHz
Rejection Ratio >80dB
Antenna Type BNC Socket
Antenna Booster Power DC 12-15V / 100mA
Power Supply 12-15v DC / 300mA
