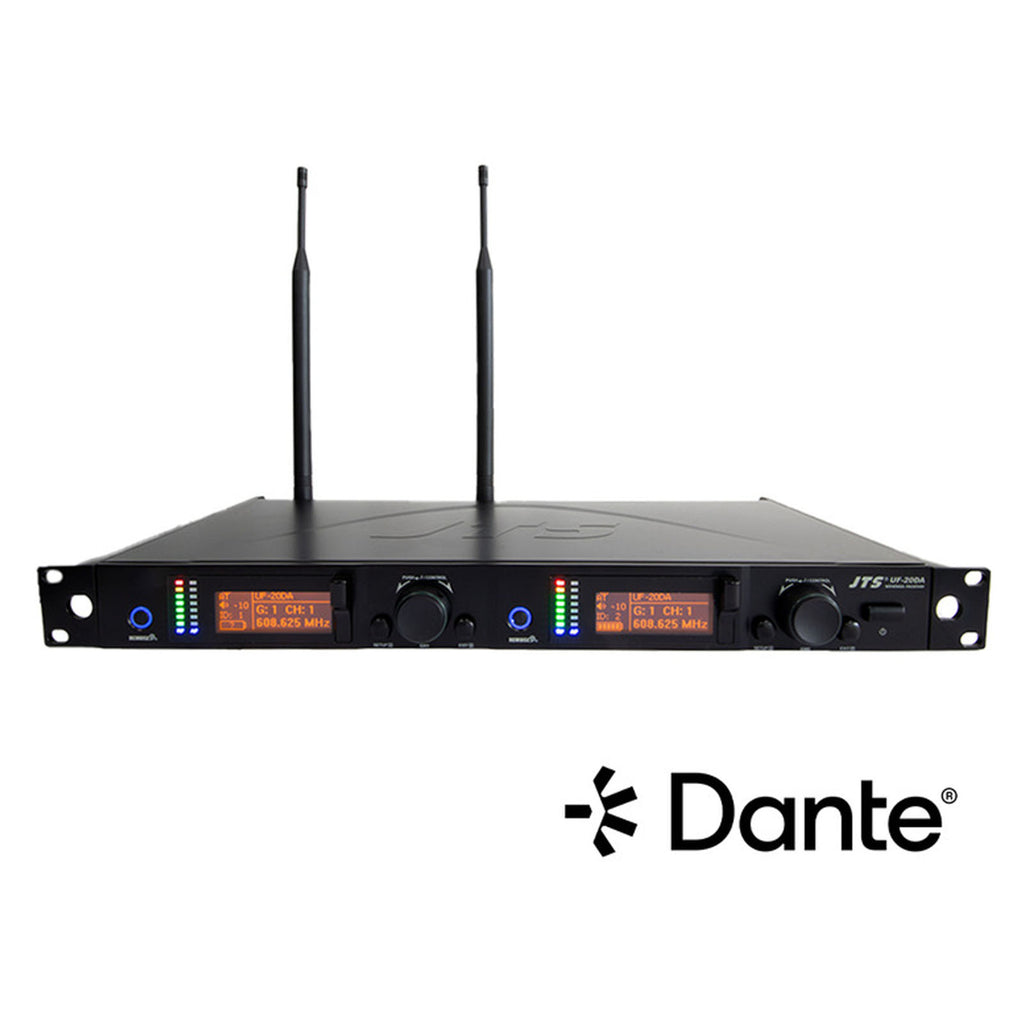

JTS UF-20DA UHF Dual Channel Wideband True Diversity Wireless Receiver c/w DANTE

JTS' UF-20 series has proved a staple in many installed and production situations for many years. Now JTS have stepped up the game with the NEW UF-20DA - Featuring all that you love about the UF-20R, now with Dante integration for networked audio and control.

Users will find the familiar menu and workflow from the UF-20R in the UF-20DA, making the transition into the next generation simple and hassle-free whilst still integrating the Dante configuration through the front of the receiver and through Dante Controller. The embedded Dante Ultimo chip is capable of up to 96kHz sample rates with selectable bitrates of 16/24/36-bit. This is alongside the existing balanced outputs on each channel for the option of digital or analogue audio without needing to change the configuration of the receiver.

UF-20DA is compatible with existing transmitters within the UF-20 family, enabling the use of JSS-20 dynamic microphones, JSS-22 condenser microphones and UF-20TB bodypack transmitters with the new receiver. The UF-20DA features JTS' patented REMOSET technology for synchronisation of transmitter settings over 2.4GHz, meaning the transmitters do not need to be brought to the receiver to apply changes to RF power, EQ, channel naming, frequency changes and input sensitivity among other things.

Dante Ultimo Specifications

• 48/96kHz selectable sample rate
• PCM 16/24/32 encoding options
• 1ms minimum latency

Frequency Preparation: PLL Synthesized Control

Frequency Setting: JTS patented obstacle-free RF REMOSET

Channel: Dual

Bandwidth: 75MHz Wideband (MAX)

S/N Ratio: >108dB(A)

T.H.D: <0.5%@1KHz

Chassis: 1U standard metal chassis

Preset Channels/Group: From group 1 - 15 up to 63 inteference-free compatible channels. 844 preset channels/group and 3000 selectable frequencies across 60 to 75Hz bandwidth

Display: LCD

Display Contents: Group, Channel, Frequency, Antenna A/B, RF/AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch

Receiving Mode: True Diversity

Audio Output Level: Maximum 6dBu

Frequency Response: 50Hz - 18kHz, with high,pass filter

Squelch: Pilot Tone & Noise Mute

Power Supply: 100-240V

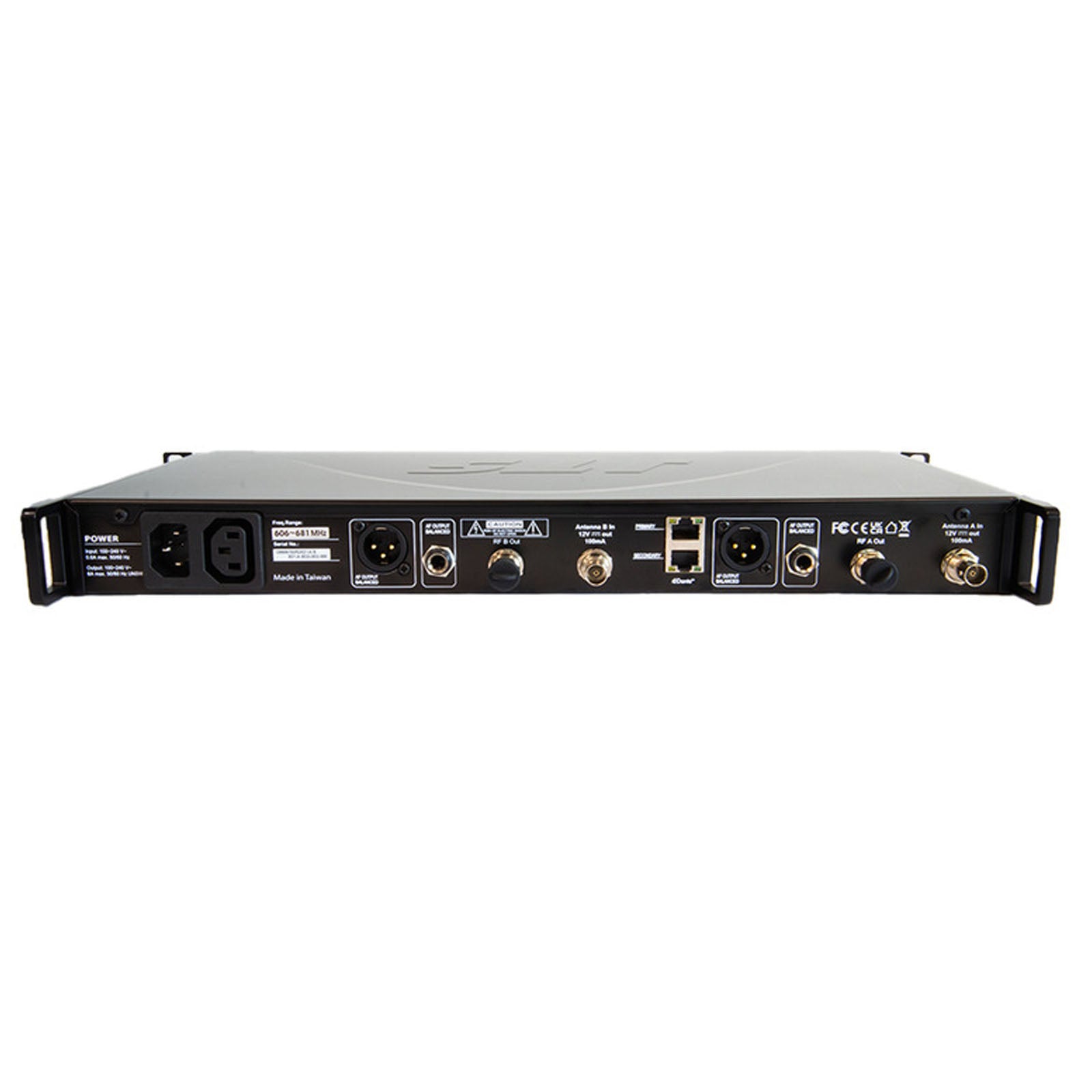

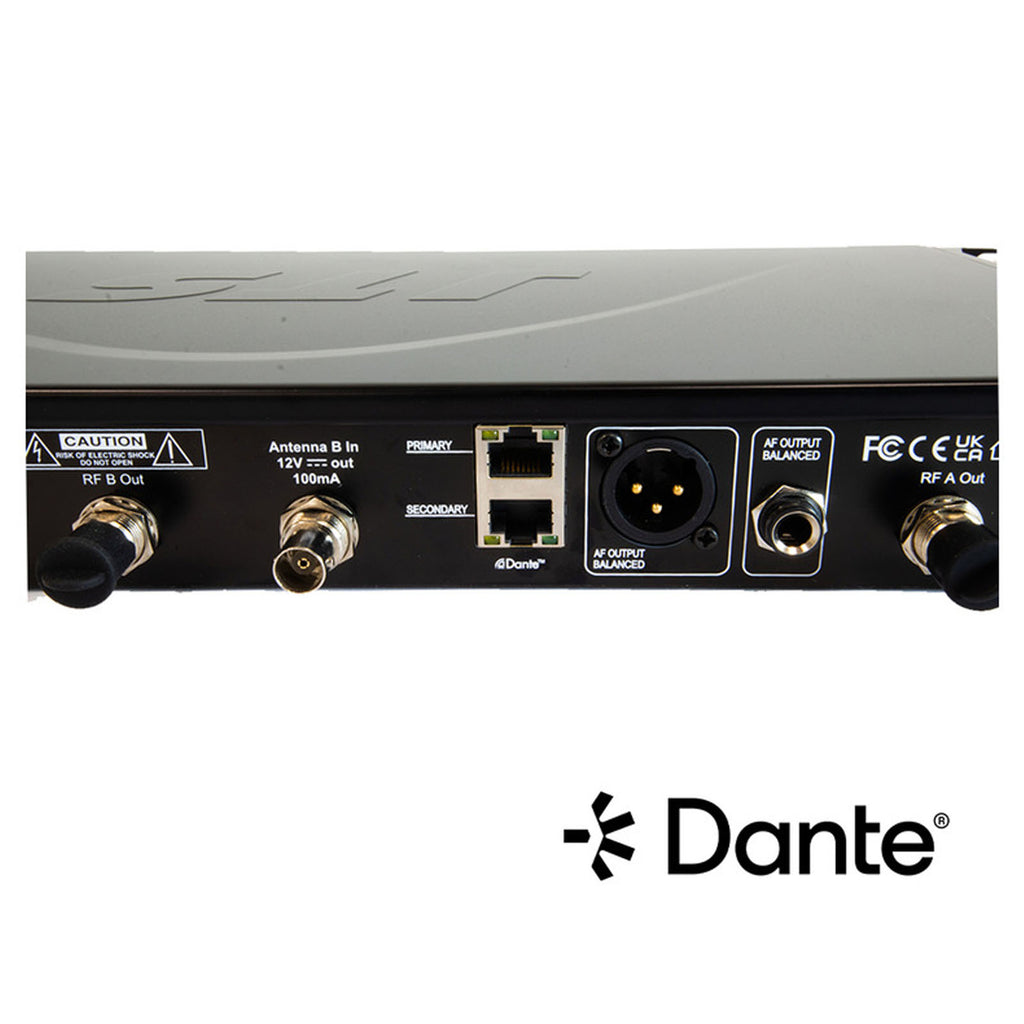

Output Connector: 2x XLR Balanced Socket, 2x 6.35mm jack, 2x RJ45 (for Dante ONLY)

Dimension mm: 480mm x 45mm x 260mm

Carrier Frequency Range: 606-681MHz
