JTS UHF PLL Dual Channel Beltpack Wireless Microphone System
JTS
SKU: 81105
£599.00
Quantity:
Checkout Securely
We accept all major payment methods
Store Pickup
Pick up is available. Check with store to see product availability before coming over.
100%
Product Description
The dual channel version of our best seller RU-8011DB offer 2 independent channels into a half rack receiver. Superb space saver without compromising on audio or RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removeable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. Supplied with 2 x RU-G3TB+CM-501 body pack + lavalier Mic transmitter it offers a complete solution where 2 presenter sytems are needed.

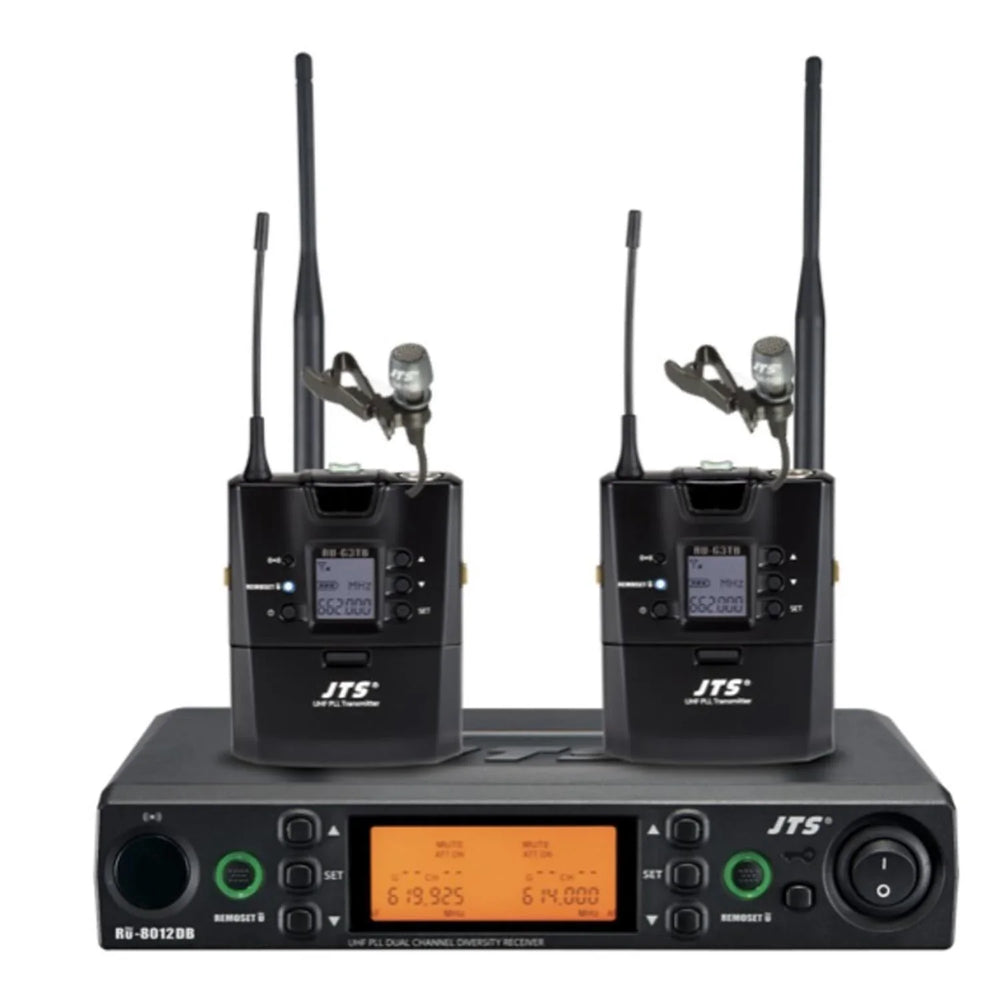

UHF PLL Dual Channel Diversity Lapel Wireless Microphone System with REMOSET and BNC antenna
The RU-8012DB/RU-G3TB+CM-501 is a Dual reciever and supplied with two belt-pack transmitters and supplied with 2 tie clip microphones
The system is made up of the Dual RU-8012DB reciever Antenna Diversity UHF PLL Wide-band receiver, TWO RU-G3TB Metal bodied Belt-Packs + TWO of our Legendary CM-501 Tie clip Microphones.

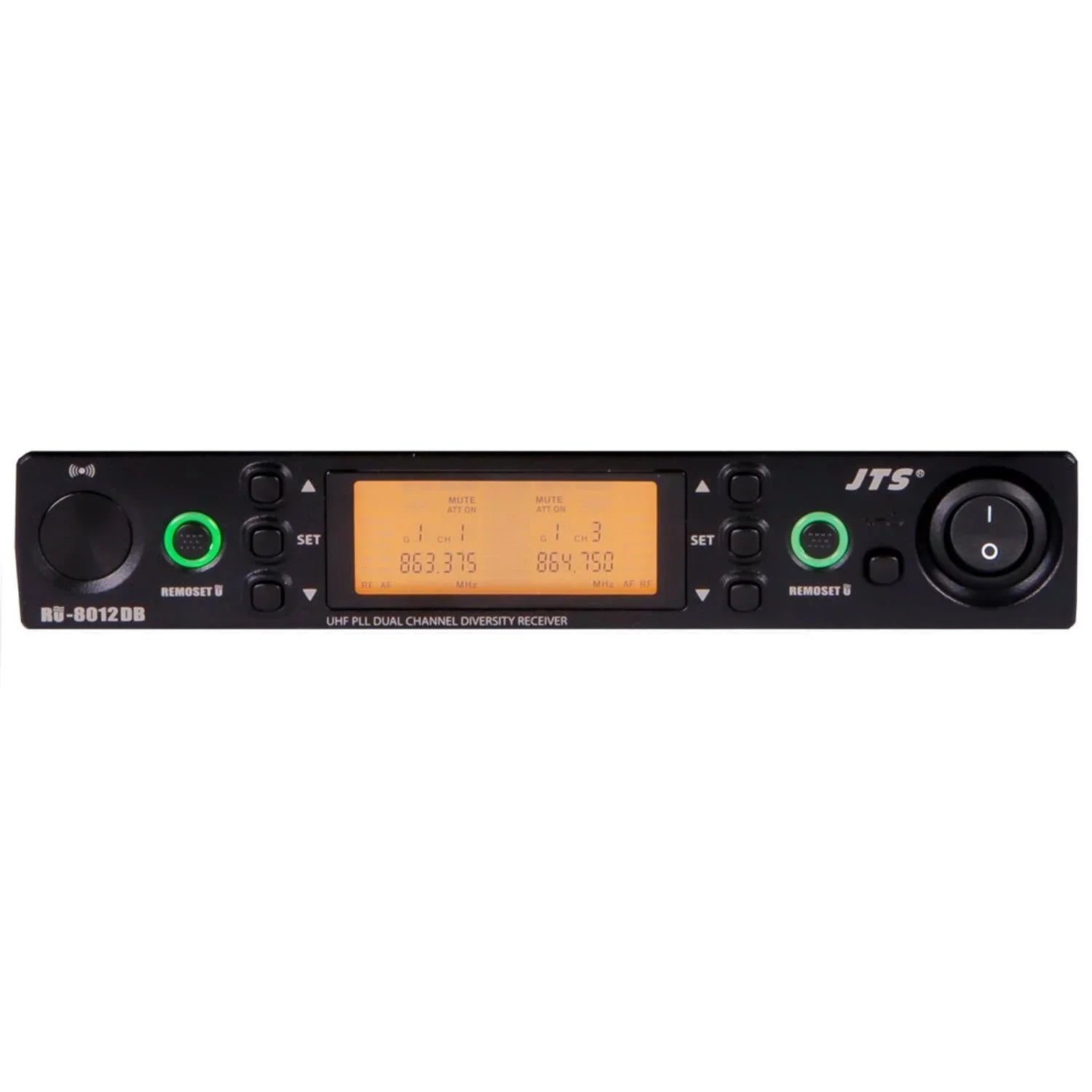

RU-8012DB Receiver Features:
*JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.*6 groups, each with up to 22 compatible preset channels
*1,441 selectable individual frequencies
*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
*Auto-Scan function
*Pilot tone squelch and noise mute
*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
*2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)
*Removable BNC Antennas
*Half Rack size with optional rack kits available.
*Optional rechargable Station with rechargable batteries is available (G3CH-2)
Available in CH 70 (863-865MHz) versions *Please Note only 3 units on CH70 can be used simultaneously*

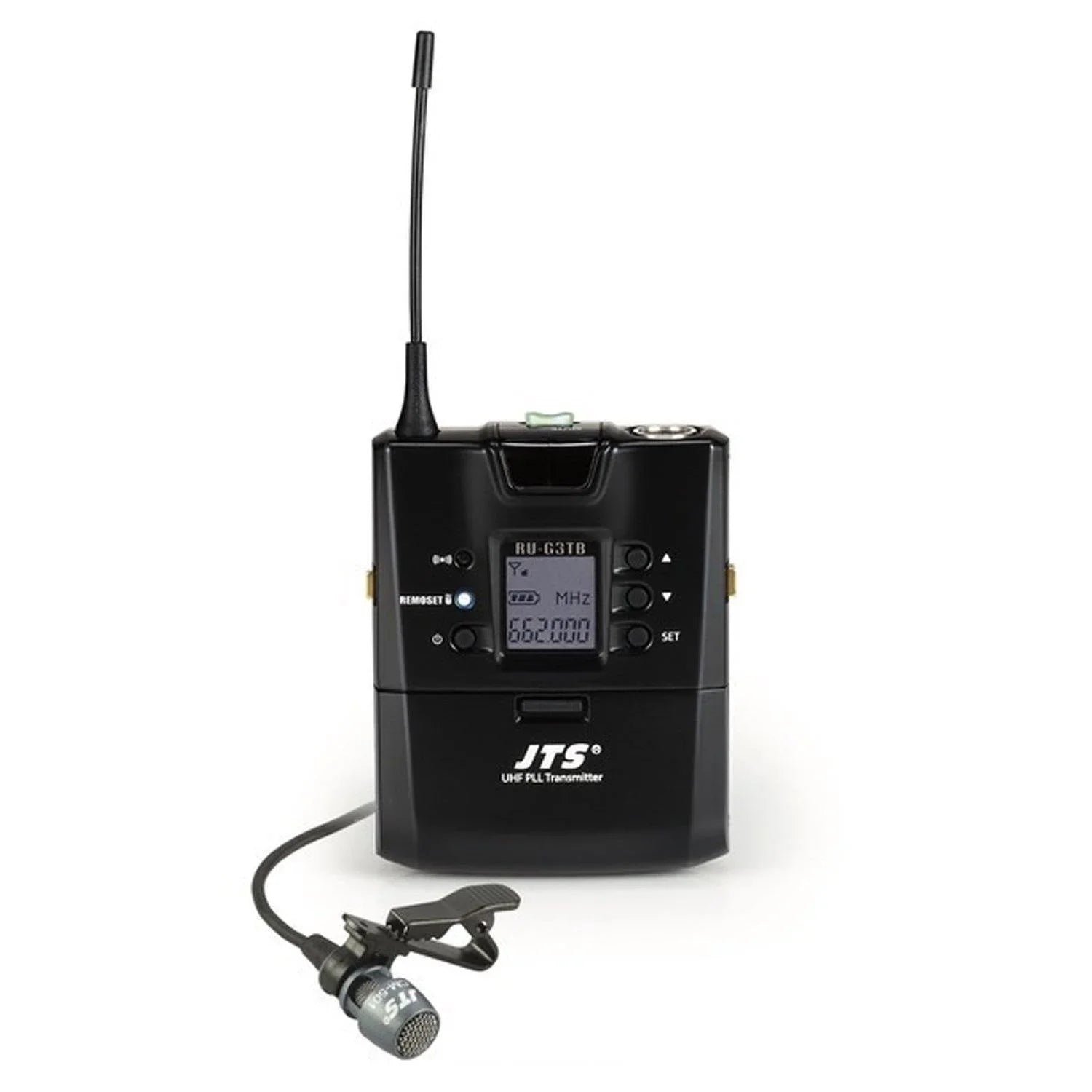

RU-G3TB Bodypack Transmitter Features:
*Phase-locked Loop (PLL) synthesized tuner.
*Powered by 2 x AA batteries with 12 hrs. average battery life.
*Equipped with 4 Pin Mini XLR connector.
*Twin Back lit LCD display with channel and battery life indicator, ID number.
*The “lock-on” function prevents tampering and RF interruption.
*Extended dynamic range and smooth frequency response.
*Noise mute and tone-key squelch.
Available in CH 70 (863-865MHz) versions * Please Note only 3 units on CH70 can be used simultaneously*
Compatible with optional Guitar cable and optional Wireless instrument microphones and optional FGM-62 /170 Carbon series Microphones. Also compatible with the optional JTS wireless goose-neck Microphones ask your dealer for more information on these fantastic optional extras.
CM-501 Tie Clip Microphone Features:
*Uni-directional for high-quality voice pick-up.
*Wide dynamic range and frequency response for excellent sound reinforcement.
*Small size for minimum visibility.
*Supplied with clip for easy attaching to a tie, lapel, dress etc.
S/N Ratio: >105dB(A)
Squelch: Pilot Tone & Noise Mute
Output Connector: 2x independent balanced XLR and 2x 6.3mm unbalanced jack
Frequency Setting: Ultrasonic / REMOSET (Transmit)
Receiving Mode: Antenna Diversity
Bandwidth: 2MHz (863-865MHz) or 36 MHz (606.5-642MHz)
Antenna Type: BNC
Power Supply: DC12~15V/500mA
Frequency Range: 863-865MHz
Beltpack Input Connector: 4 Pin Mini XLR
