JTS UHF PLL Dual Channel Diversity Handheld Wireless Microphone System

JTSSKU: 81104

Price:
Sale price£599.00
Stock:
Pre Order - Stock Due Soon

Description

The dual channel version of our best seller RU-8011DB offer 2 independent channels into a half rack receiver. Superb space saver without compromising on audio or RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Removeable antennas allow the unit to be racked using the optional DR-900/RP-900 rack kit. Supplied with 2 x RU-G3TH condenser handheld transmitters it offers a complete solution where 2 presenter sytems are needed.

UHF PLL Dual Channel Diversity Handheld Wireless Microphone System with REMOSET and BNC antenna

RU-8012DB/RU-G3TH is a Dual reciever and supplied with two High Quality Hand Held  transmitter Microphones

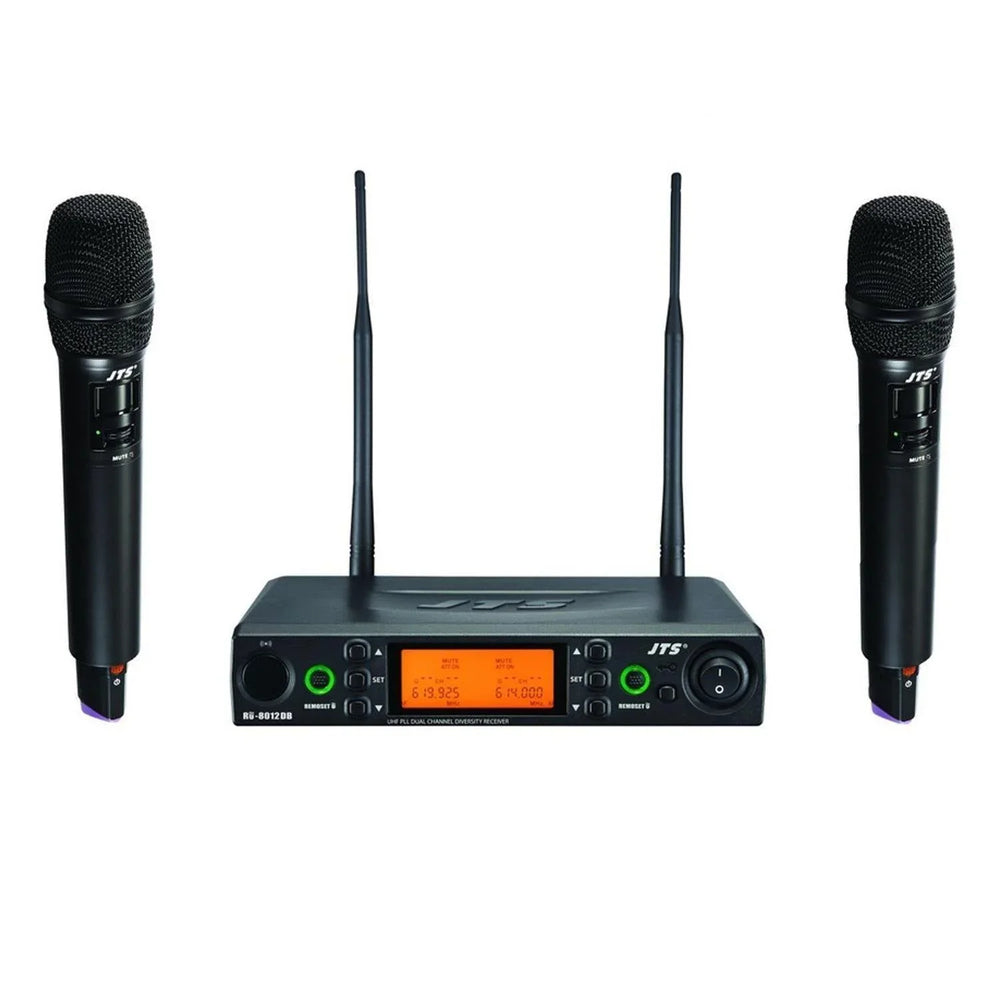

The system is made up of the Dual RU-8012DB reciever Antenna Diversity UHF PLL Wide-band receiver and TWO RU-G3TH Hand-Held transmitter Microphones.

RU-8012DB Receiver Features:

*JTS “Antenna diversity” Two antennas are used, spaced a few inches apart, each receiving the same signal from the transmitter. The receiver constantly measures the signal strength coming from both antennas, and switches to whichever antenna is picking up the stronger signal.
*6 groups, each with up to 22 compatible preset channels

*1,441 selectable individual frequencies

*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation

*Auto-Scan function

*Pilot tone squelch and noise mute

*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level

*2 x XLR output (balanced.) and 2 x 6.3 mm TS Jack output (unbalanced.)

*Removable BNC Antennas

*Half Rack size with optional rack kits available.

*Optional rechargable Station with rechargable batteries is available (G3CH-2)


 CH 70 (863-865MHz) versions *Please Note only 3 units on CH70 can be used simultaneously*

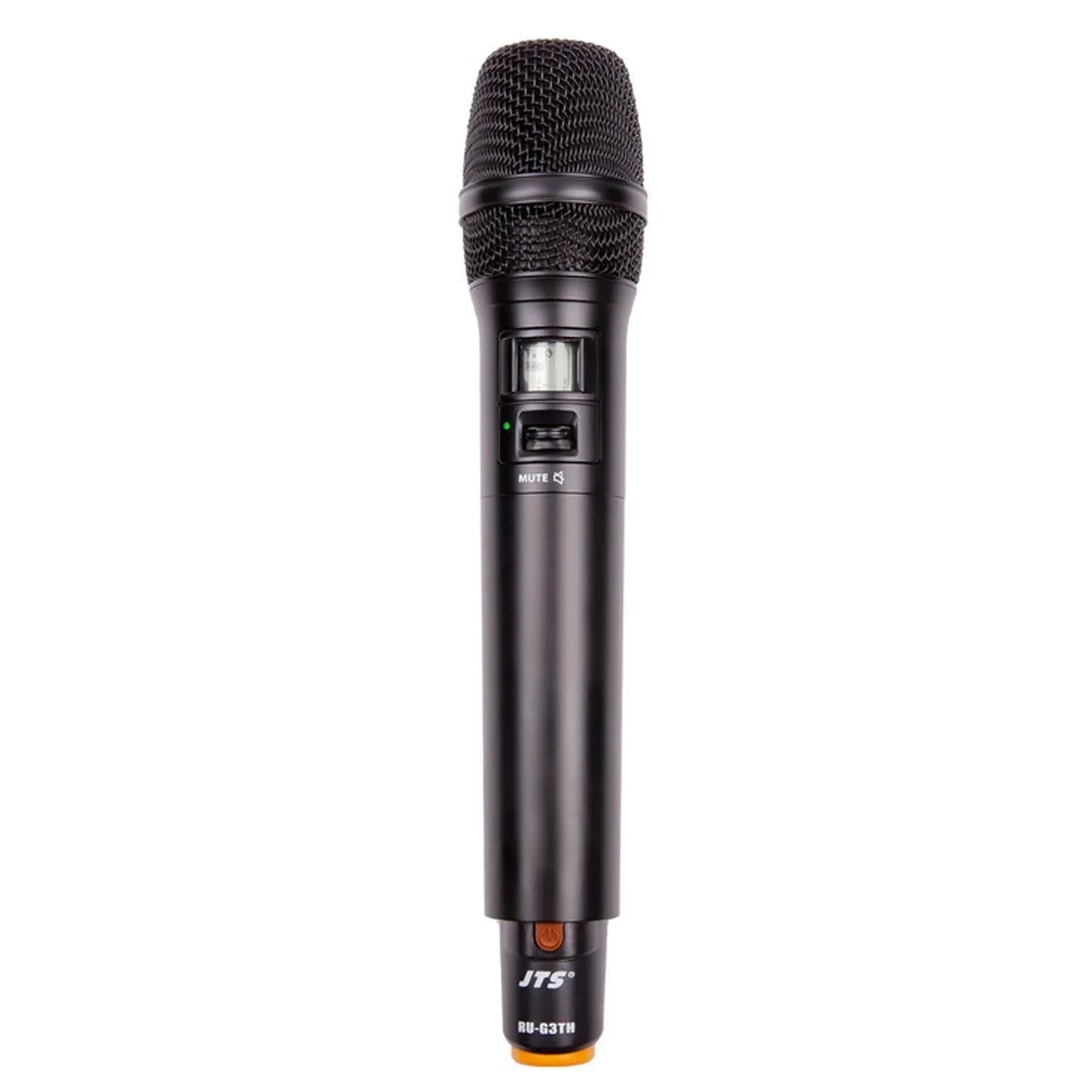

RU-G3TH Handheld Transmitter Features:

*Phase-locked Loop (PLL) synthesized tuner.

*Powered by 2 x AA batteries.

*Back lit LCD display with channel and battery life indicator, ID number.

*Extended dynamic range and smooth frequency response.

*Noise mute and tone-key squelch.

*Seperate Mute switch and Power button.

*Optional Charger available (G3CH-2)

Available in  CH 70 (863-865MHz) versions * Please Note  only 3 units on CH70 can be used simultaneously*


S/N Ratio >105dB(A)
Squelch Pilot Tone & Noise Mute
Output Connector 2x independent balanced XLR and 2x 6.3mm unbalanced jack
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 2MHz (863-865MHz) or 36 MHz (606.5-642MHz)
Antenna Type BNC
Power Supply DC12~15V/500mA
Frequency Range 863-865MHz
Handheld Capsule Dynamic
