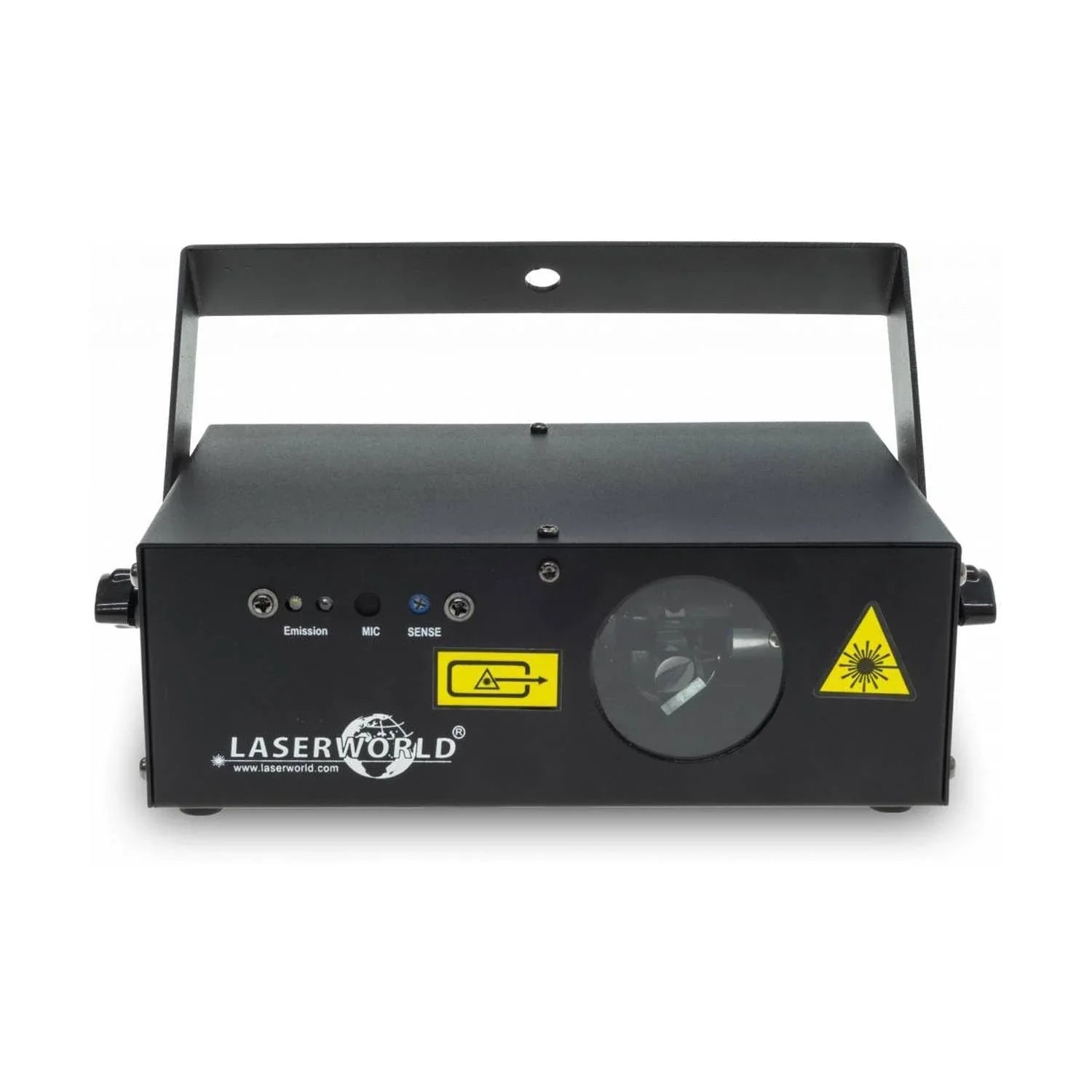

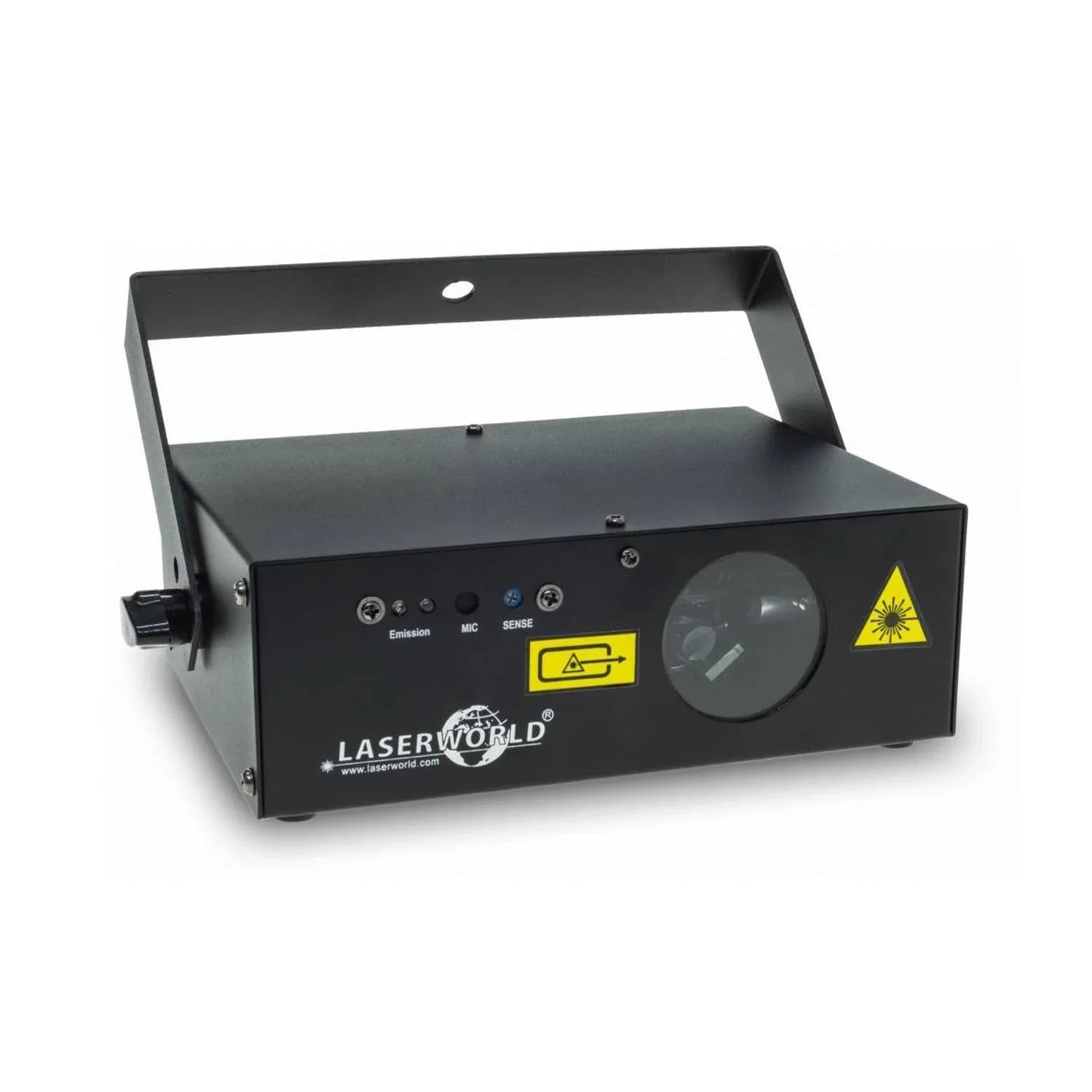

Laserworld EL-230RGB MK2 230mw RGB DMX Laser

The Laserworld EL-230RGB MK2 is a RGB laser system with a total output power of up to 230 mW.

The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colours and brightness. The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers high-speed step motors, up to 2-5 kpps as well as a scan angle of up to 30°. About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.

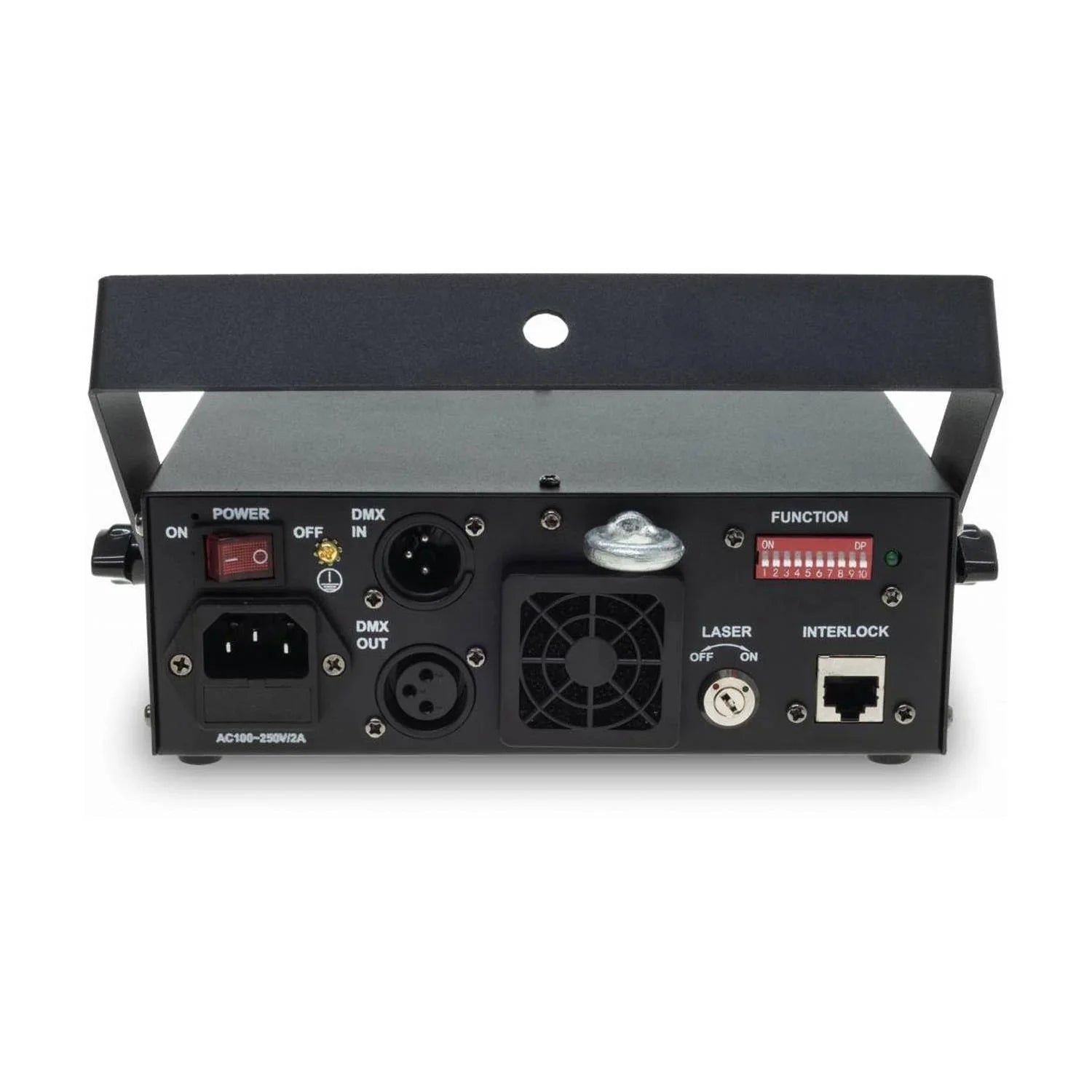

There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.

The Laserworld EL-230RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.

• Typical power 230 mW
• 7 colours including white
• Ca. 50 (layers, tunnels, fences, waves, etc.)
• Stand-alone mode
• Sound-to-light mode
• DMX programmable
• Total Power: 230 mW
• Guaranteed Power: 170 mW
• Power Red: 100 mW / 650 nm
• Power Green: 20 mW / 532 nm
• Power Blue: 50 mW / 445 nm
• Beam Specifications: ca. 4 mm / 1 mrad
• Scanner: high-speed step motors, up to 2-5 kpps
• Max. Scan Angle: 30°
• Laser Source: Diode, DPSS Laser
• Laser Class: 3B
• Operation Modes: Stand-Alone, Sound-to-Light, DMX
• Basic Patterns: ca. 50 (layers, tunnels, fences, waves, etc.)
• Accessories: power cable, manual, interlock, key
• Power Supply: 85V - 250 V AC
• Power Consumption: 30 W
• Dimensions: 205 x 145 x 75 mm
• Weight: 2.0 kg
