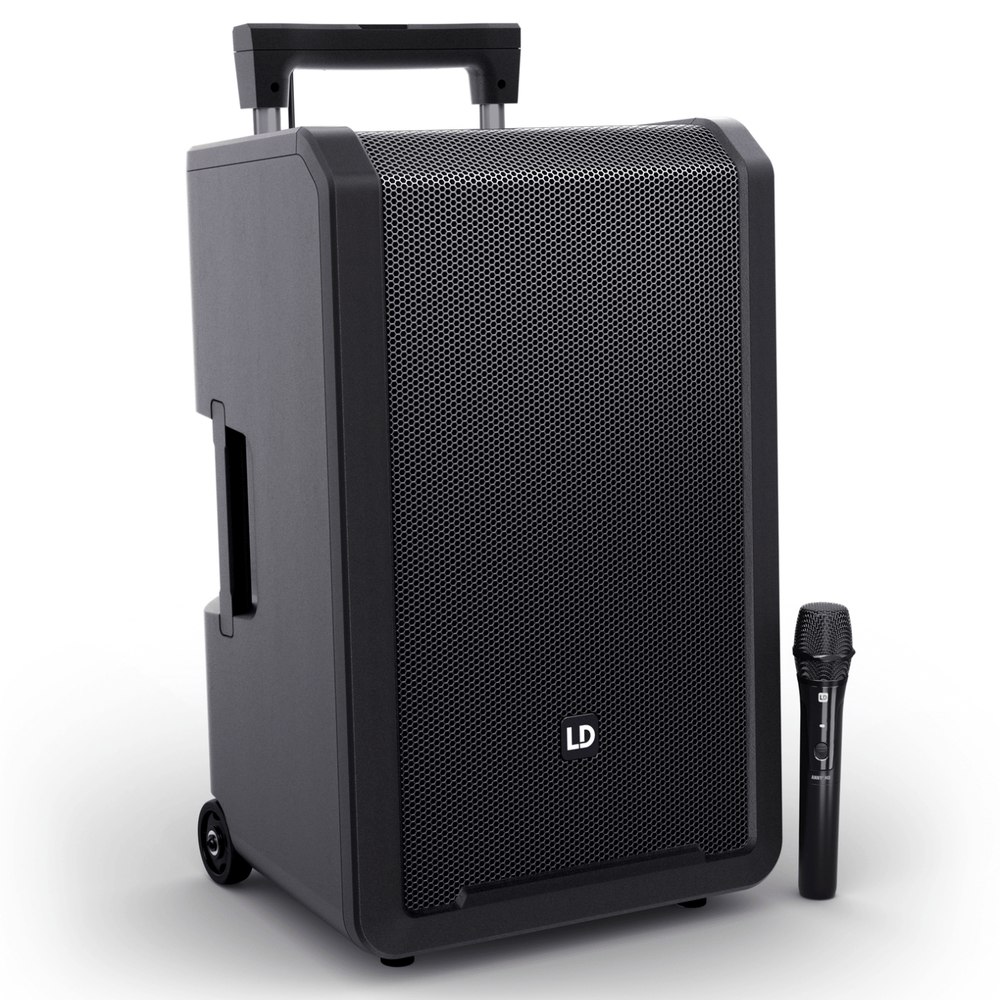

LD Systems Anny 12 12" Portable Battery Powered Bluetooth PA System With Mic
Product Description
ANNY 12 – the largest battery-powered PA speaker in the ANNY series for any location and any occasion: whether at city festivals, markets, cultural events, parties, company celebrations, trade fairs, clubs or sports and school events, ANNY 12 delivers professional sound and maximum flexibility in use.
Equipped with a 12‘‘ woofer, 1” tweeter, wheels and extendable telescopic handle, ANNY 12 offers an ideal combination of portability and sound performance.
With an integrated 6-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines comprehensive features and outstanding sound quality in a compact and robust design. ANNY 12 impresses with its versatile connection options: two microphone/line combo inputs, one stereo channel with 3.5 mm jack (AUX) and RCA inputs as well as Bluetooth 5.0 with AAC codec.
This variety enables a wide range of setups with a mix of speech and music. The footswitch input allows the reverb & delay effects to be easily switched hands-free using an external foot switch while playing or singing.
The “Priority” function can be used to ensure intelligible announcements in any situation. To do this, simply select a microphone in the priority settings and the music will automatically be turned down when the microphone is used.
The ANNY 12 HHD variant is already equipped with a wireless microphone – simply insert the included AA batteries and you’re ready to go. The volume can be controlled separately on the matching receiver module on the back of the ANNY.
This expands the connection options by adding a further input channel, allowing for even more possible combinations.
By the way, if that’s not enough, there is an additional receiver module slot for adding a second ANNY wireless microphone.
In addition to the versatile application possibilities, two ANNY 12 speakers can be connected to each other with True Wireless Stereo (TWS) to provide even larger parties and events with powerful sound.
ANNY 12 can be turned up to full volume without any problems, because the integrated DynX® DSP (Gen. 2) guarantees a distortion-free, clean and powerful sound even at maximum volume.
The 4 batteries and the hot-swap function mean that ANNY 12 can be used continuously and without interruption. As long as one of the four batteries is plugged in, ANNY will continue to play at full power, so the empty batteries can simply be swapped with fully charged ones during operation or charged alternately.
Thanks to the energy-saving ECO preset, the batteries last a particularly long time with background music or voice-only applications. At medium volume in this mode, the 4 batteries can last up to 50 hours without having to be changed. For parties at maximum volume, they last an impressive 5 hours in the MUSIC preset.
Mobile phones or tablets can be charged via the USB-C port on the back of ANNY, allowing them to remain ready to use.
Thanks to the integrated wheels and extendable telescopic handle, the speaker can be pulled around comfortably like a trolley.
Using it on a speaker stand enables even sound distribution, even in large audience areas.
ANNY 12 impresses with a robust housing design for superb durability in everyday portable PA applications.
A perfectly fitting, water-repellent protective cover with additional storage space is available as an accessory, providing protection in wind and all weathers.
Thanks to its large roll-up front opening, ANNY 12 can be used to its full extent even with the protective cover in place.
ANNY creates unforgettable moments, brings energy to any setting and delivers excellent sound, with reliable performance and the flexibility to handle demanding applications.
Scope of delivery 1x ANNY 12, 1x Receiver, 1x Wireless Handheld Microphone
Wireless frequencies 823 - 832 MHz / 863 - 865 MHz
Colour Black
Weight 21.33 kg
LD Systems ANNY® R B8 Receiver Module for ANNY®
Coating Powder coated
Colour Black
Frequency response (-3 dB, rel. Avg) 50 - 17000
Material teel sheet
Wireless frequencies 823 - 832 MHz / 863 - 865 MHz
Antennas BNC female
Channels 12
Depth 118.5
Height 39.6
Weight 80
Width 72.8
LD Systems ANNY® MD B8 Wireless Handheld Microphone for ANNY®
Colour
Black
Directivity Cardioid
Frequency response (-3 dB, rel. Avg) 60 - 20000
Material Plastic
Wireless frequencies 823 - 832 MHz / 863 - 865 MHz
Channels 12
Frequency synchronization via IR Yes
Transmitting power 10 mW
Min. Signal-to-noise ratio (SNR) 104
Batteries 2 x 1.5 V AA/LR6 @ max.8 h
Diameter 32.5
Length 250.4
Weight 200
LD Systems ANNY® 12 12" Portable battery-powered Bluetooth® PA system with mixer
Amp classClass D
Beam angle Hor.: 90° / Vert.:50°
Crossover frequency 1600 Hz
Frequency response (-10 dB, rel. Avg) 40 - 20000
Input connector types 3.5 mm Jack TRS female, XLR combo socket
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) 116
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) 122
Number of inputs 5
Number of outputs 1
Output connector types XLR 3-pole male
Peak output power 215 W
RMS output power 185 W
Speaker system 2-way system
Type Active
Bluetooth® version Bluetooth® 5.0
Supported audio codecs SBC, AAC
Magnet Neodymium
Manufacturer Custom Made
Size 12
Voice coil 2
Design Compression driver with CD horn
Driver size 1
Magnet
Ferrite
Manufacturer Custom Made
Outlet diameter 36
Voice coil 1.4
Mains connector IEC C14 socket male
Mains fuse T3.15AL/250 V
Operation voltage 100 V AC - 240 V AC / 50 - 60 Hz
Power supply type Switched-mode power supply (SMPS)
Rated power 250
Battery capacity 4 x 6700 mAh
Battery life 5 h (MUSIC) - 50 h (ECO)
Cell technology Lithium-ion (Li-Ion)
Charging time (100 %) 3
Charging time (80 %) 2
Exchangeable Yes
Operating voltage 14.8
Ambient temperature 0 - 40
Maximum air humidity (non-condensing) 80
Depth 341
Height 655
Weight 20.96
Width 405
Included accessories 4 rechargable batteries, Mains cable
