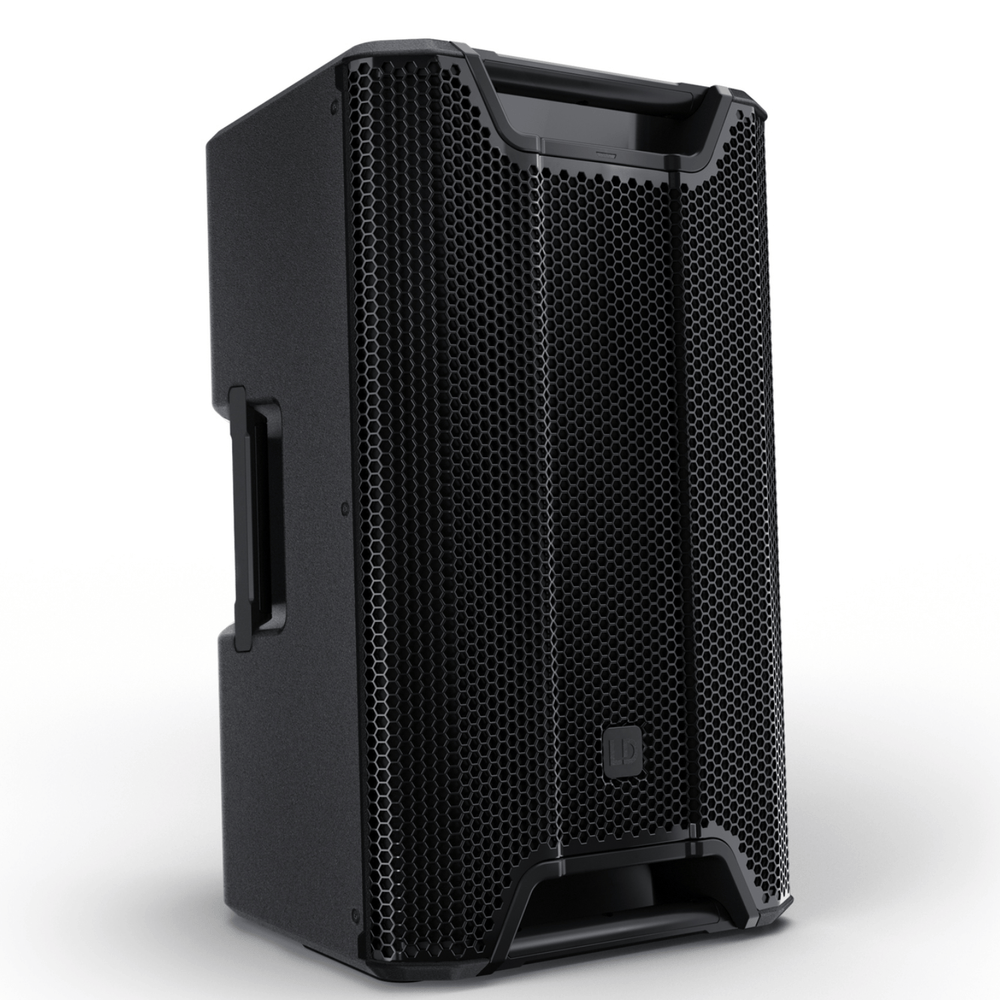

LD Systems ICOA PRO 12A 12" Active High-Performance PA Speaker with Bluetooth and App
Product Description
The ICOA PRO 12 A combines the sonic precision of a true coaxial system with the flexibility of a compact 12ʺ loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile and ideal for a wide range of applications, from club gigs to live events and permanent installations.
The coaxial design combines a specially manufactured 12ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.
The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.
Thanks to its flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1000 W RMS (2000 W peak) and 133 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.
The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.
Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.
Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for the input and master channels enable precise settings.
The whole experience is rounded off by an intuitive menu navigated using the colour display with one-knob control and the free ICOA PRO app.
All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.
Its robust ABS cabinet with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 12 A an excellent floor monitor. Four ergonomic carrying handles also ensure a secure grip while setting up and dismantling.
When used with a tripod, a tilt angle of 0° or 5° can be selected. Whether vertical or horizontal, the rotatable horn and the multiple mounting options, such as 6 × M10 flying points and the EasyMount truss mount, mean the loudspeaker can be used flexibly in a wide variety of environments.
This makes the ICOA PRO 12 A the perfect choice as a versatile tool for all event and installation applications.
Padded, water-repellent custom-fit protective covers with additional storage space are available as accessories for safe use and transport.
General
Type Active
Peak output power 2000 W
RMS output power 1000 W
Amp class Class D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) 127 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4) 133 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) 118 dB
Frequency response (-10 dB, rel. Avg) 50 - 20,000 Hz
Speaker system 2-way coaxial system (Common Motor Design)
Crossover frequency 800 Hz
Beam angle Hor.: 90° / Vert.:50°
Monitor angle 50 °
Protection features Multiband Limiter, Short circuit, Overheating, Direct current
Colour Black
Bluetooth®
Bluetooth® version Bluetooth® 5.1
Features Audio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control
Supported audio codecs SBC, AAC
Inputs
Number of mic/line inputs 2
Mic/Line-in connector type XLR combo socket
Outputs
Number of line outputs 1
Line outputs connector type XLR combo socket
Signal processing
AD/DA converter bit depth 24 Bit
AD/DA converter sampling rate 48 kHz
Min. Signal-to-noise ratio (SNR) 108 dB
Bass driver
Size 12 "
Outer diameter 312.3 mm
Magnet Ferrite
Voice coil 3 "
Tweeter
Driver size 3 "
Outlet diameter 36.68 mm
Magnet Ferrite
Voice coil 3 "
Mains operation
Operation voltage 100 V AC - 240 V AC / 50 - 60 Hz
Power supply type Switched-mode power supply (SMPS)
Rated power 650 W
Mains fuse T6.3AH/250 V
Housing
Design Bass reflex
Number of handles 4
Number of mounting points 6
Flange 36 mm (0°/5°)
Cabinet material ABS
Cooling
Cooling system Convection cooling
Environmental
Ambient temperature 0 - 40 °C
Maximum air humidity (non-condensing) 80 %
Dimensions & weight
Width 376 mm
Height 627.8 mm
Depth 393.6 mm
Weight 23.1 kg
