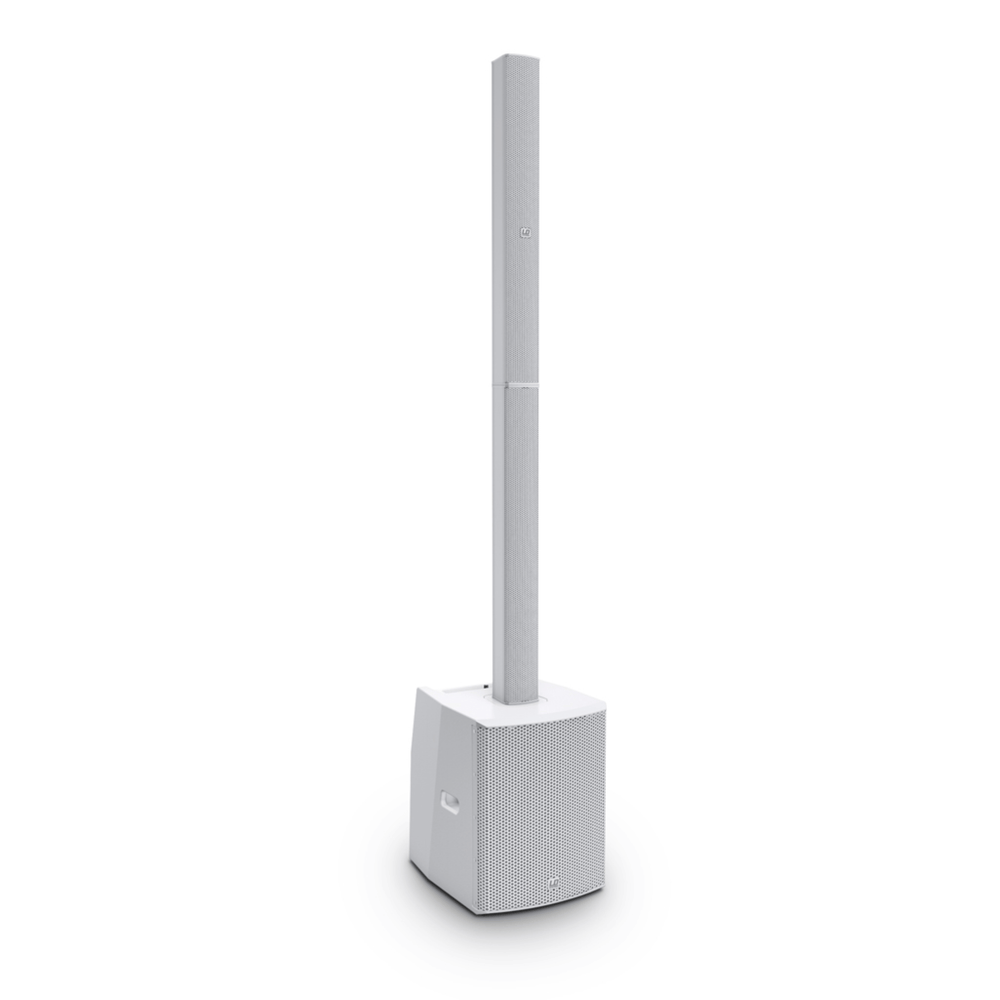

LD Systems MAUI 28 G2 W Compact column PA system active with built-in mixer and Bluetooth white
Product Description
A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.
The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.
The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.
Type Active
Peak output power 2000 W
RMS output power 1000 W
Amp class Class D
Max. SPL peak 126 dB
Frequency response 45 Hz - 20000 Hz
Beam angle Hor.: 120° / Vert.:20°
Number of inputs 4
Input connector types XLR combo socket, RCA female, 6.3 mm Jack TRS female, 3.5 mm Jack TS female
Number of outputs 2
Output connector types XLR 3-pole male
Colour White
Bluetooth®
Bluetooth® version Bluetooth® 4.2
Supported audio codecs SBC
Inputs
Number of microphone inputs 1
Mic-in connector type XLR combo socket
Number of instrument inputs 1
Inst-in connector type 6.3 mm Jack TRS female
Number of line inputs 2
Line-In connector type XLR combo socket
Number of music inputs 1
Music inputs connector types 3.5 mm Jack TRS female
Outputs
Number of speaker outputs 1
Speaker output connection type XLR combo socket
Signal processing
DSP model DSP Eigenschaften
Mixer Yes
Mixer channels 4
Audio processing 3 band EQ (High, Mid, Low), Presets, Digital effects (DFX)
AD/DA converter bit depth 24 Bit
AD/DA converter sampling rate 48 kHz
Min. Signal-to-noise ratio (SNR) 100 dB
Bass driver
Size 8 "
Quantity 2
Manufacturer Custom Made
Magnet Ferrite
Voice coil 2 "
Mid range
Size 3 "
Quantity 16
Manufacturer Custom Made
Voice coil 1 "
Magnet Ferrite
Tweeter
Driver size 1 "
Quantity 2
Manufacturer Custom Made
Magnet Neodymium
Voice coil 1 "
Mains operation
Operation voltage 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Rated power 11 W
Max. Stand-by power consumption 0 W
Mains connector IEC C14 plug male
Satellites/columns
Design Closed
Chassis material Aluminium
Housing coating HD coated Aluminium
Front grille material Aluminium
Width 96 mm
Height 780 mm
Depth 104 mm
Weight 5.6 kg
Subwoofer
Design Bass reflex
Number of handles 4
Material thickness 15 mm
Surface coating Painted (textured lacquer)
Front grille material Aluminium
Width 370 mm
Depth 480 mm
Height 484 mm
Weight 19.7 kg
Environmental
Ambient temperature 0 °C - 40 °C
Maximum air humidity (non-condensing) 80 %
Dimensions & weight
Width 370 mm
Height 2059 mm
Depth 480 mm
Weight 30.9 kg
Other properties
Included accessories Mains cable
