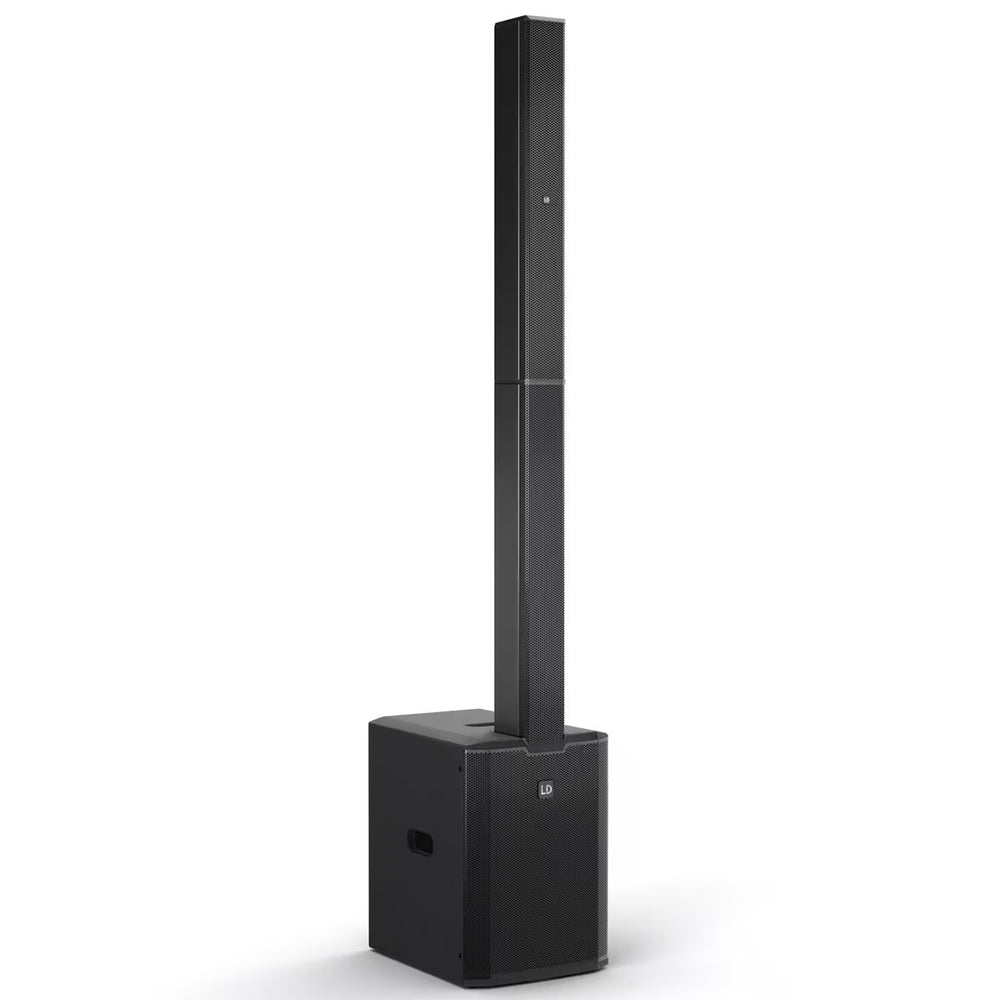

LD Systems MAUI 28 G3 Black Compact Cardioid Column PA System
Product Description
Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!
The MAUI 28 G3 delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.
With its sleek and elegant design, the MAUI 28 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.
The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.
Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.
The MAUI 28 G3 is a real sound machine, yet also convinces with its sophisticated features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...
General
Type Active
Peak output power 2,060 W
RMS output power 1,030 W
Amp class Class D
Max. SPL peak 127 dB
Beam angle 120° (hor.) / 30° (vert.)
Number of inputs 2
Input connector types XLR combo socket
Number of outputs 3
Output connector types XLR 3-pole male
Protection features Multiband Limiter, Short circuit, Overheating, Direct current
Colour Black
Bluetooth®
Bluetooth® version Bluetooth® 5.0
Features Audio Streaming (A2DP), Control
Supported audio codecs SBC, AAC
Outputs
Number of speaker outputs 1
Speaker output connection type XLR 3-pole male
Number of line outputs 2
Line outputs connector type XLR 3-pole male
Signal processing
AD/DA converter bit depth 24 Bit
AD/DA converter sampling rate 48 kHz
Bass driver
Size 12 "
Magnet Ferrite
Voice coil 3 "
Mid range
Size 3.5 "
Quantity 12
Voice coil 0.75 "
Magnet
Ferrite
Tweeter
Driver size 1 "
Quantity 2
Magnet Neodymium
Voice coil 1 "
Mains operation
Operation voltage 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Power supply type Switched-mode power supply (SMPS)
Rated power 400 W
Mains connector Mains socket indoor power in male & powerCON®
Housing
Design Bass reflex
Number of handles 4
Cabinet material Multiplex
Material thickness 15 mm
Front grille material Aluminium
Cooling
Cooling system Convection cooling
Satellites/columns
Design Cardioid
Chassis material Aluminium
Front grille material Aluminium
Width 103 mm
Height 1,540 mm
Depth 135 mm
Weight 12.6 kg
Subwoofer
Design Bass reflex
Material thickness 15 mm
Surface coating Polyurea
Front grille material Aluminium
Width 370 mm
Depth 472 mm
Height 527 mm
Weight 22.8 kg
Environmental
Ambient temperature 0 - 40 °C
Maximum air humidity (non-condensing) 80 %
Dimensions & weight
Width 370 mm
Height 2,052 mm
Depth 472 mm
Weight 35.4 kg
