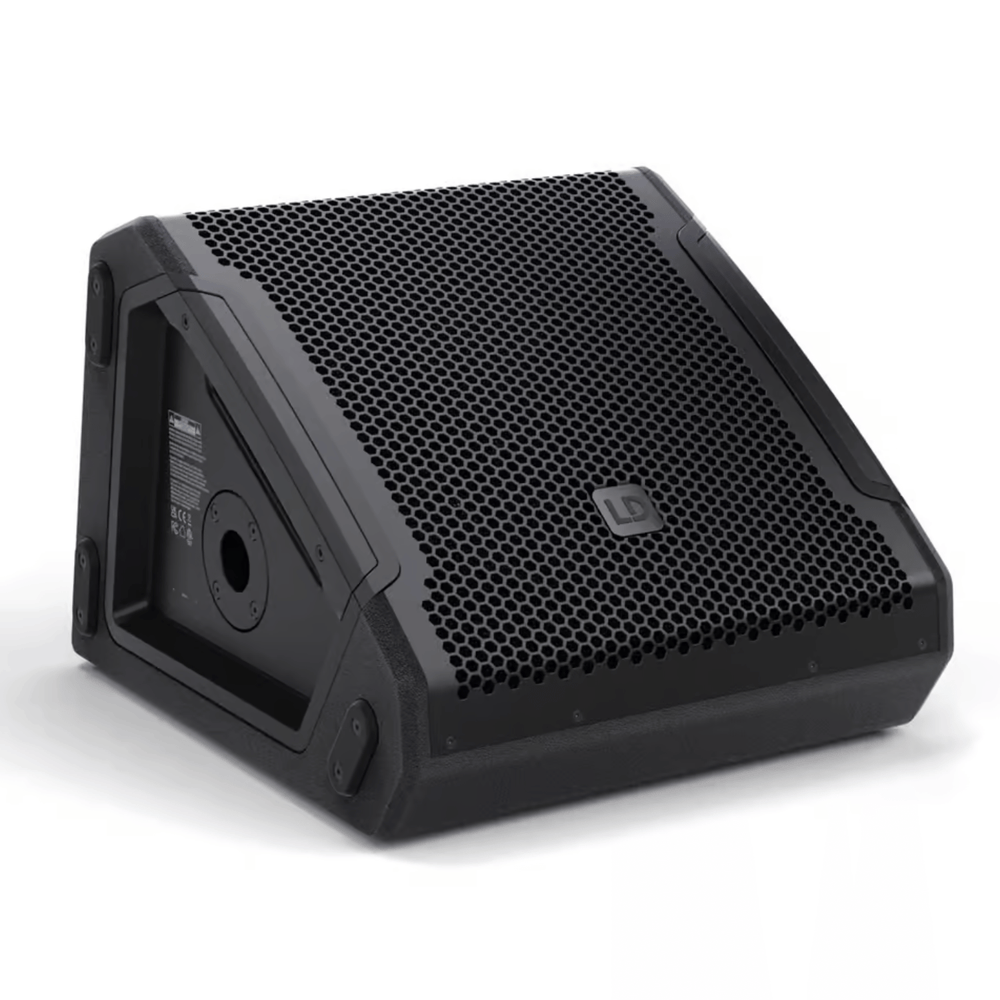

LD Systems MON 10 A G3 10" Active 1200W Coaxial Stage Monitor
Product Description
The MON 10 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks.
Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
General
Type Active
Peak output power 1200 W
RMS output power 300 W
Amp class Class D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) 126 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) 118 dB
Frequency response (-3 dB, rel. Avg) 72 - 18,000 Hz
Frequency response (-10 dB, rel. Avg) 58 - 20,000 Hz
Speaker system 2-way coaxial system
Crossover frequency 1700 Hz
Beam angle Hor.: 50° / Vert.:90°
Monitor angle 33 °
Number of inputs 2
Number of outputs 2
Output connector types XLR 3-pole female
Protection features Multiband Limiter, Overheating, Overvoltage, Overload
Colour Black
Inputs
Number of mic/line inputs 2
Number of line inputs 2
Line-In connector type 6.3 mm Jack TRS female
Outputs
Number of line outputs 2
Line outputs connector type XLR 3-pole female
Signal processing
Mixer Yes
Audio processing 3 band EQ (High, Mid, Low), Delay Line, Notch filter, Presets
Bass driver
Size 10 "
Magnet Ferrite
Voice coil 2.5 "
Tweeter
Driver size 1 "
Magnet Ferrite
Voice coil 1.75 "
Mains operation
Operation voltage 100 V AC - 230 V AC / 50 - 60 Hz
Power supply type Switched-mode power supply (SMPS)
Rated power 150 W
Mains connector Mains socket indoor power in male & powerCON®
Mains fuse T4AL/250 V
Housing
Design Bass reflex
Number of handles 2
Flange 36 mm (0°/5°)
Cabinet material Birch multiplex, Medium-density fibreboard MDF
Material thickness 15 mm
Front grille material Aluminium
Environmental
Ambient temperature 0 - 40 °C
Maximum air humidity (non-condensing) 80 %
Dimensions & weight
Width 380 mm
Height 305 mm
Depth 426 mm
Weight 15.21 kg
Other properties
Included accessories Mains cable
