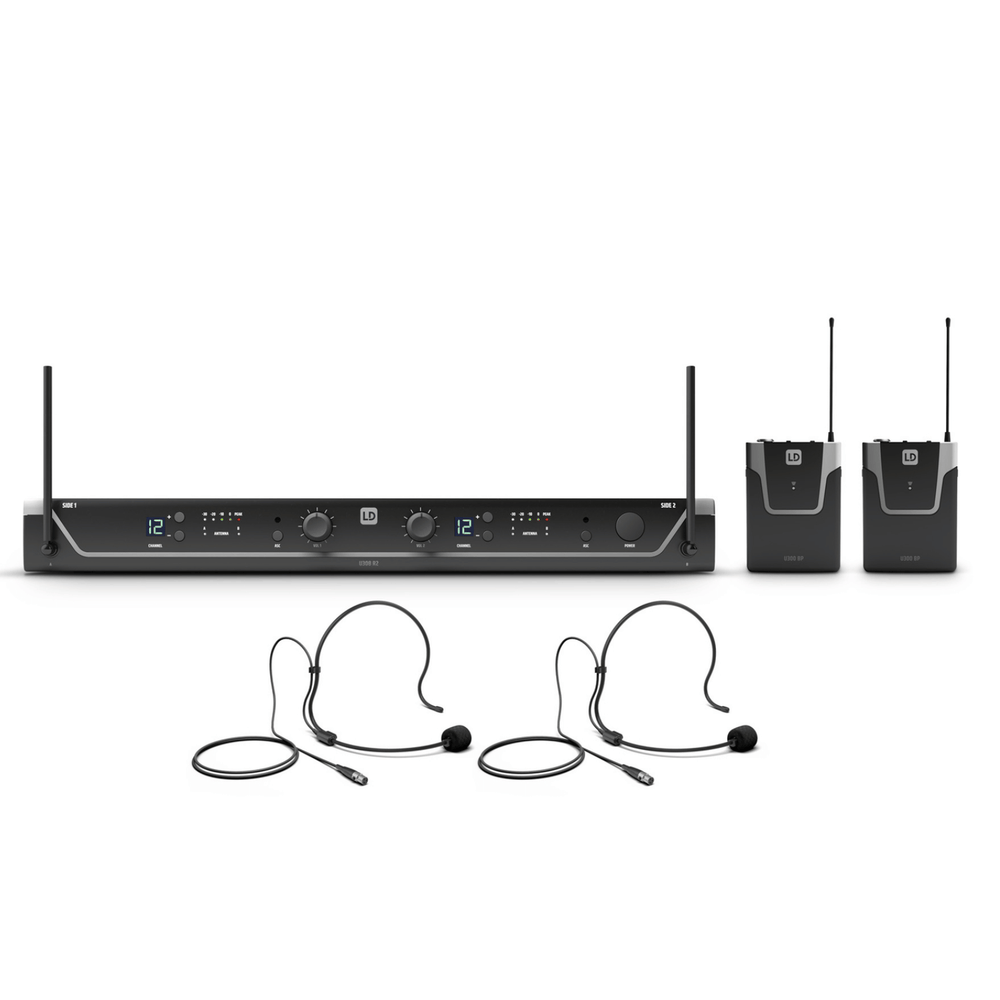

LD Systems U308 BPH 2 Dual - Wireless Microphone System with 2 x Bodypack and 2 x Headset - 863 - 865 MHz + 823 - 832 MHz
Product Description
Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.
U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.
The U300® Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500®-series replaceable heads.
General
Product type Wireless Microphone Systems
Type Set
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Weight 1,35 kg
LD Systems U308 BP Bodypack transmitter
Material ABS
Wireless frequencies 823 - 832 MHz / 863 - 865 MHz
Frequency response (-6 dB, rel. Avg) 25 - 16,000 Hz
Colour Black
Accent colour Silver
Channel groups number 1
Channels 12
Transmitting power 10 mW
Antennas 1 (fixed)
Input connector types Mini XLR female
Min. Signal-to-noise ratio (SNR) 104 dB
Batteries 2 x 1.5 V AA/LR6 @ max.10 h
Width 65 mm
Height 91 mm
Depth 25 mm
Weight 85 g
LD Systems U308 R2 Dual Receiver- 863 - 865 MHz + 823 - 832 MHz
Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Channels 12
Groups 1
Antenna inputs 2 x fixed
Frequency response 35 - 16000
Noise reduction Squelch
Transmission optimization Pilot tone
Total Harmonic Distortion (THD) < 0.3 %
Signal-to-noise ratio 104 dB
Audio output, balanced 3 x XLR
Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level ( Line/Instrument )
Audio mix output, balanced XLR
Audio mix output, unbalanced 6.3 mm jack
Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls 2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/Off
Indicators 5-LED VU-Meter, Antenna A/B, LCD display
Operating voltage 12 V DC, 500 mA
Width 410 mm
Height 43 mm
Depth 120 mm
Weight 1,265 kg
Accessories (included) 2 x AA batteries, Power supply
Other features IR frequency synchronisation, Pilot tone
LD Systems WS 100 MH 1 Headset microphone, black
Directivity Cardioid
Capsule type Condenser
Nominal impedance680 Ω
Sensitivity (transfer factor) 6.31 mV/Pa
Phantom power 5 V
Output connector type Mini XLR female
Cable length 1 m
Material ABS
Frequency response (-6 dB, rel. Avg) 100 - 12,000 Hz
Colour Black
Weight 49 g
