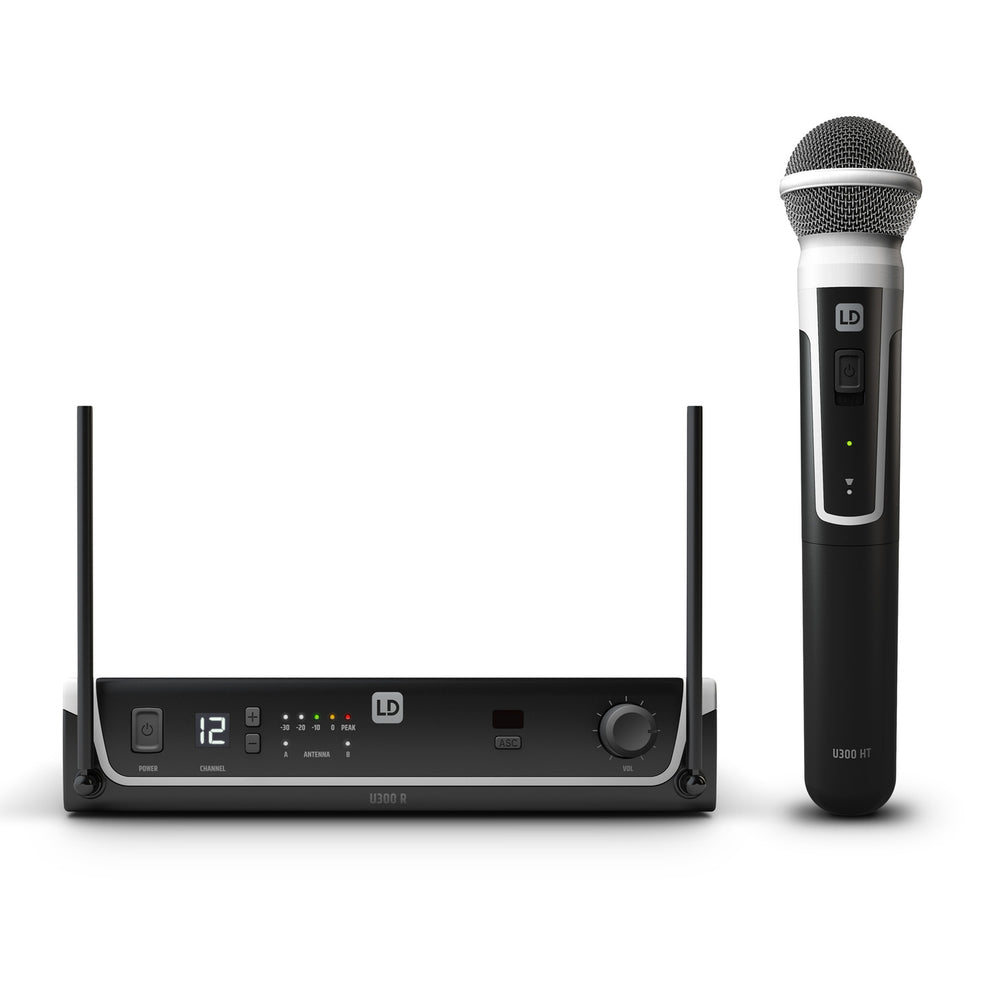

LD Systems U308 HHD Wireless Microphone System 863-865 MHz

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

General

Scope of delivery

Material Aluminium, Steel sheet

Wireless frequencies 823 - 832 MHz / 863 - 865 MHz

Frequency response (±0.5 dB, rel. Avg) 25 - 16,000 Hz

Colour Black

Weight940 g

LD Systems U308 MD Dynamic handheld microphone

Directivity

Cardioid

Capsule type Dynamic

Material Aluminum continuous casting

Wireless frequencies 823 - 832 MHz / 863 - 865 MHz

Frequency response (-10 dB, rel. Avg) 55 - 16,000 Hz

Colour Black

Accent colour Silver

Channel groups number 1

Channels 12

Batteries 2 x 1.5 V AA/LR6 @ max.10 h

Length 257 mm

Diameter 50 mm

Weight 235 g

LD Systems U308 R Receiver

Material Steel sheet

Coating Powder coated

Wireless frequencies 823 - 832 MHz / 863 - 865 MHz

Frequency response (-6 dB, rel. Avg) 25 - 16,000 Hz

Colour Black

Accent colour Silver

Sensitivity 10 dBµV

Channel groups number 1

Channels 12

Antennas 2 (fixed)

Output signal type Balanced

Number of line outputs 2

Line outputs connector type 6.3 mm Jack TRS female

Max. THD+N (1 kHz, +4 dBu, unity, unweighted) 0.3 %

Operation voltage 12 V DC - 18 V DC (external power supply)

Width 211 mm

Height 43 mm

Depth 120 mm

Rack width 9.5"

Weight 700 g
