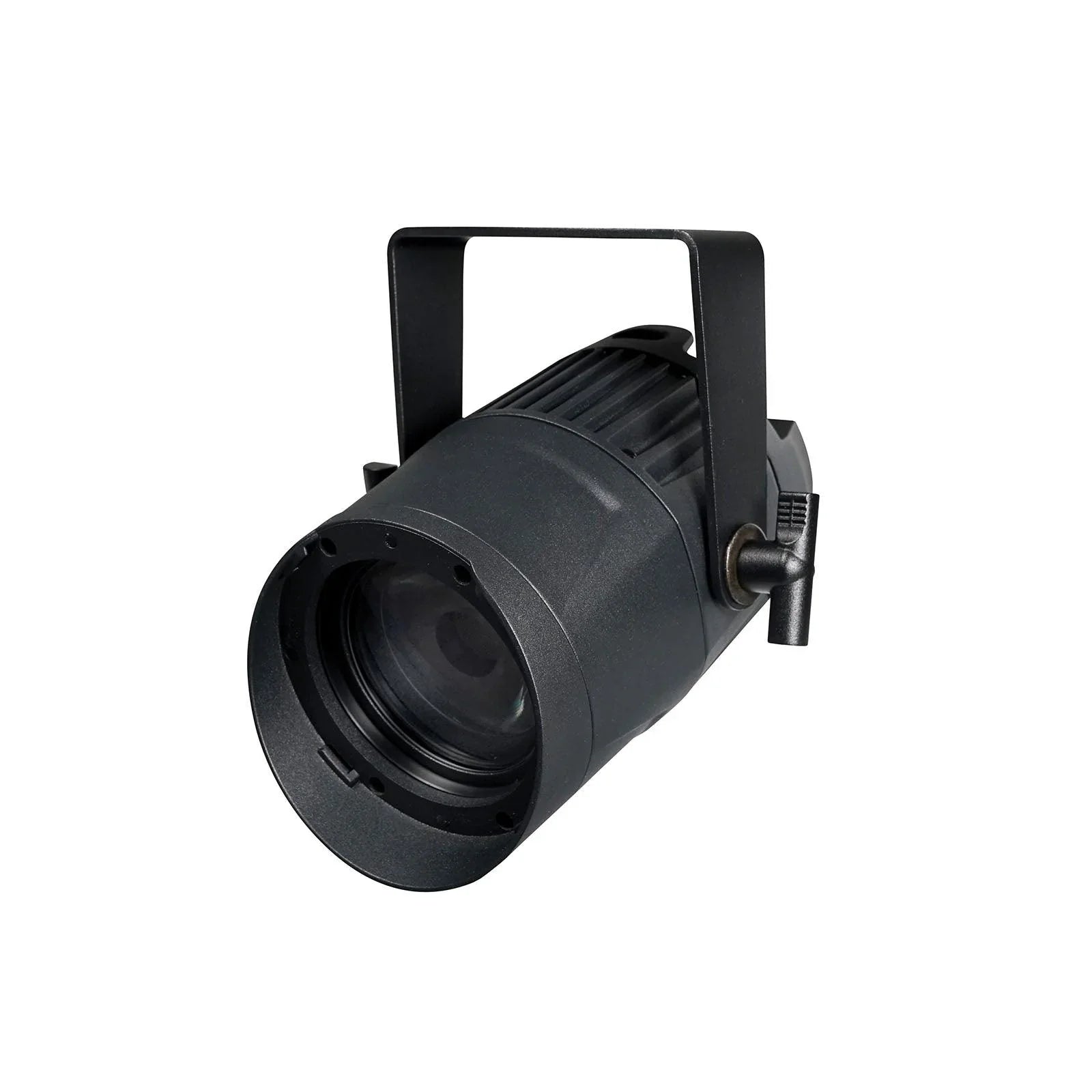

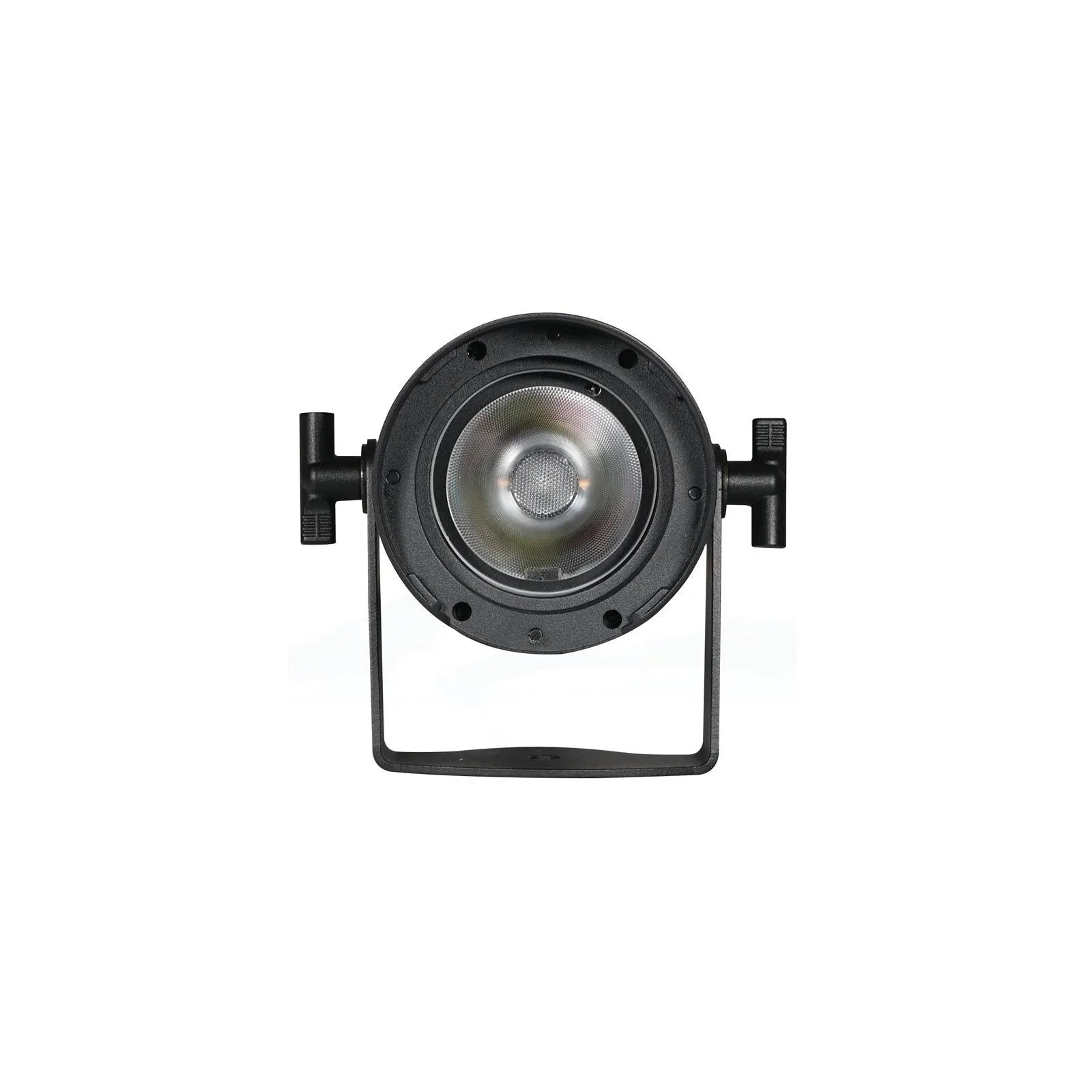

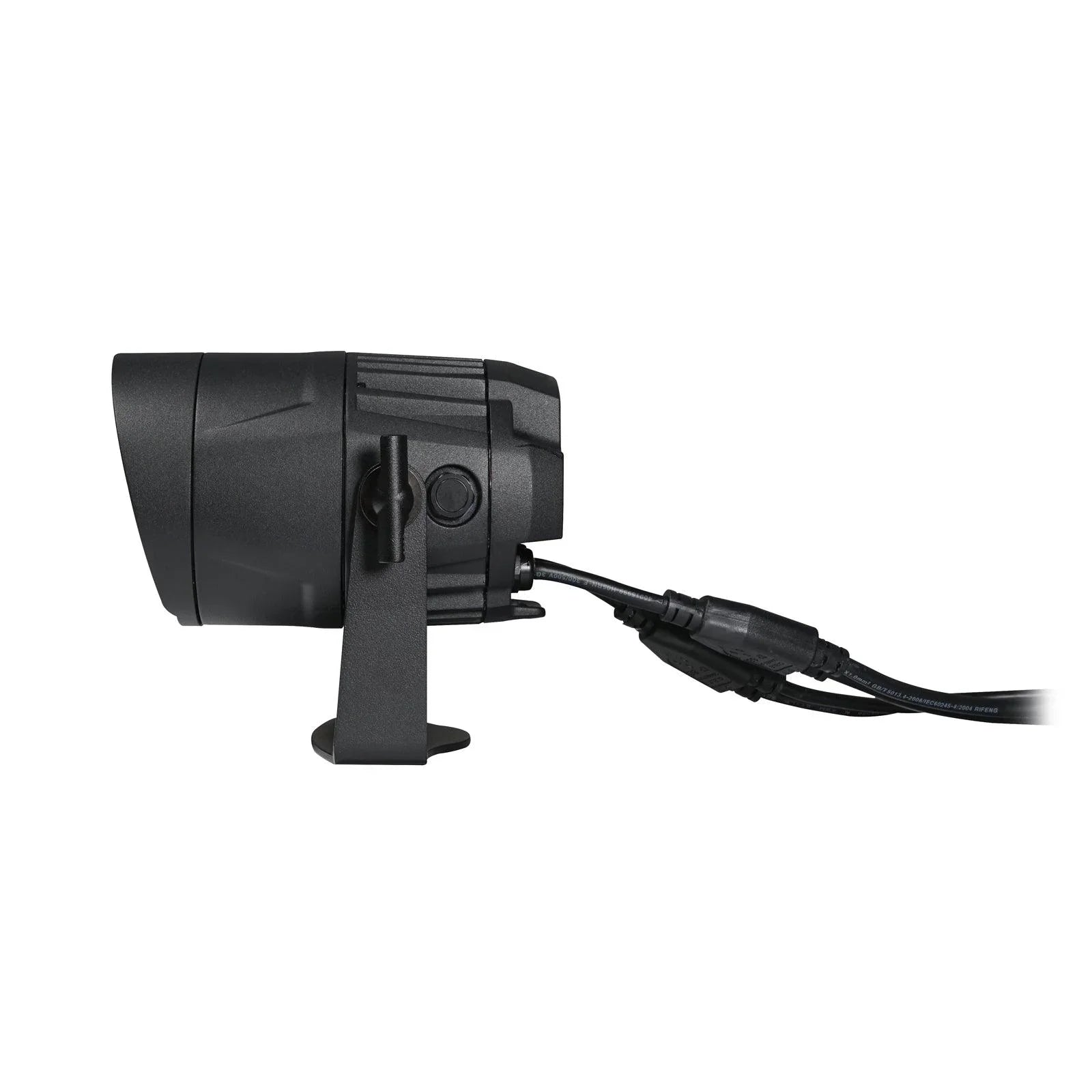

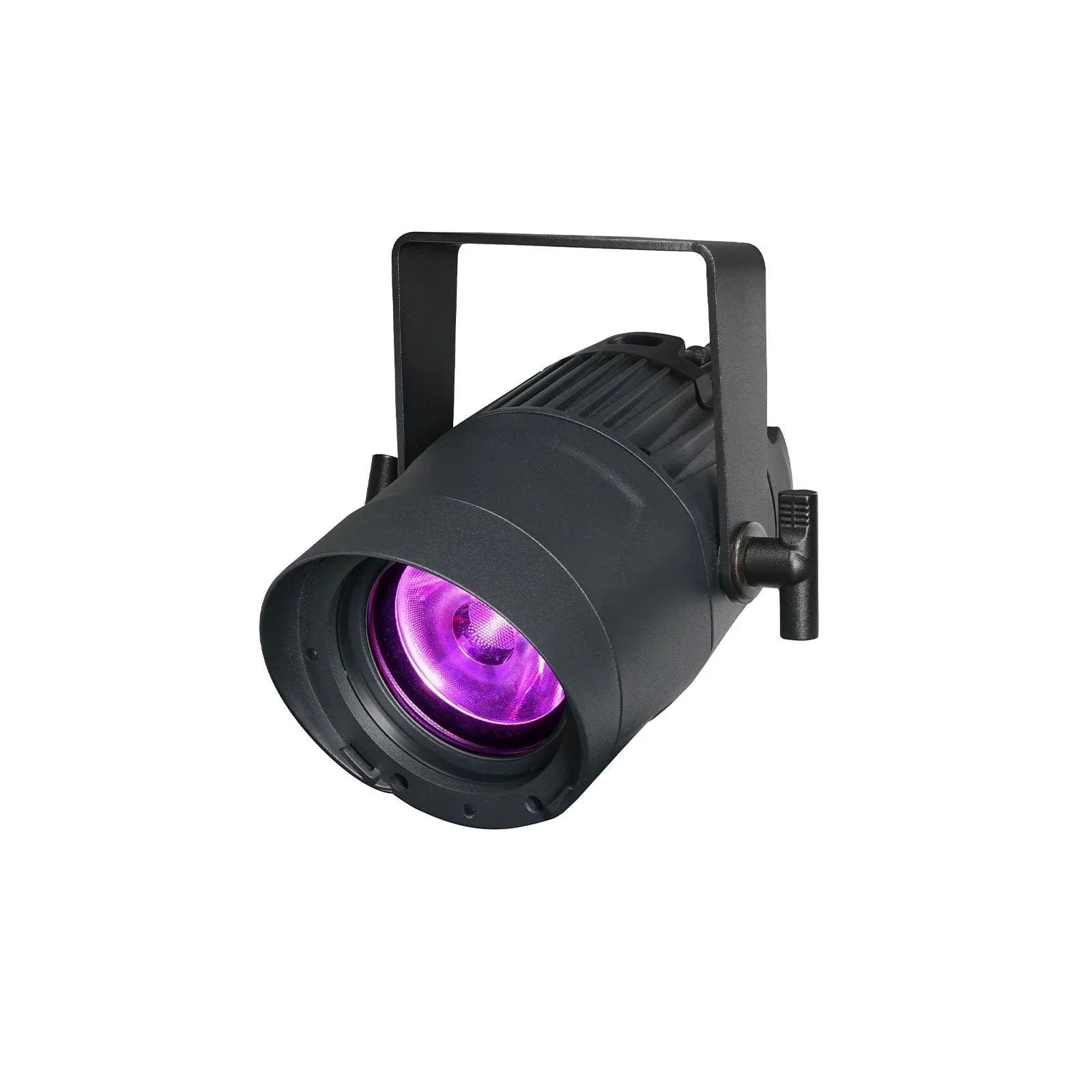

LEDJ Spectra Spot 40 Exterior Fixture Pin Spot

The Spectra Spot 40 is an IP rated LED pinspot, powered by a punchy 40W RGBW LED. The Spectra Spot features a tight 4.5° beam angle natively, an additional two frost lenses are also supplied expanding its versatility (10° and 25°). Super smooth dimming paired with 4 selectable dimming curves and 14 preset refresh rates further add to the abundance of features this compact fixture boasts. The RGBW LED allows for both intense, saturated colours and subtle pastel hues to be created, whilst the convection cooled housing ensures noise free operation. 4 DMX modes are included along with RDM, built-in programs and master/slave. The compact fixture also has IR capabilities, and its 360° rotatable snoot provides an anti-glare shield.

• 1 x 40W quad-colour LEDs (RGBW)

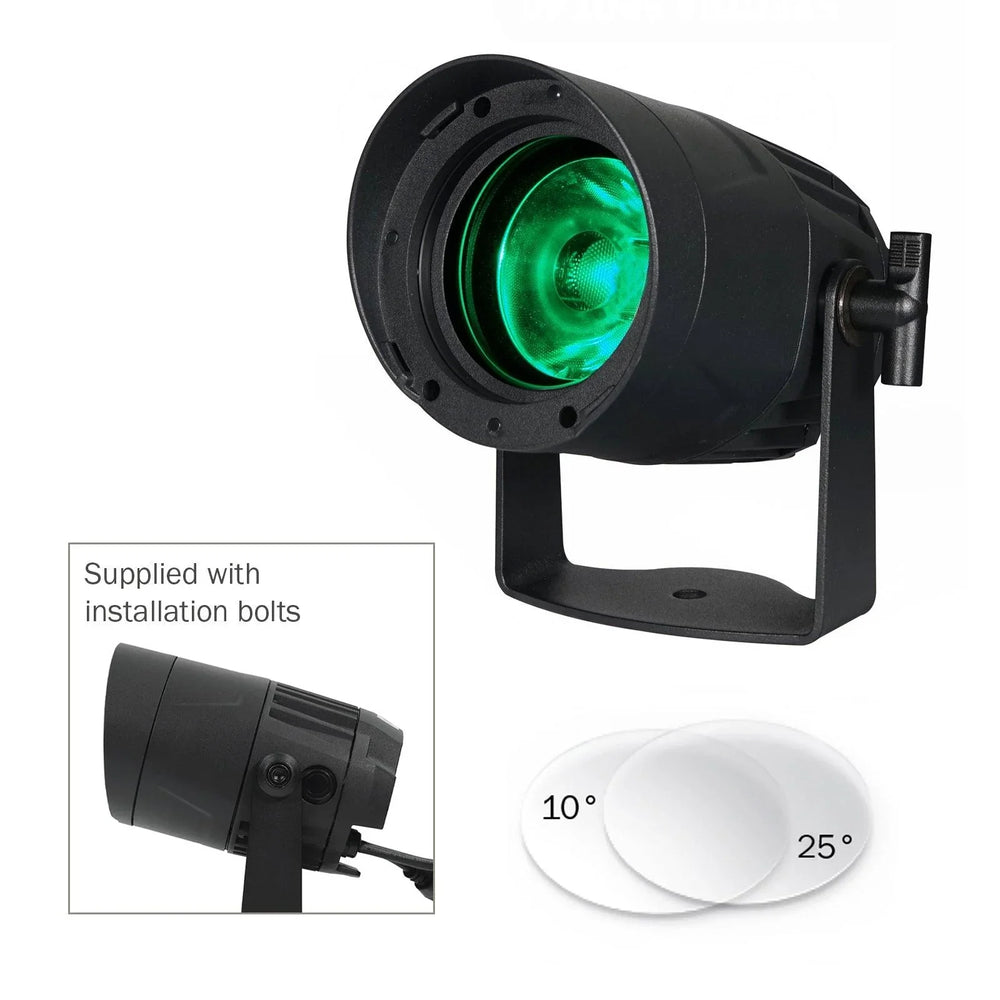

• Beam angle: 4.5° native, 10° and 25° frost lenses supplied
• 4.5° - 22,667 Lux @ 2m (full on)
• 10° - 8,788 Lux @ 2m (full on)
• 25° - 831 Lux @ 2m (full on)
• Refresh rate: 14 selectable presets between 900Hz-25kHz
• DMX channels: 4/6/8 or 9 selectable
• RDM (Remote Device Management)
• Static colour, colour change, colour fade and master/slave modes
• 0 - 100% dimming
• 4 dimming curves: Linear, square law, inverse square law and S-curve
• Variable strobe

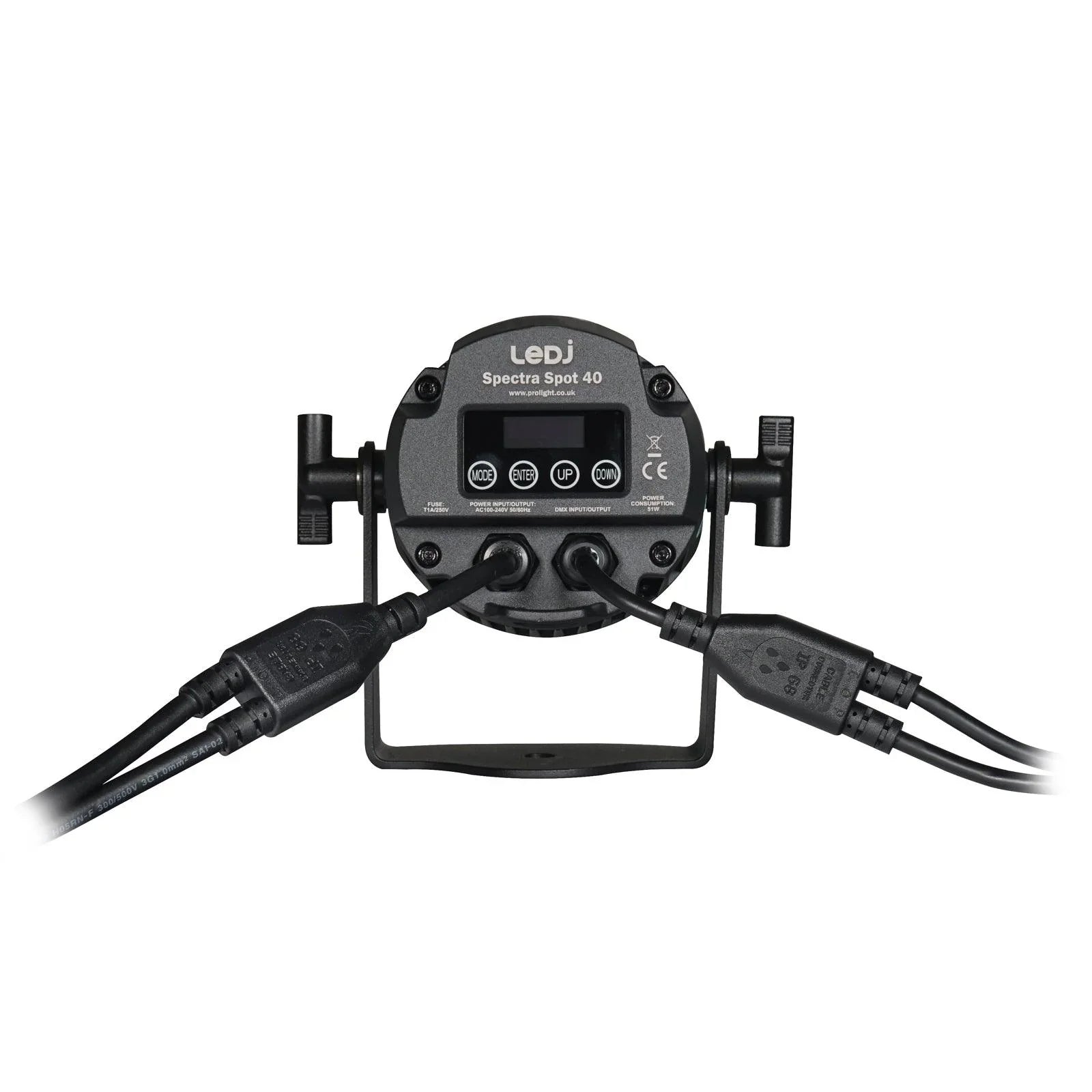

• 4 button menu with OLED display
• Hydralock power input/output trailing connections
• Hydralock DMX input/output trailing connections
• Convection cooled
• 360° rotatable snoot
• Optional IR remote (LEDJ90C)

• Power consumption: 51W
• Power supply: 100~240V, 50/60Hz
• Fuse: F1A 250V
• IP rating: IP65
• Dimensions (H x W x D): 152 x 162 x 177mm
• Weight: 2.1kg
