Mackie SRM-Flex Column PA System

Signature SRM sound

Fill your room. With a 6-driver wide-dispersion array and a 10'' subwoofer driven by a 1300W power amp, you have everything you need to make yourself heard. Experience that crystal-clear SRM sound, and adjust the height of your system to suit your needs. The system comes complete with extenders that let you optimise your system for maximum impact. And with its compact footprint, the system can be positioned almost anywhere in your venue without being obtrusive. Leaving you free to perform without anything getting in your way.

Take control

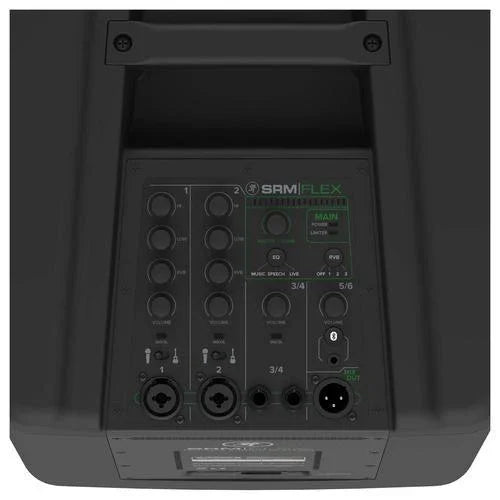

Hook up your mics, instruments, and more with ease. An integrated 6-channel mixer provides you with versatile connectivity options, and intuitive sound-shaping controls. You can even connect media-players for playing music and backing tracks. Plus, with Bluetooth compatibility, you can stream music wirelessly from your Bluetooth-enabled device in seconds.

The mixer boasts a 2-band EQ on channels 1 and 2, allowing you to quickly and easily shape the sound of your mics and instruments. Plus, you can take advantage of three separate voicing modes (Music, Speech, and Live) that enable you to tailor the sound of your system to your specific situation or venue. There's also three phenomenal reverb choices that let you add that finishing touch to your sound. And without the stress of having to navigate around small screens and complex menus, you can make the changes you want without any hassle.

If that wasn't enough, you can download the SRM-Flex Connect™ app for your iOS or Android device. This gives you instant control over your system from the palm of your hand. Adjust channel levels, the EQ, system presets, and more. You can mount your phone to a mic stand for making changes on the fly, or you can even get an engineer to take control of your sound from the audience.

Built for the road

Mackie are renowned for their 'Built-Like-A-Tank' construction. Every Mackie product is built to withstand the demanding nature of live performances, and life on the road. And the SRM-Flex is no different. Enjoy exceptional reliability no matter where you go thanks to a rugged cabinet design and premium components. Plus, with a handy carry bag for the array module and extenders, and a protective cover for your subwoofer and mixer module, you can store and transport your system with confidence.

Features

• Lightweight column PA system with a compact footprint
• 6-driver wide-dispersion array with a 10'' subwoofer
• Mackie's legendary 'Built-Like-A-Tank' design
• All-in-one design with outstanding flexibility - everything you need in one handy system
• Capable of fitting just about anywhere and in any venue
• Universal (100-240VAC) power supply with Power Factor Correction technology
• Consistent performance, even with unstable AC power
• Renowned SRM sound with ultra-wide coverage
• Crystal-clear reproduction with room-filling dispersion
• Height-adjustable design lets you optimise your speaker position
• 1300W of power for maximum headroom and performance
• Suitable for audiences of up to 100 people
• Complete wireless control with SRM-Flex Connect™ for iOS and Android devices
• Pair your smartphone for complete control over levels, EQ, presets, and more
• Bluetooth® connectivity allows for seamless wireless streaming to your PA
• Integrated 6-channel digital mixer with inputs for mics, instruments, and media players
• Professional XLR out for connecting to additional SRM-Flex systems, or a FOH mixer
• 2-band EQ on channels 1 and 2 for intuitive tone-shaping
• Application voicing modes let you tailor your system for a wide variety of situations and venues
• Three excellent-sounding reverbs for adding the finishing touch to your sound
• Intuitive physical controls for hassle-free operation
• No complex menus or small screens

Specifications

• Frequency Range:
  • -10dB: 40Hz - 20kHz
  • -3dB: 50Hz - 20kHz
• Coverage: 90° x 40° (H x V)
• Maximum SPL Peak: 118dB
• LF Transducer: 10'' / 254mm, ferrite magnet
• HF Transducers: 2'' / 51mm, silk dome tweeters x 6
• System Rated Power: 1300W (peak)
• LF Amplifier: 1000W (peak)
  • Rated THD: Less than 1-percent
  • Cooling: Convection
  • Design: Class-D
• HF Amplifier: 300W (peak)
  • Rated THD: Less than 1-percent
  • Cooling: Convection
  • Design: Class-D
• Voicings: 3 x speaker modes
• Reverb: Off, 1-3
• Low EQ: +5/-15dB at 90Hz
• High EQ: +5/-15dB at 6kHz
• Input Connectors:
  • 2 x female XLR, balanced
  • 4 x 1/4'' balanced/unbalanced
  • 1/8'' stereo
• Mic-Line Impedance: 8 k Ohms, balanced
• 1/4'' Hi-Z Impedance: 1 M Ohm, unbalanced
• Mix Out: Male XLR, balanced
• Mix Out Impedance: 600 Ohms, balanced
• Bluetooth:
  • Protocol: 4.2
  • Function: Audio streaming and user interface control
  • Class: Class 1
• Crossover Frequency: 600Hz (18dB Butterworth)
• Input Protection: Peak and RMS limiting, Power supply and amplifier thermal protection
• Status Info: Input and output levels, Reverb levels, Sig/OL, EQ settings, Speaker mode
• Cabinet:
  • Design: Asymmetrical
  • Material: Polypropylene
  • Finish: Black polyurea
  • Grille: Perforated steel, powder coated black
  • Handles: One on the top panel of the base station
  • Display LEDs: Defeatable power (front), Power (top), Limiter (top), Bluetooth (top)
• Power: Switchmode 100-240VAC, 50/60Hz, 110W (3-pin IEC 250VAC, 10A male AC connector)
• Dimensions:
  • Base Station: 432mm x 330mm x 361mm / 17'' x 13'' x 14.2'' (H x W x D)
  • HF Section:
    • Height of Each: 572mm / 22.5''
    • Total Height: 1715mm / 67.5''
    • Total Height with Base: 2007mm / 79''
    • Width: 71mm / 2.8''
    • Depth: 76mm / 3''
• Total Weight: 13.4kg / 29.6lbs
