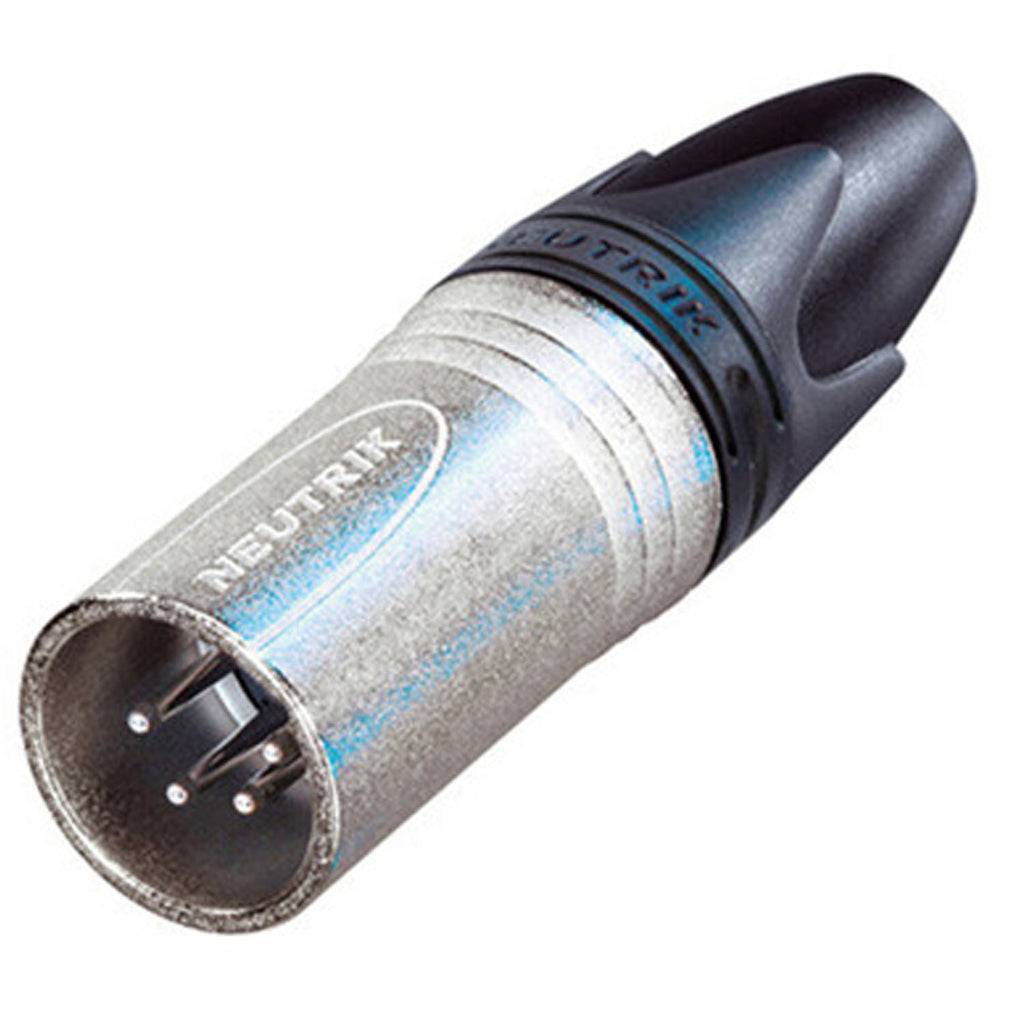

Neutrik NC4MX Male 4 Pin XLR Line Connector
Product Description
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
Capacitance Between Contacts: = 7 pF
Contact Resistance: = 3 mO
Dielectric Strength: 1,5 kVdc
Insulation Resistance: > 10 GO (initial)
Rated Current Per Contact: 10 A
Rated Voltage: < 50 V
Cable O.D. 3.5 - 8.0 mm
Insertion Force: = 20 N
Withdrawal Force: = 20 N
Lifetime: > 1000 mating cycles
Wiresize max. 1.5 mm² (16 AWG)
Locking Device:Latch lock
Boot:Polyurethan
Contact Plating:2 µm Ag over 2 µm Ni
Contacts:Brass (CuZn39Pb3)
Insert:Polyamide (PA66)
Locking Element Shell:Zinc diecast (ZnAl4Cu1)
Shell Plating Strain Relief:Nickel / Polyacetal (POM)
Flammability:UL 94 V-0
Standard Compliance:IEC 61076-2-103
Protection Class:IP 40
Solderability:Complies with IEC 68-2-20
Temperature Range:-30 °C to +80 °C
