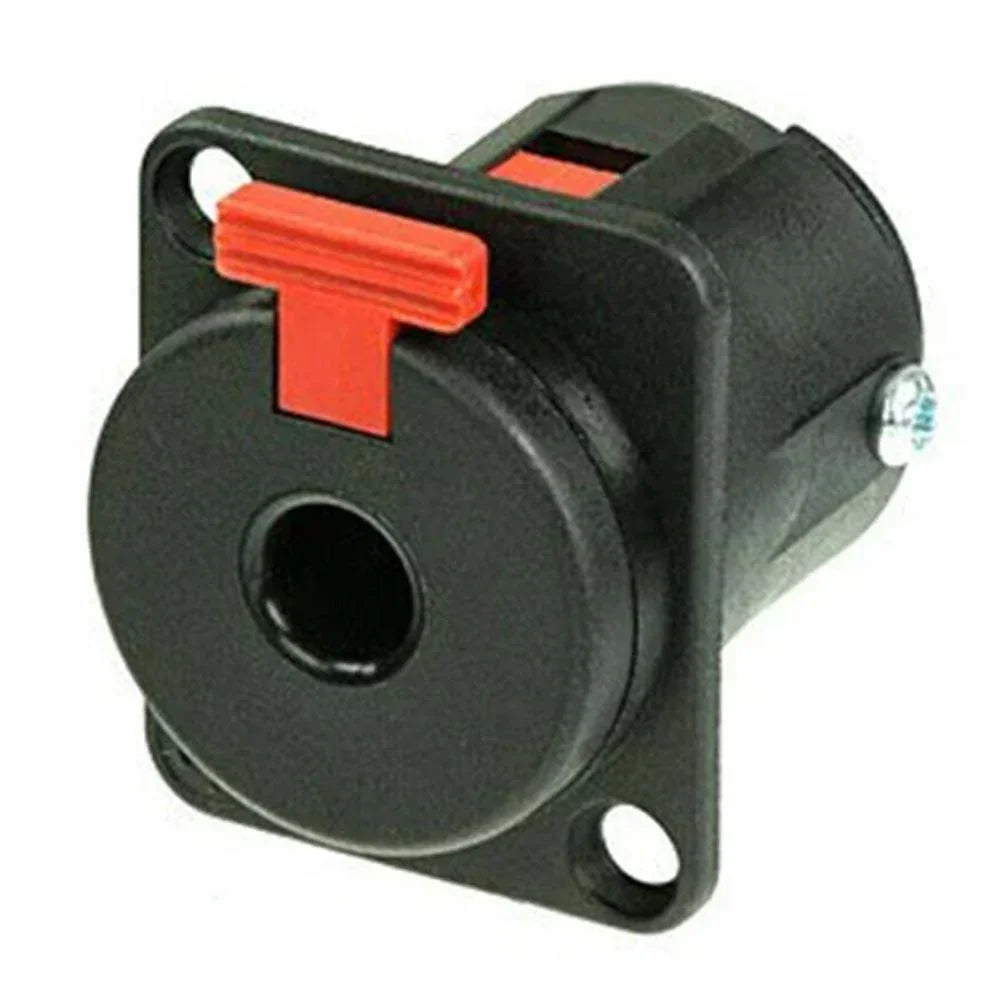

Locking + in phone jack, D-size shell, black plastic housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance.
- Gender: female
- Dielectric strength: 1 kVdc
- Rated current per contact: 10 A
- Wire size: 1 mm
- Wire size: 18 AWG
- Wiring: solder contacts
- Locking device: latch lock
- Mounting direction: front
- Chassis shape: D
- Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Priced per connector
