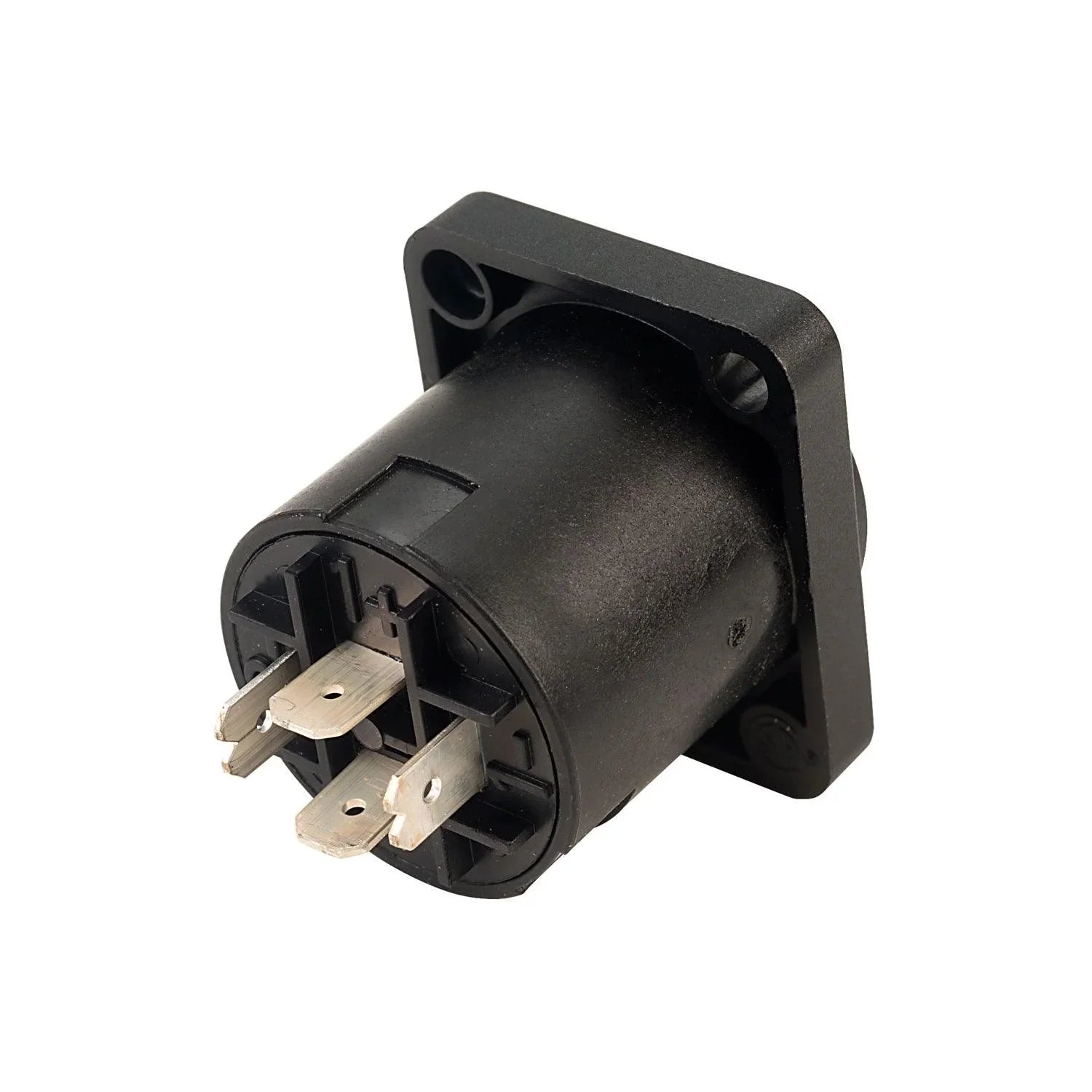

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
- Black D-size flange.
- Countersunk thru holes.
- 3/16in flat tabs.
- - Airtight design - optimized for speaker applications.
- - Body colour: Black
- - Rated current per contact: 30 Amp rms continuous
- - Rated current per contact: 40 Amp audio signal, duty cycle 50 %
- - Dielectric strength: 4kV peak
- - Rated voltage: 250V (Insulation)
- - Wiring: flat tabs for 3/16in (FASTON 4.8 x 0.5 mm) or soldering
- - Mounting direction: Front & rear
- - Layout: Standard hole position, through holes
- - Priced per connector: available in any quantity

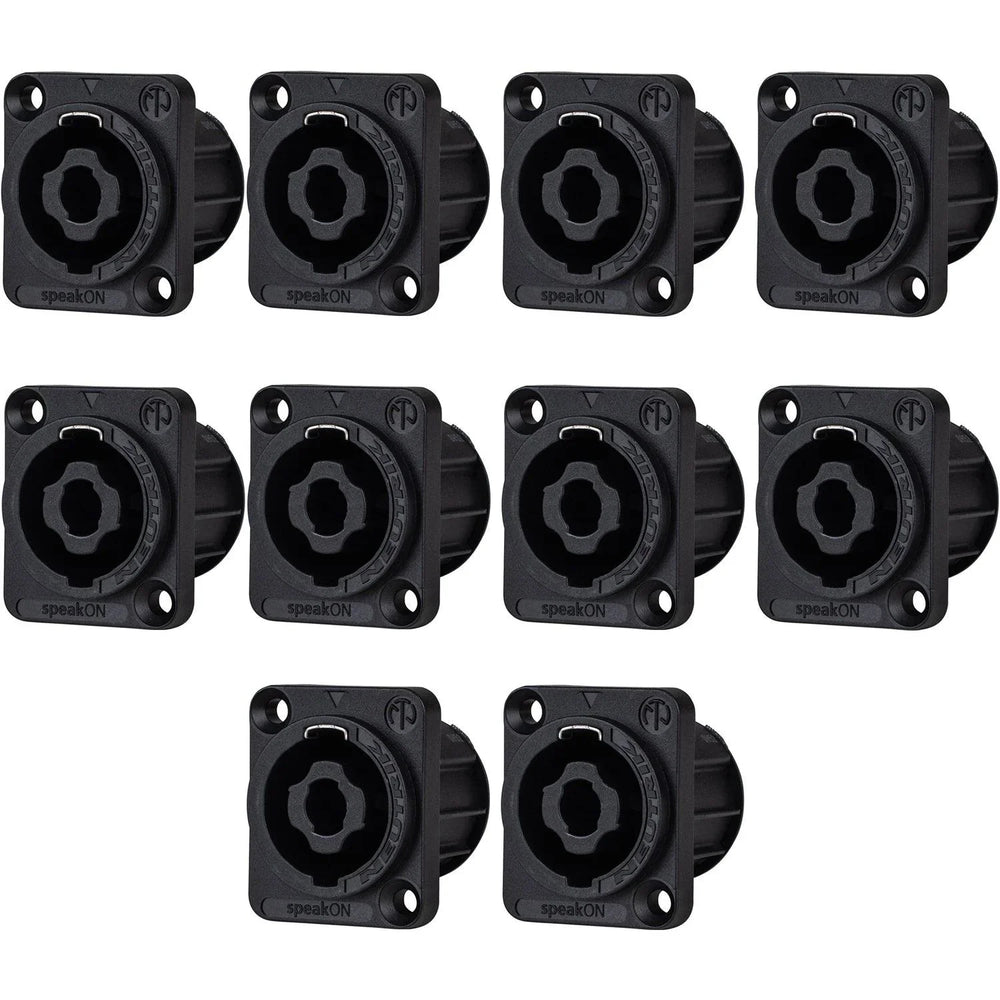

- Pack of 10 x Speakon NL4MP Connectors
