Nuetrik NAC3MPX-TRUE1 powerCON TRUE1 Mains Chassis Inlet CBC airtight
Product Description

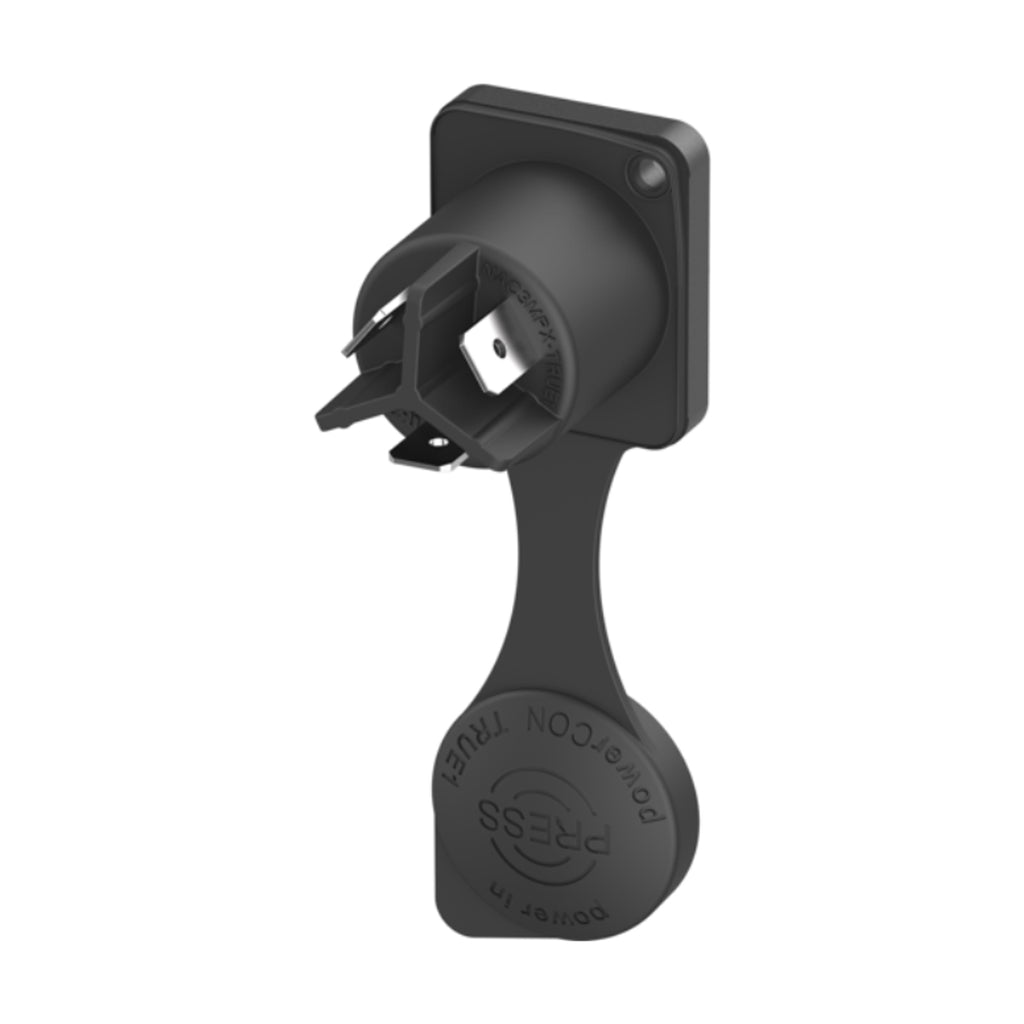

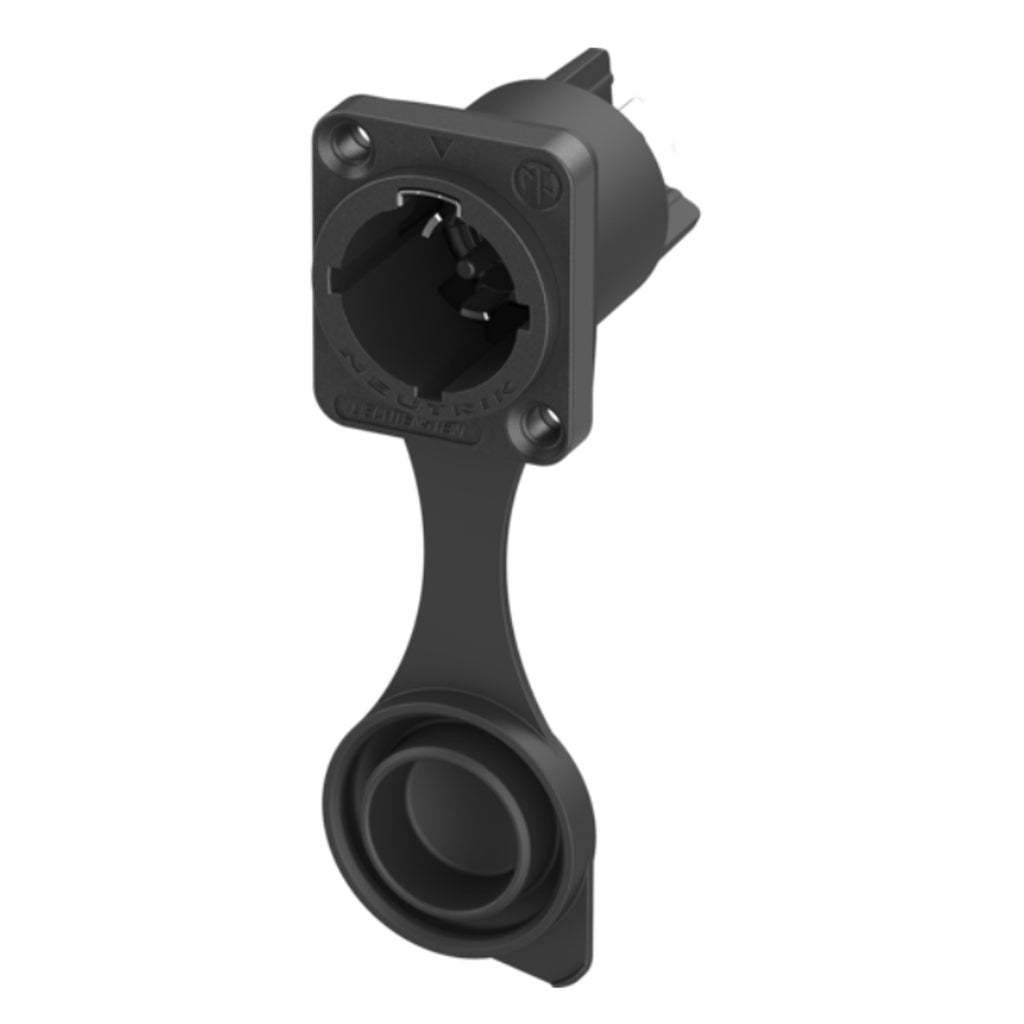

Appliance inlet connector, single-phase chassis connector.
powerCON TRUE1 airtight is the easy to use locking 16A true mains connector for the most harsh and demanding applications with air tightness for True Outdoor Protection.
A part of Neutrik’s premium powerCON True1 line, it is created to focus on safety, performance and absolute reliability. Integral sealing design with sealing cap and fully airtightness patented technology.
Extremely robust and reliable, it can replace appliance couplers wherever a very rugged solution is needed and a twist-locking system, working in combination to guarantee a safe power connection.
The powerCon TRUE1 AirTight features breaking capacity (CBC), allowing for connection or disconnection under load or live.
Technical specifications
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65, IP66 and IP67 (mated or with closed cap)
- Completely airtight - +/- 50kpa during 1 min. with a pressure drop of max. 5Kpa
| Type | Inlet |
|---|---|
| Terminals | 1/4" Flat Tab Terminals |
| Weight | 40g |
| Finish | Black |
