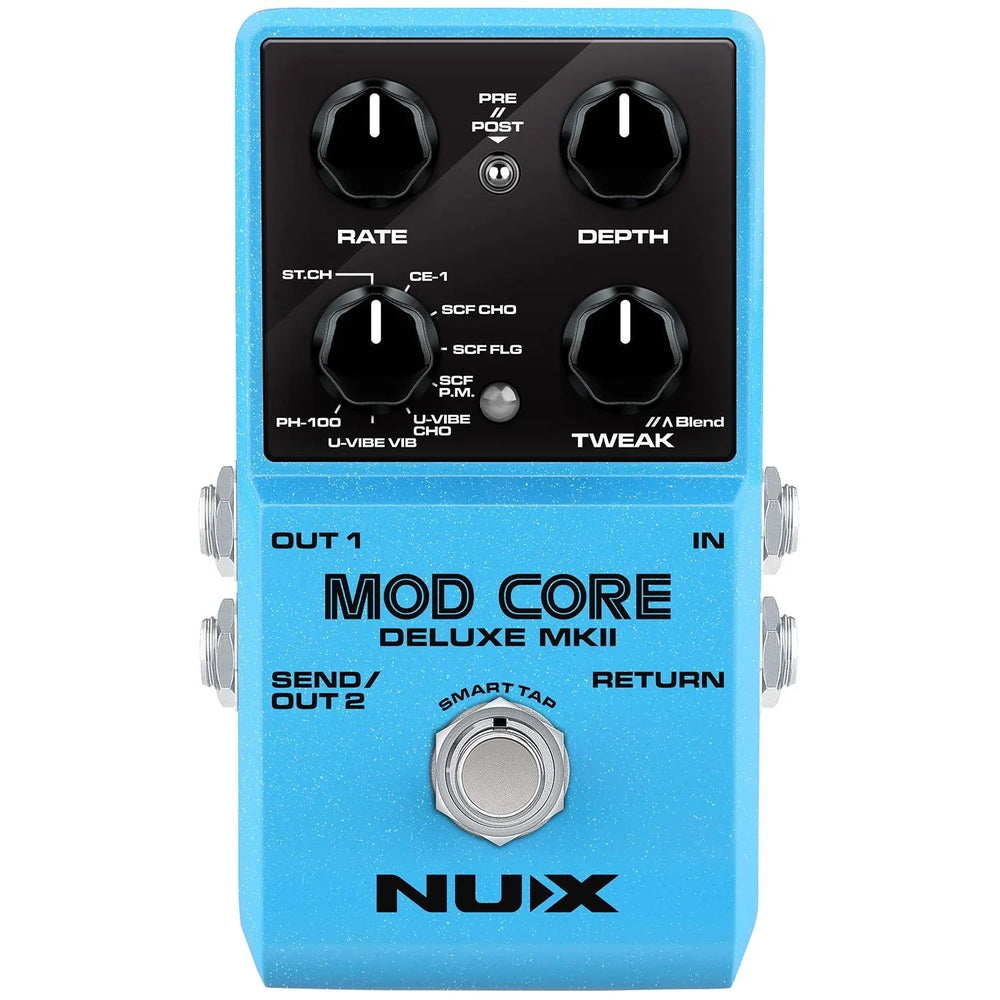

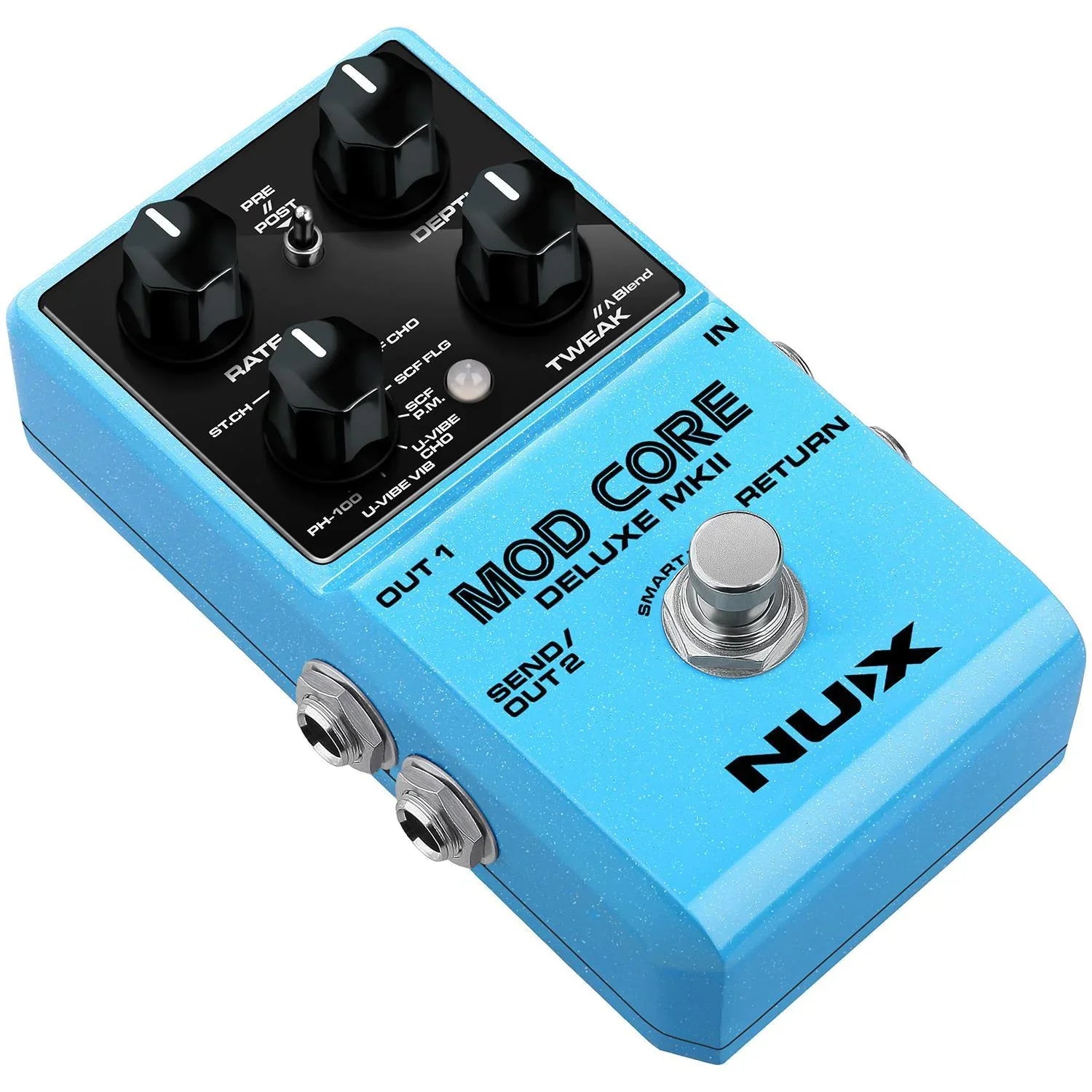

NUX Mod Core Deluxe mkII Modulation Pedal
Product Description
Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.
- 8 distinct modulation effect models
- Analog dry signal path for low noise and zero latency
- Mono or stereo output
- Built-in send-return loop
- 4 paramter control for effect settings
- USB-C for firmware updates
- Power supply9Vdc (PP3) battery or optional power adaptor
- DC input connectionDC5521 jack (for optional adaptor - pin-negative)
- Current consumption<120mA
- ControlsRate, Depth, Tweak & Mod type
- ModesST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
- InputsInstrument in & Loop return (6.3mm mono jack)
- OutputsOut1 & Out2/Loop send (6.3mm mono jack)
- Tempo range50-200 bpm
- Sampling format48kHz, 24-bit
- Input impedance1M ohm
- Output impedance1k ohm
- Dynamic range104dB
- Dimensions122 x 72 x 47mm
- Weight270g
