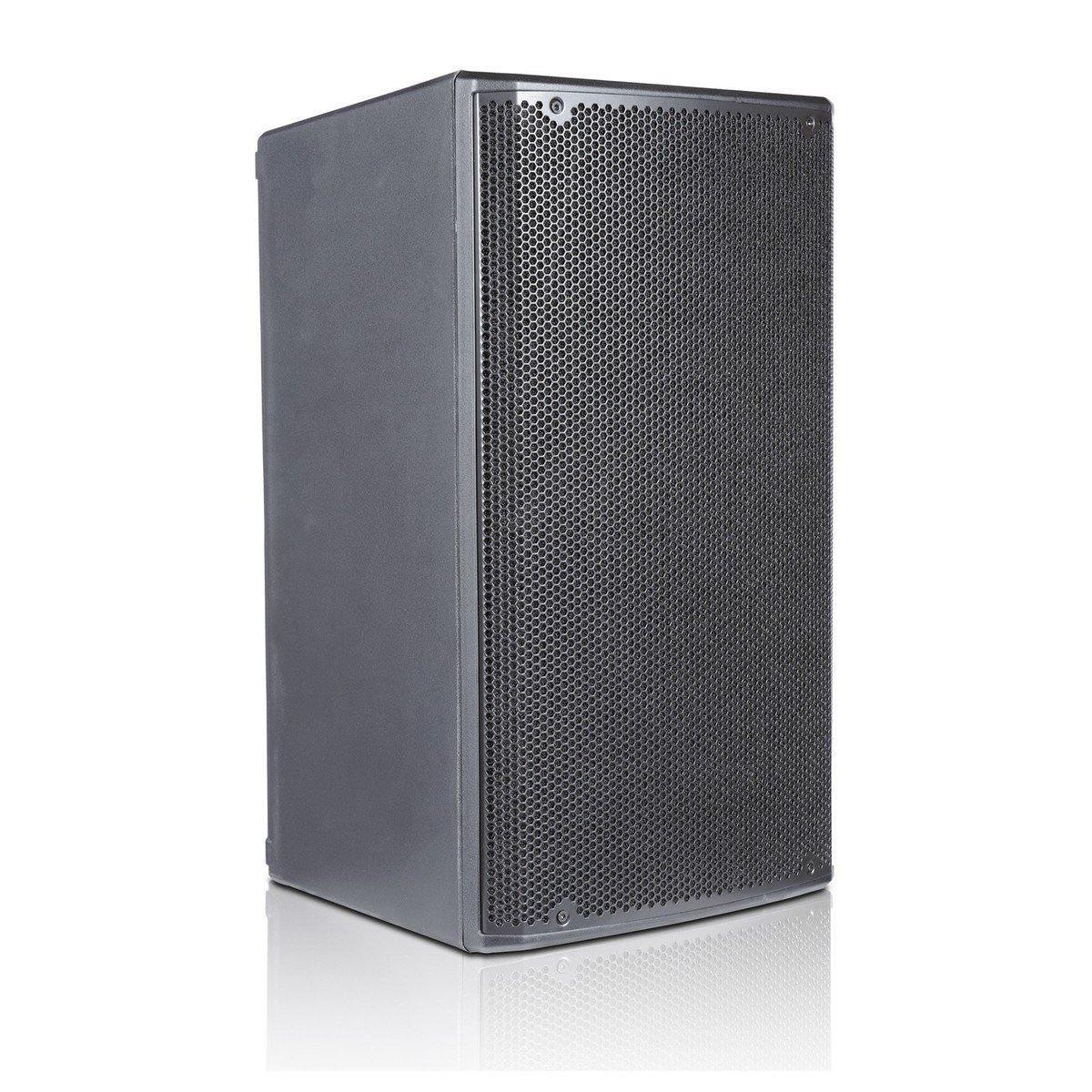

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.
Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Technical Data
Speaker Type - 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] - 50 - 20.000 Hz
Frequency Response [- 3dB] - 56 - 19.000 Hz
Type HF - Compression driver
Horizontal Directivity - 100° (85° up/120° down)
Vertical Directivity - 85° (+ 25°/-60°)
Amplifier
Amp Technology - Amp SMPS Power supply dual range
Processor
AD/DA Converter - 24 bit/48 KHz
System Presets - Rotary Encoder (8 Presets)
X-Over Frequency - 1800 Hz
Limiter - Peak, RMS, Thermal
Advanced DSP Functions - Linear Phase FIR Filters

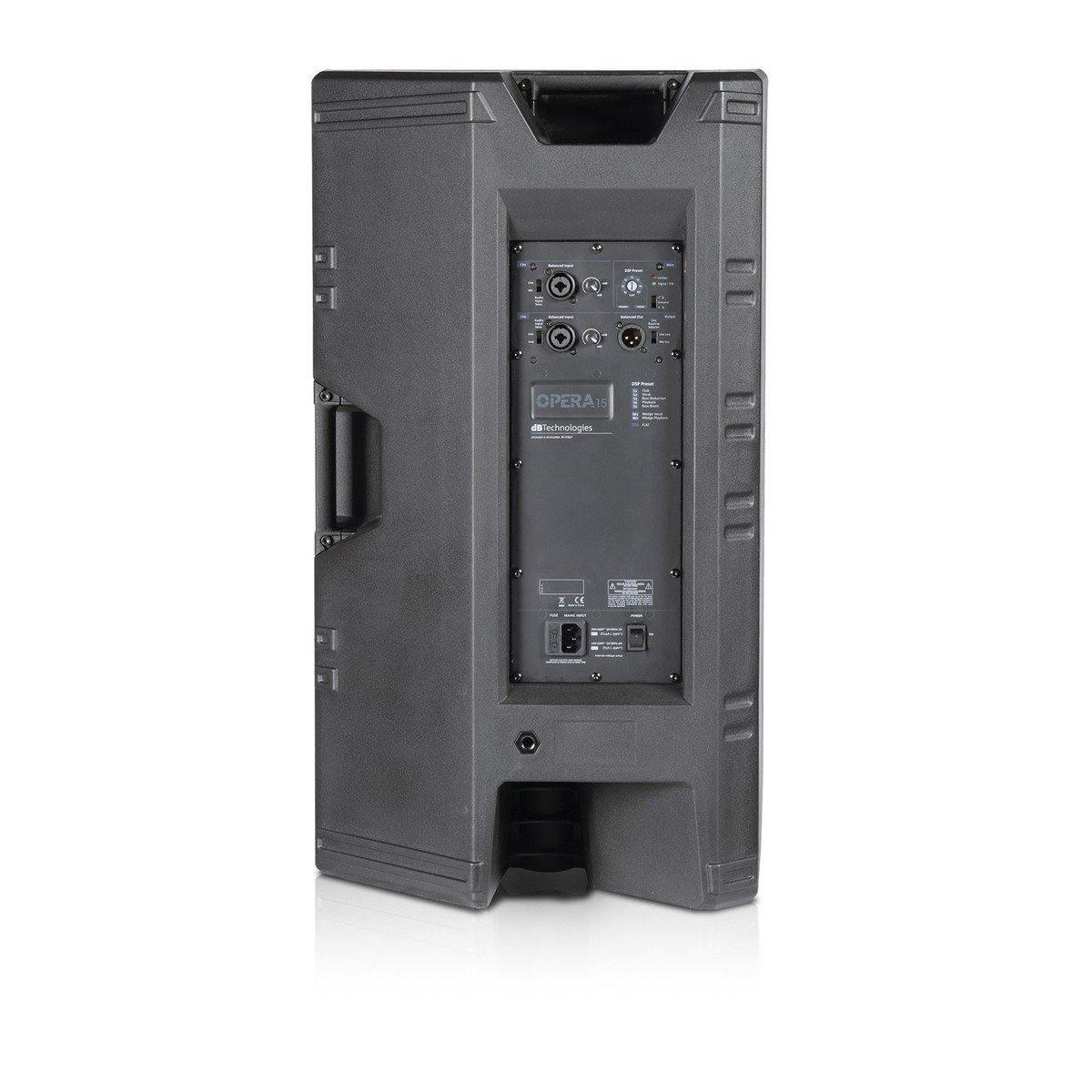

Input
Signal Input - 1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst - Signal Output
1x XLR Male (CH1 Link/Mix OUT) - Selectable
Mechanics
Housing - Polypropylene with internal frame

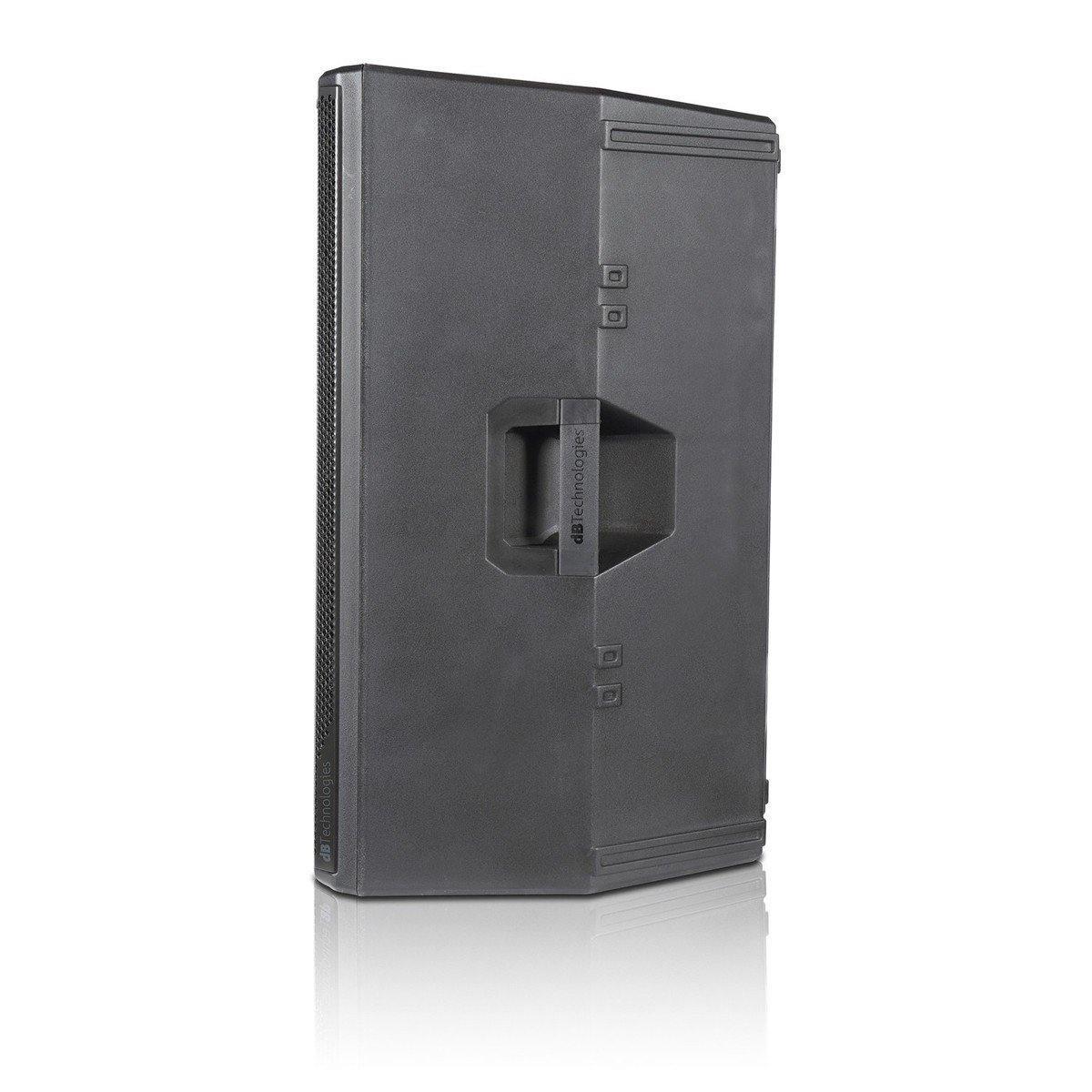

Handles - 1 on left Side, 1 on Top
Rigging Points - 2XM10 on Top + 1x M10 on Back

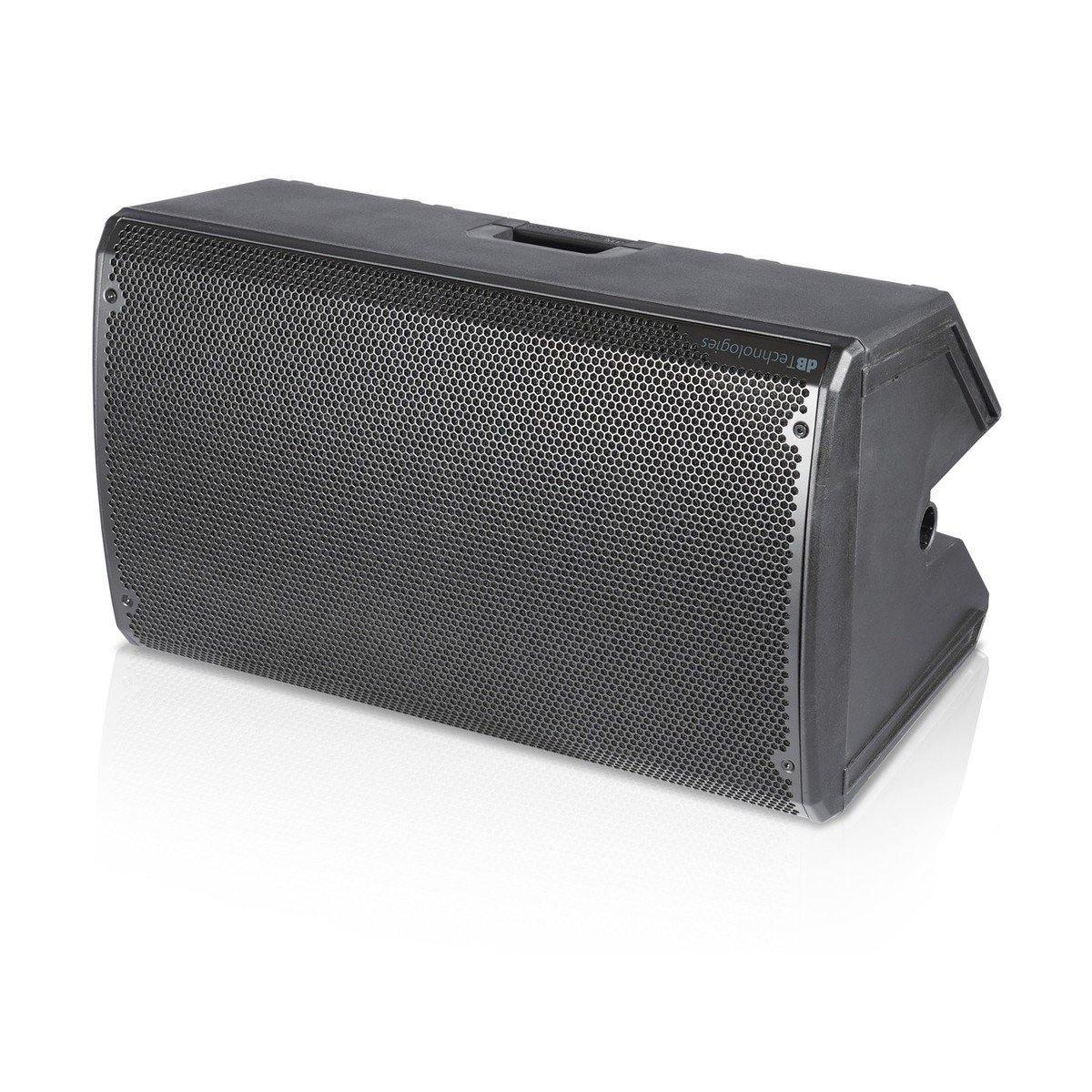

Angles up - Monitor use 45°
Width - 420 mm (16.54 in)
Height - 722 mm (28.43 in)
Depth - 419 mm (16.50 in)
Weight - 18.3 kg (40.34 lbs)
