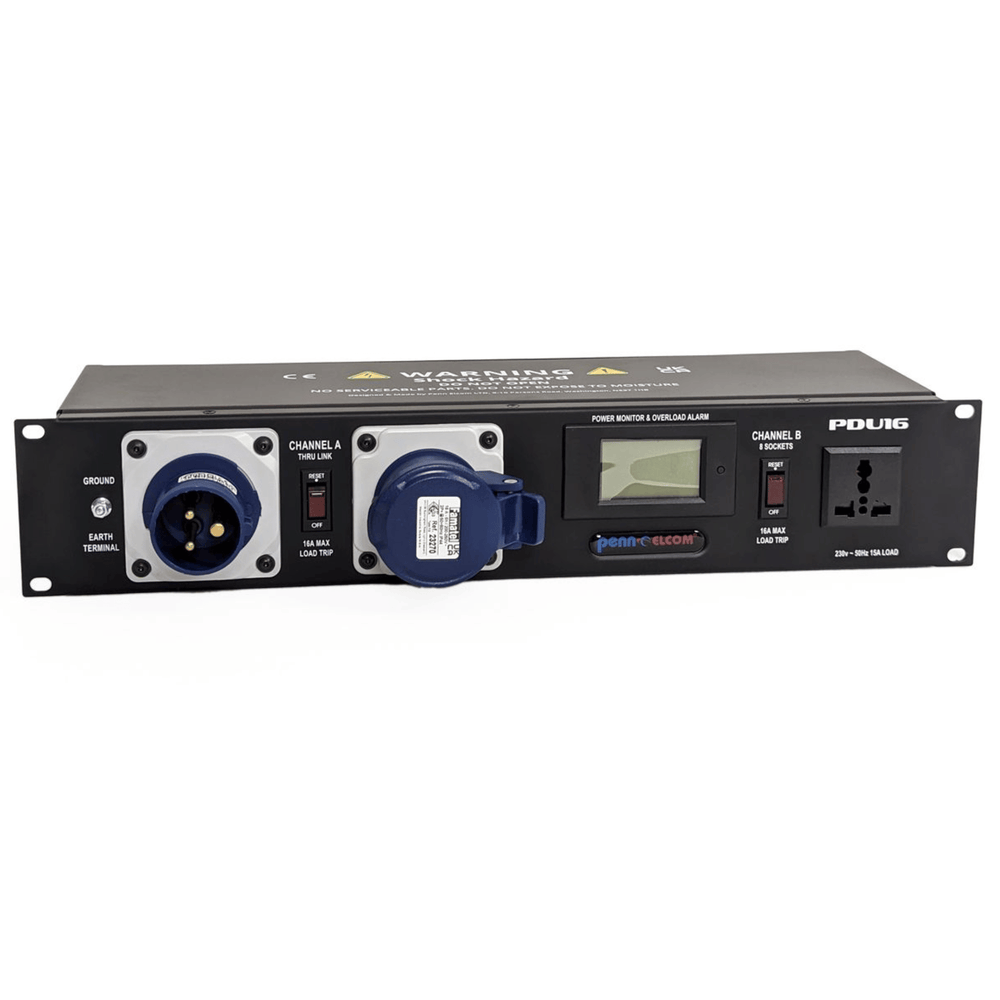

Penn Elcom 32A Rack Mount PDU With 8 x Universal Sockets PDU16-UN32
Product Description
2U 32 Amp AC Rack Mount PDU with 8 x Univeral Sockets, Overload Protection & Power Monitoring
2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Multimedia Theatre & Touring rack applications.
Circuit A:
Main Input - C-FORM 240V 32A IP44 Panel Mount Appliance Inlet
Protection - Illuminated Circuit Breaker overload protection between dual 16A sockets
Output - C-FORM 240V 16A IP44 Panel Mount Appliance Outlet
Circuit B:
Output - 8 Universal sockets useable with plugs from the UK, US, Europe and Australia, with a Maximum Combined Load 16A. (Schuko type plugs have a 2 pin connection only) For full universal plug application guide see appendix A
Protection - Illuminated Circuit Breaker 16A overload protection
LCD Monitor - LCD Power Monitor giving Voltage, Current , Power and Energy Levels.
Earth Link - M4 Screw Terminal for Rack Grounding
Usage:
Nominal Voltage: 110V-230V
Usable Voltages: 110V-240V full range
Frequency: 50/60HZ full range
Max. A/C Output: Current 32A
Case Size: 87 x 98 x 430mm (O.A.483mm) / 3.42in x 8.85in x 16.92oin
Weight: 2.5kg (5.5lbs)
All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
