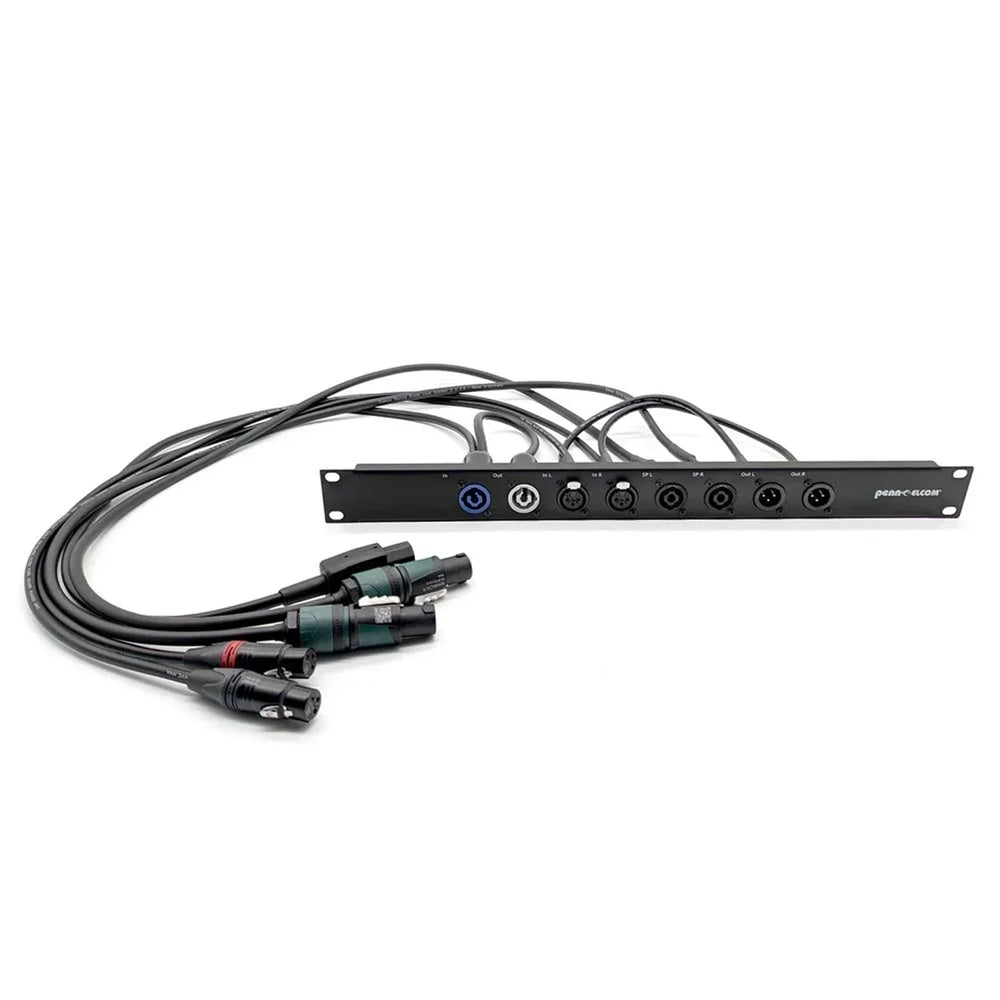

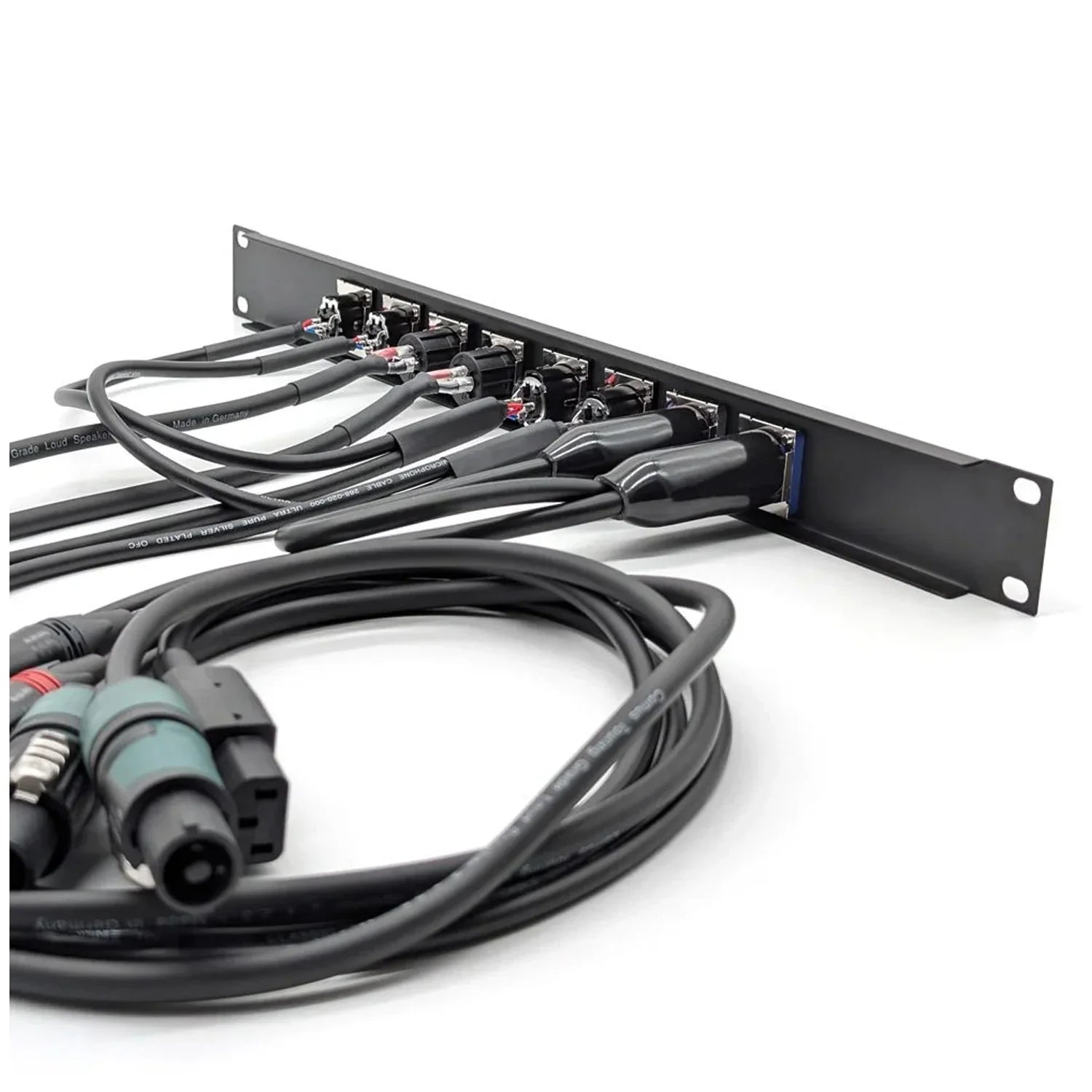

Penn Elcom 1U Eight-Way Rack Panel with XLR, Speaker and Power Links with 1m Tails

1U Height-Way Rack Panel with:

 - 1 x PowerCON Mains Input 3-Pin Chassis to 1 x PowerCON Mains Output 3-Pin Chassis and IEC In-Line Shrouded Socket with 1m Tail


 - 2 x 3-Pin MXLR Chassis Connectors to 2 x FXLR Chassis Connectors and 2 x MXLR In-line Connectors with 2 x 1m Tour Grade Microphone Tails

 - 2 x SpeakON Chassis Connectors to 2 x SpeakON In-line Connectors with 2 x 1m Tour Grade Speaker Tails

A part of our loaded panel series, make it easy to install and mount essential equipment into your rack hardware, console, furniture, or equipment.

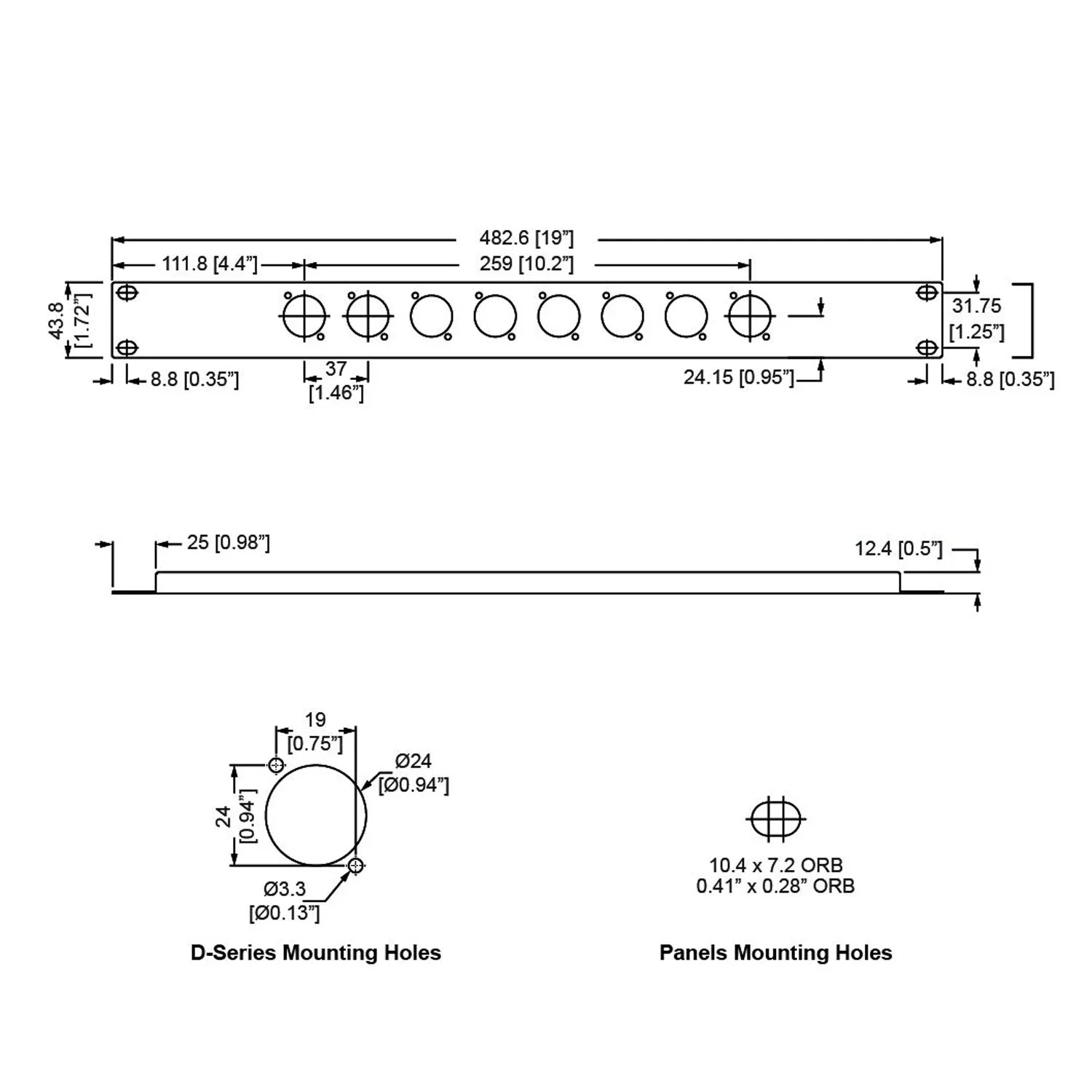

Set in a R1269/1UK/08 - 1U Rack Panels Punched for 8 x D-Series Connectors, the R1269/1U/08-PCFMS is the best choice for XLR access audio, and lighting applications, offering reliable and robust connection for touring racks and AV installations.

This panel includes:

- 4 x CONC3FDLXBAG - Neutrik XLR 3 Pin Female Chassis DLX Black Body NC3FD-LX-BAG
- 4 x CONC3MXXBAG – Neutrik Black Male XLR 3 Pin Cable NC3MXX-BAG
- 2 x CONL4MPXX – Neutrik SpeakON 2 Pole Chassis D Flange NL2MPXX
- 1 x CONAC3MPXXA – Neutrik PowerCON Mains Input 3 Pin 20A Chassis NAC3MPXXA
- 1 x CONAC3MPXXB - Neutrik PowerCON Mains Output 3 Pin 20A Chassis NAC3MPXXB
- 2 x CONSCDR - Neutrik D Size Rear Protector Soft Plastic Cover SCDR
- 1 x COM22SA - IEC In-Line Shrouded Socket 10 Amp Easy Connection ARTNR-794
- 1 x CAMV65BK – 2m Van Damme Black Tour Grade Classic XKE Microphone Cable 268-020-000
- 2 x CASV254 – Van Damme 4 Pair x 2.5mm Multicore Tour Grade Speaker Cable 268-542-000
- 2 x CONL4FXXWS-D – Neutrik SpeakON 4 Pole Plug Cable 6-12mm NL4FXX-W-S
- 1 x COXXR2 – Neutrik Coloured Ring Red with ident for FXX/MXX XXR-2
- 8 x COMFD - M3 Mounting Frame for All D-Size Chassis MFD
- 16 x M3 Screws


CONC3FDLXBAG Features

 - 3 pole female cable chassis with black metal housing and silver contacts

 - All metal housing offers best overall RF protection and electromagnetic shielding

 - New duplex ground contact for excellent contact integrity between chassis and cable connector

Learn more on our dedicated product page.

CONC3MXXBAG Features

 - 3 pole male cable connector with black metal housing and silver contacts

 - The next generation of the worldwide-accepted standard of XLR cable connector.

 - Male connector with improved locking recess without window, more stringent housing increases durability

Learn more on our dedicated product page.

CONL4MPXX Features

 - 4 pole chassis connector

 - Black D-size flange,

 - Countersunk thru holes,

 - 3/16" flat tabs.

Learn more on our dedicated product page.

CONAC3MPXXA Features

 - Lockable appliance inlet connector

 - 3/16" flat tab terminals

 - Extremely robust and reliable with breaking capacity (CBC)

Learn more on our dedicated product page.

CONAC3MPXXB Features

 - Lockable single-phase outlet connector

 - 3/16” flat tab terminals

 - Fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.

 - Extremely robust and reliable with breaking capacity (CBC)

Learn more on our dedicated product page.

CAMV65BK Features

 - Best for broadcast, live sound, stage, and presentations for mic and line level analogue balanced audio.

 - Tightly packed cotton fillers ensure no static build-up and even capacitance.

 - Further improved outer jacket ensures cable remains flexible in sub-zero temperatures

Learn more on our dedicated product page.

CASV254 Features

 - Multicore Cable – 4 x 2.50mm2

 - Best for low-impedance speaker systems as well as presentations and live sound.

 - Optimised for dynamic use, with core count and conductor size to accommodate almost all potential speaker signals.

Learn more on our dedicated product page.

CONL4FXXWSD Features

 - 4 pole speakON cable connector

 - Screw terminal assembly

 - Chuck-type strain relief for cable diameters 6 to 12 mm.

Learn more on our dedicated product page.
