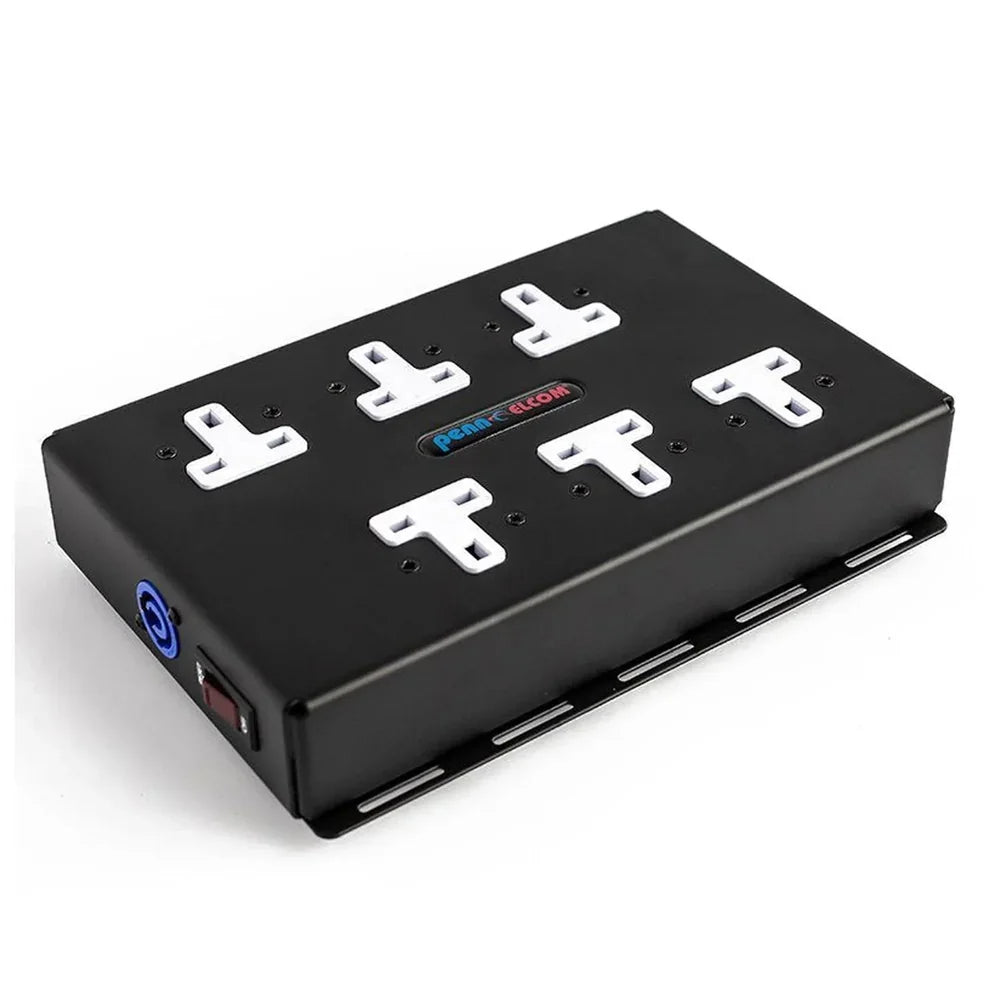

20A AC Pro Stage and Truss Mount Plug Board

This power distribution board is built for professional event use, with a super tough steel case and high-spec components.

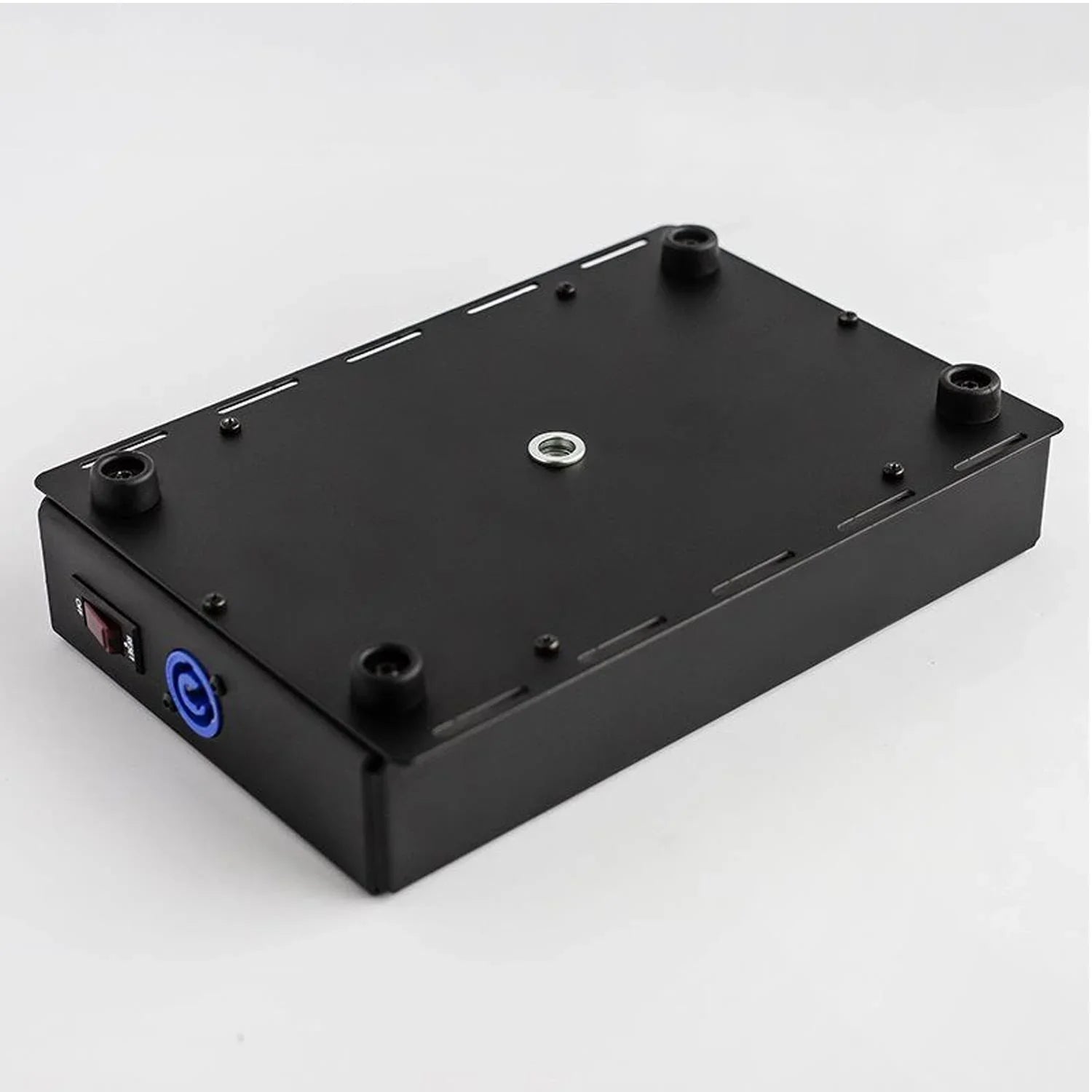

Designed for mounting, it comes with a rear M10 captive nut fixing for coupler attachment to truss and stage fixings. Also has side slots for velcro or cable ties to help secure the unit.

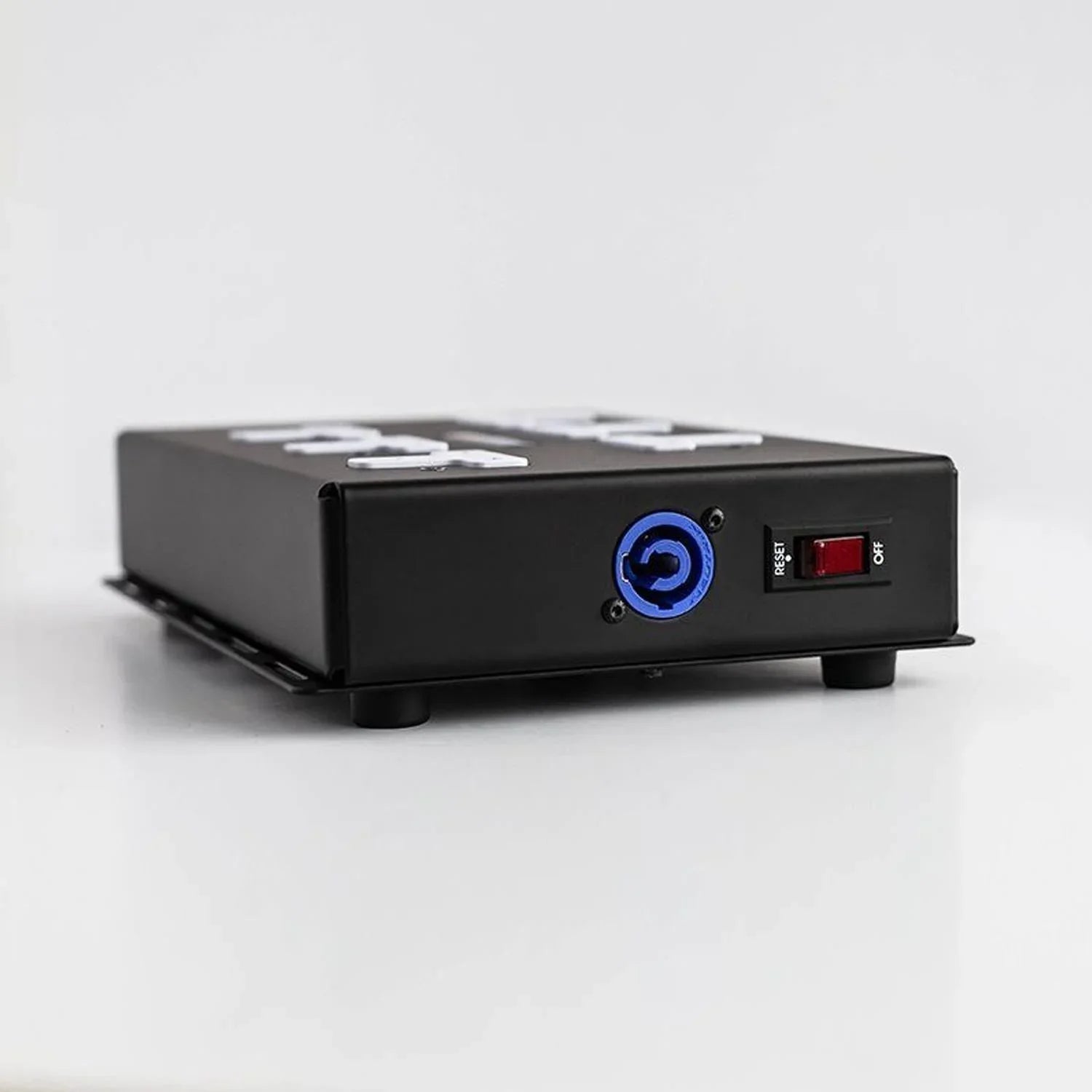

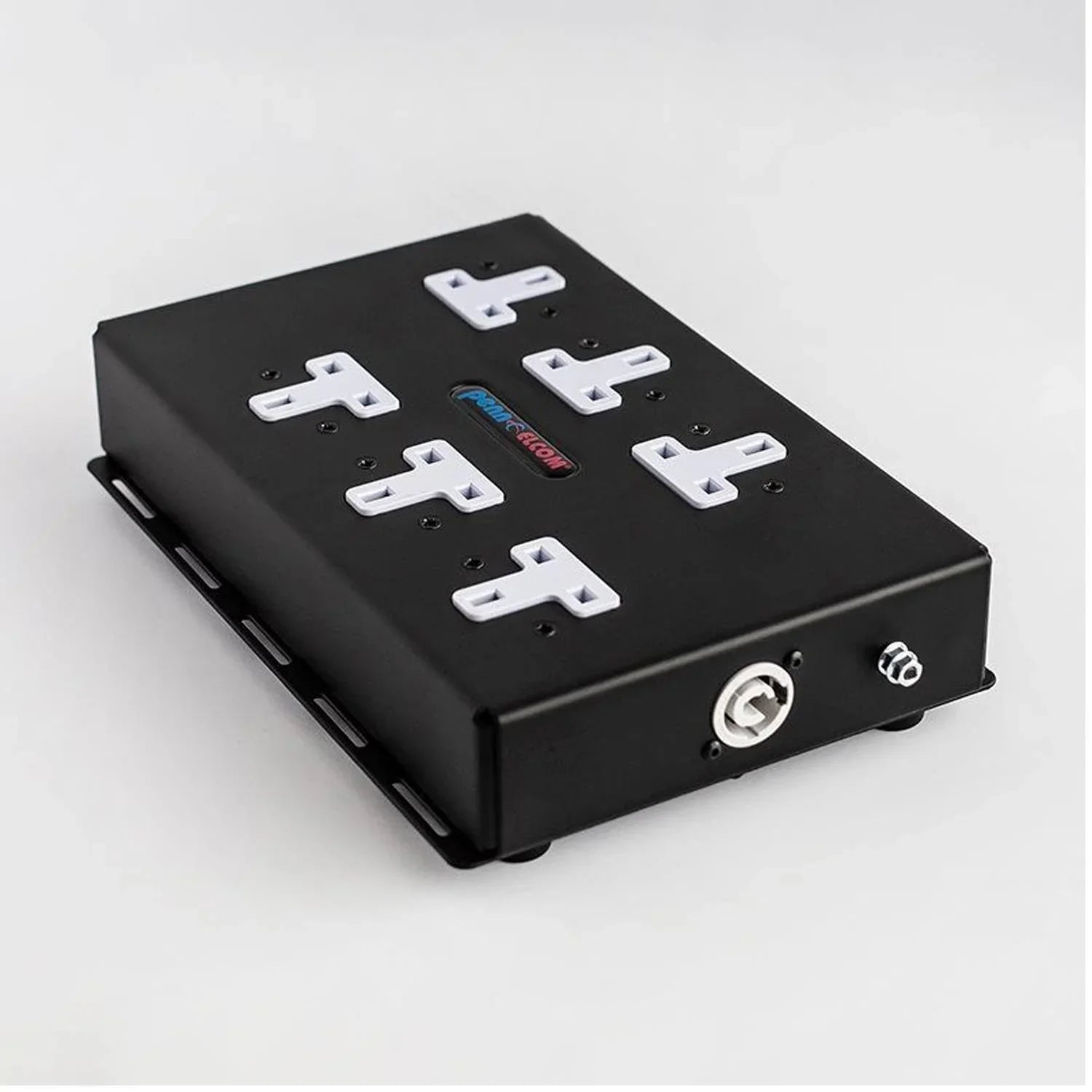

Unit provides 6 x 13A UK sockets and a Neutrik 20A PowerCON in and out link and a 16A illuminated thermal breaker for circuit protection.

Works great with this C4504 half coupler with M10 recess

Safety notice: when using the LINK output the combined load of a "Daisy Chain" must not exceed 20A

Technical Specification:
 - Voltage: 250V max
 - Frequency: 50/60HZ
 - Max Combined Load: Current 20A
 - Dimensions: 44mm x 166mm x 243mm


Technical Information
Non-Transactional No
Plug Type TYPE G (UK,Ireland, Malta, Malaysia & Singapore)
Weight 1.7kg
Finish Black
