Penn Elcom 32A Rack Mount PDU With 8 x Neutrik powerCon

Penn Elcom 32A Rack Mount PDU With 8 x Neutrik powerCon

Brand: Penn Elcom
SKU: PDU16-PC32
£399.00
Only 5 left in stock!
Quantity:
Secure Payment
We accept all major payment methods including:
Visa Mastercard Klarna PayPal Credit
Store Pickup Available
Pick up is available. Check with store to see product availability before coming over.

Product Description

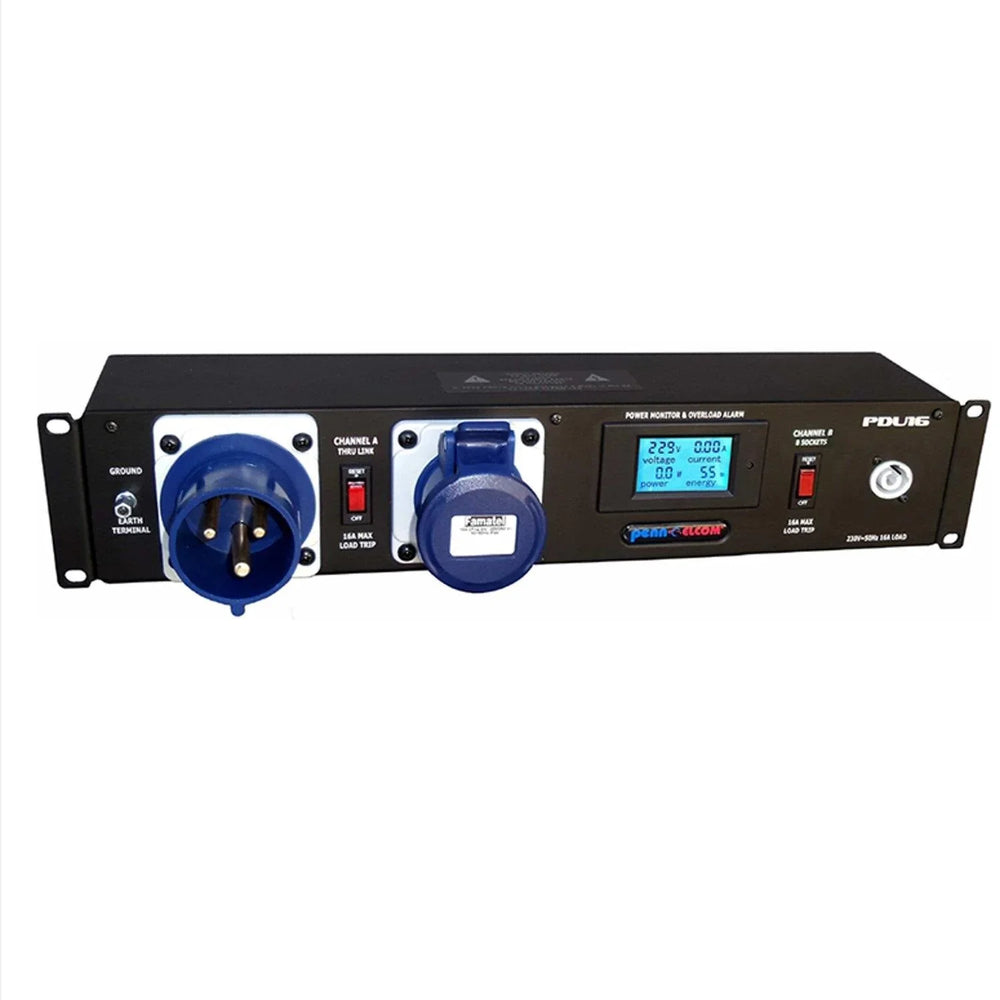

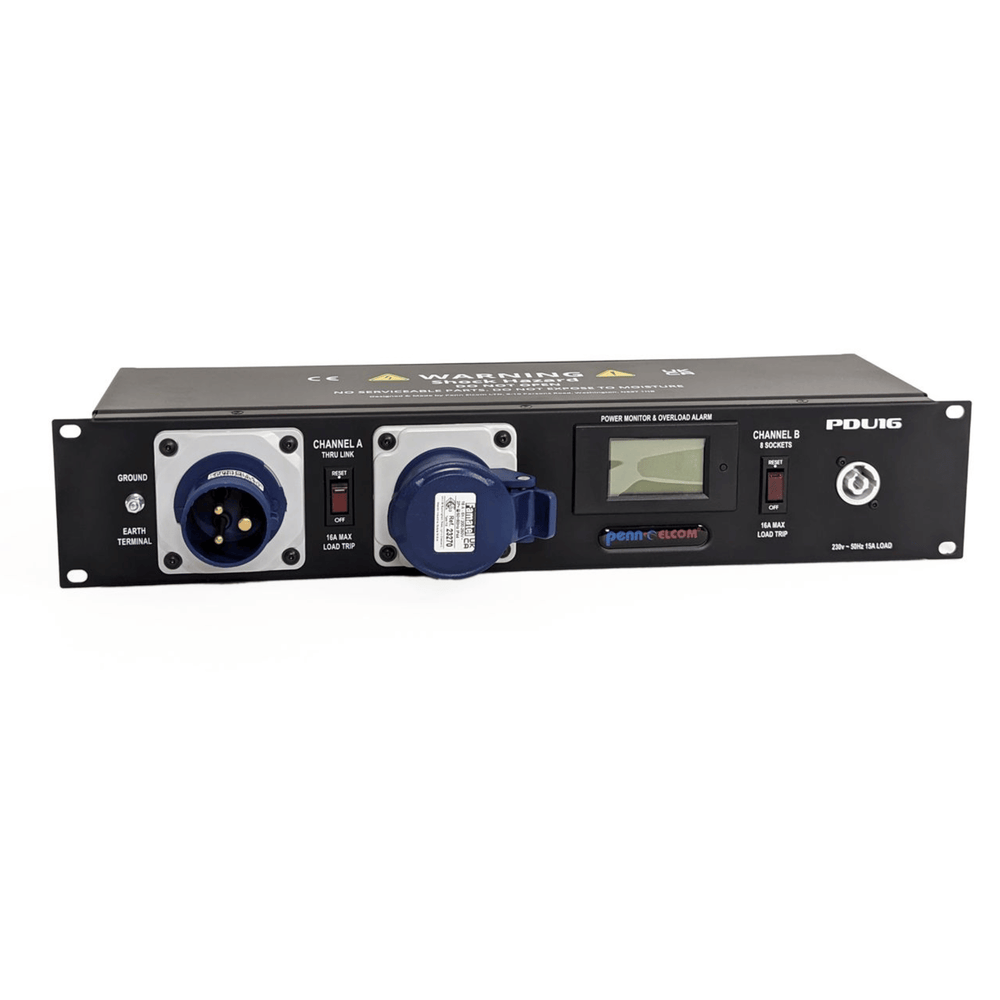

2U 32 Amp AC Rack Mount PDU With 8 x Neutrik powerCon Sockets, Overload Protection & Power Monitoring

2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Multimedia Theatre & Touring rack applications.



Circuit A:
Main Input - C-FORM 240V 32A IP44 Panel Mount Appliance Inlet
Protection - Illuminated Circuit Breaker overload protection between dual 16A sockets
Output - C-FORM 240V 16A IP44 Panel Mount Appliance Outlet


Circuit B:
Output - 8 Neutrik powerCon sockets with a Maximum Combined Load 16A.
Protection - Illuminated Circuit Breaker 16A overload protection
LCD Monitor - LCD Power Monitor giving Voltage, Current , Power, Energy Levels & Overload Alarm.
Earth Link - M4 Screw Terminal for Rack Grounding


Usage:
Nominal Voltage: 110V-240V
Usable Voltages: 110V-240V full range
Frequency: 50/60HZ full range
Max. A/C Output: Current 16A
Case Size: 88 x 140 x 430mm (O.A.483mm) / 3.46in x 5.5in x 16.92in
Weight: 2.5kg (5.5lbs)


All components used in this conform to current RoHS, CE & UL certification - E&OE
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
