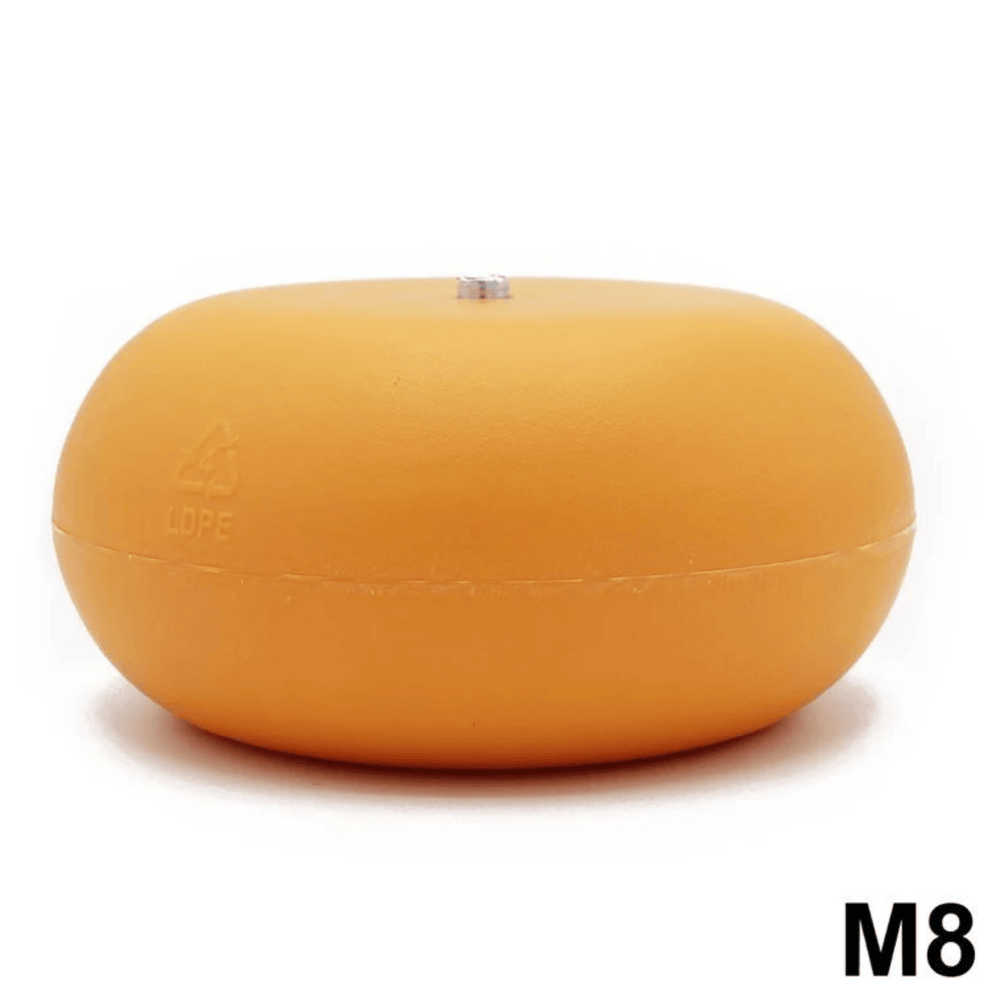

Penn Elcom 7225-M8 Pallet Cushion (M8, Orange) From 56kg to 102kg
Product Description
Orange Series 7 Air-Dampened Pallet Cushions with M8 T-Nut
Use Spacer 7228 (Spacer and Bolt Not Included)
Cushion + Spacer = 102mm (4”)
Cushion Height: 73mm
Load Capacity: 56kg - 102kg
Our Pallet Cushions are the most economical and reliable way to replace and upgrade wooden skid runners on pallet crates, eliminating the need for costly air-ride trucks, these air-dampened polyethylene cushions are easily attached to pallets or crates to provide a high level of protection from shock and vibration.
Don’t risk shipment damage by shocks, drops, and impact during transit or handling.
Easy to Install
The pre-installed t-nut, with M8 thread, protrudes out of the cushions for easy location into the mounting hole and fast installation. (Also available with 5/16”-18 UNC threaded t-nut or without t-nut)
The pallet cushions are mounted directly on a pallet or container base with a simple bolt.
Reusable
The pallet cushions can be easily removed and mounted again on another pallet.
Simple and Practical
Our Series 7 Pallet Cushions, once fitted with the 7228 Spacer, create a four-way 4” space under the pallet, which makes it easy to load and unload with a pallet jack and forklift.
Textured Finish
The Series 7 Pallet Cushions has a textured finish for a better grip.
Resistant and Durable
Our Pallet Cushions have been through rigorous stress tests. They can be dragged on concrete and joints for 3000 feet, at maximum load, with only minimal wear noted. Suitable for use between -40°C to + 54°C and chemical resistant.
| Load Capacity | 56.7kg-102.05kg |
|---|---|
| Material | Polyethylene |
| Type | Series 7 |
| Weight | 241g |
| Finish | Orange |
| Fittings | M8 |
