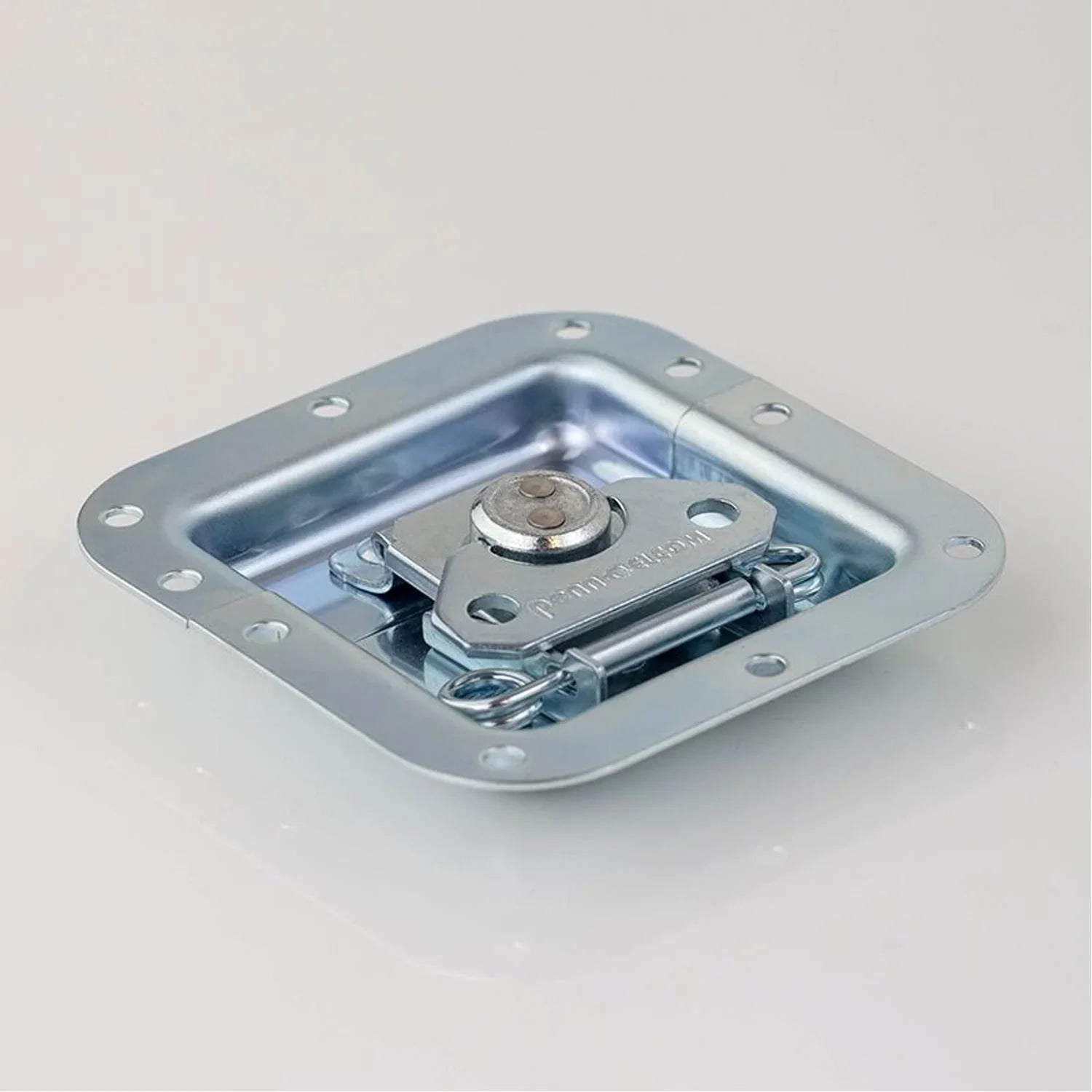

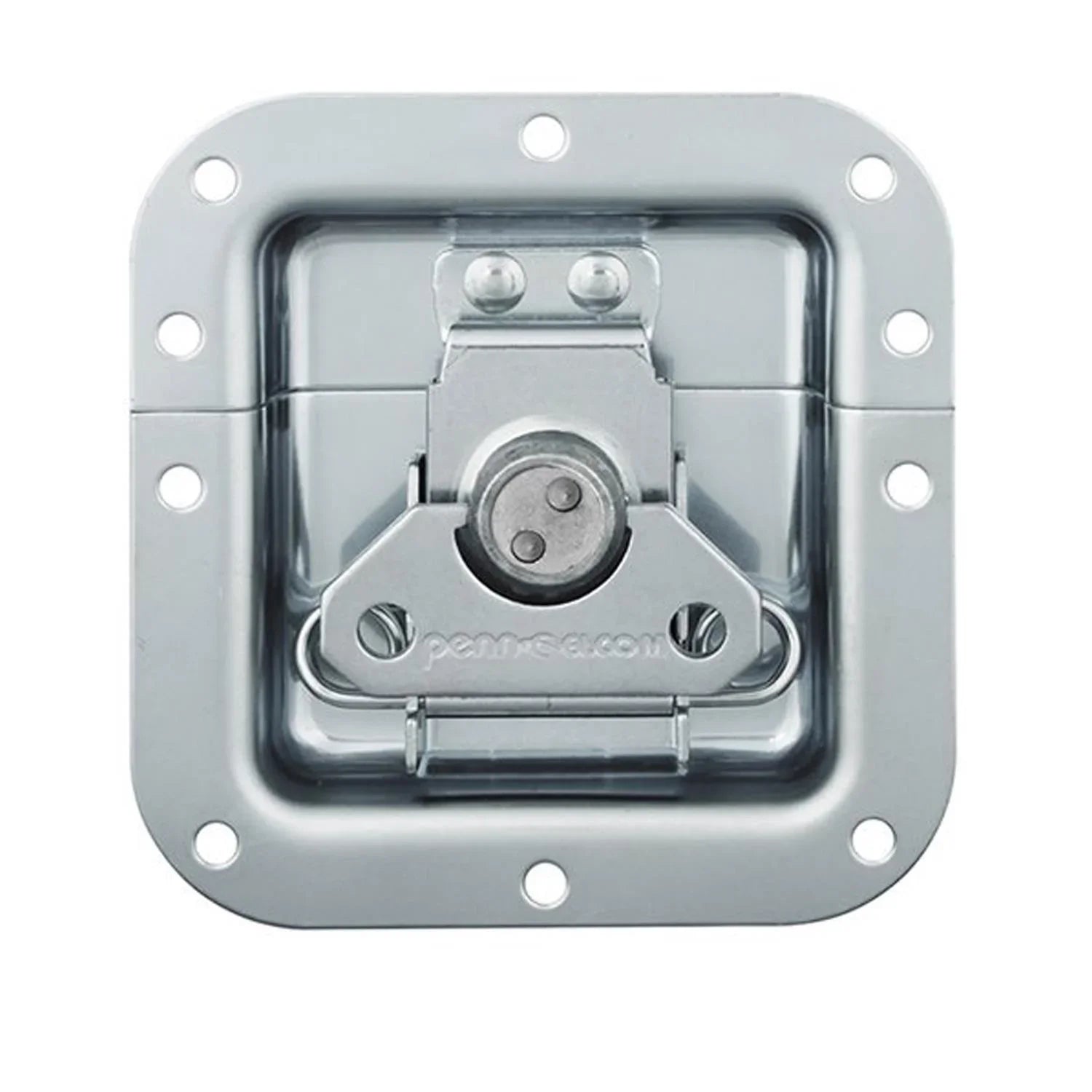

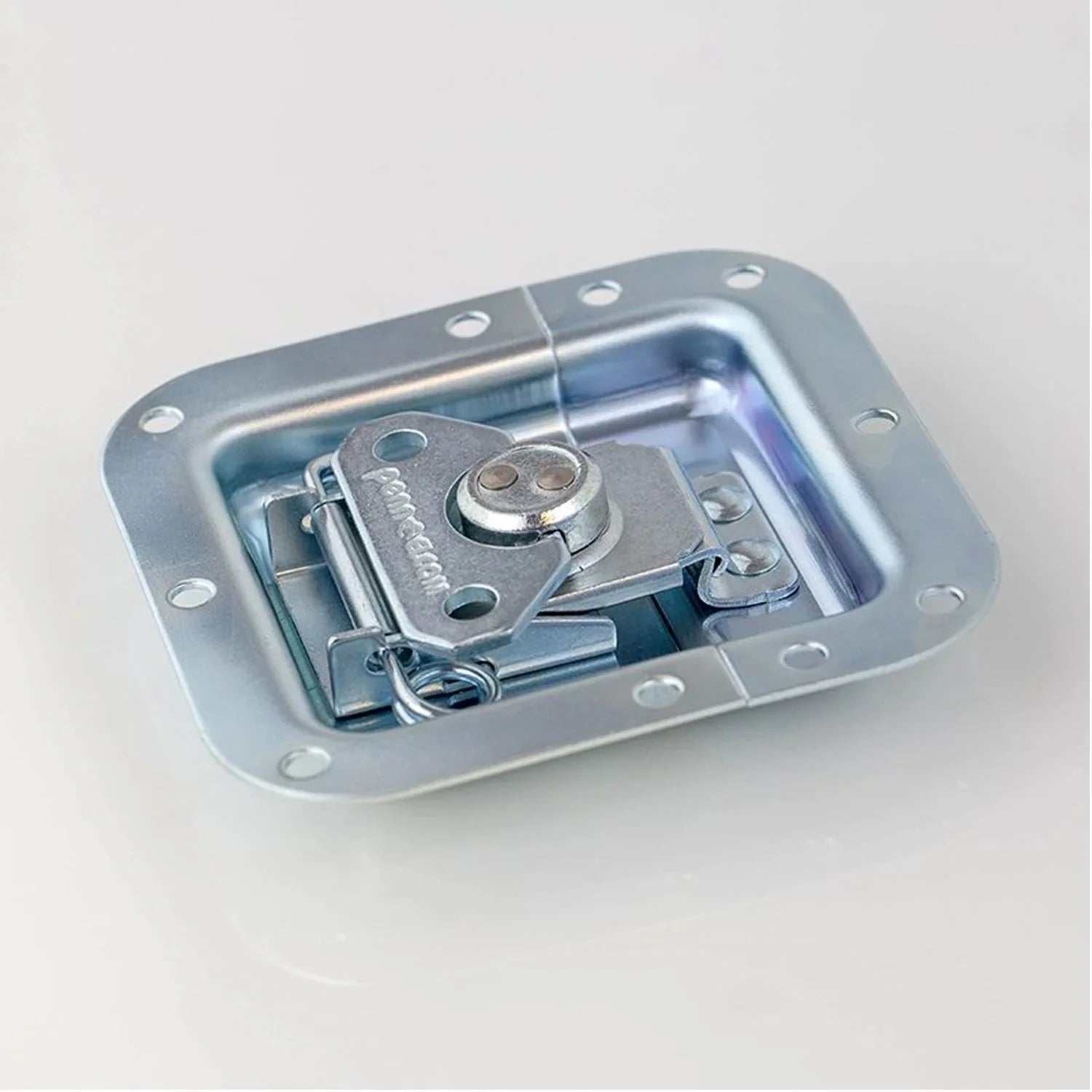

Penn Elcom L905/915Z Medium Recessed Butterfly Latch
Product Description
Securely close your case with a Penn Elcom latch mounted in a medium recessed dish. For use on small to medium-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish.
Product Features:
- Dish Width: 102mm / 4
- Dish Height: 105mm / 4 1/8
- Dish Depth: 13mm / 1/2
- Offset: No
- Lockable: No
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.22kg / 0.49lb
- Maximum working load capacity: 90kg / 198.42lb
Installation Information:

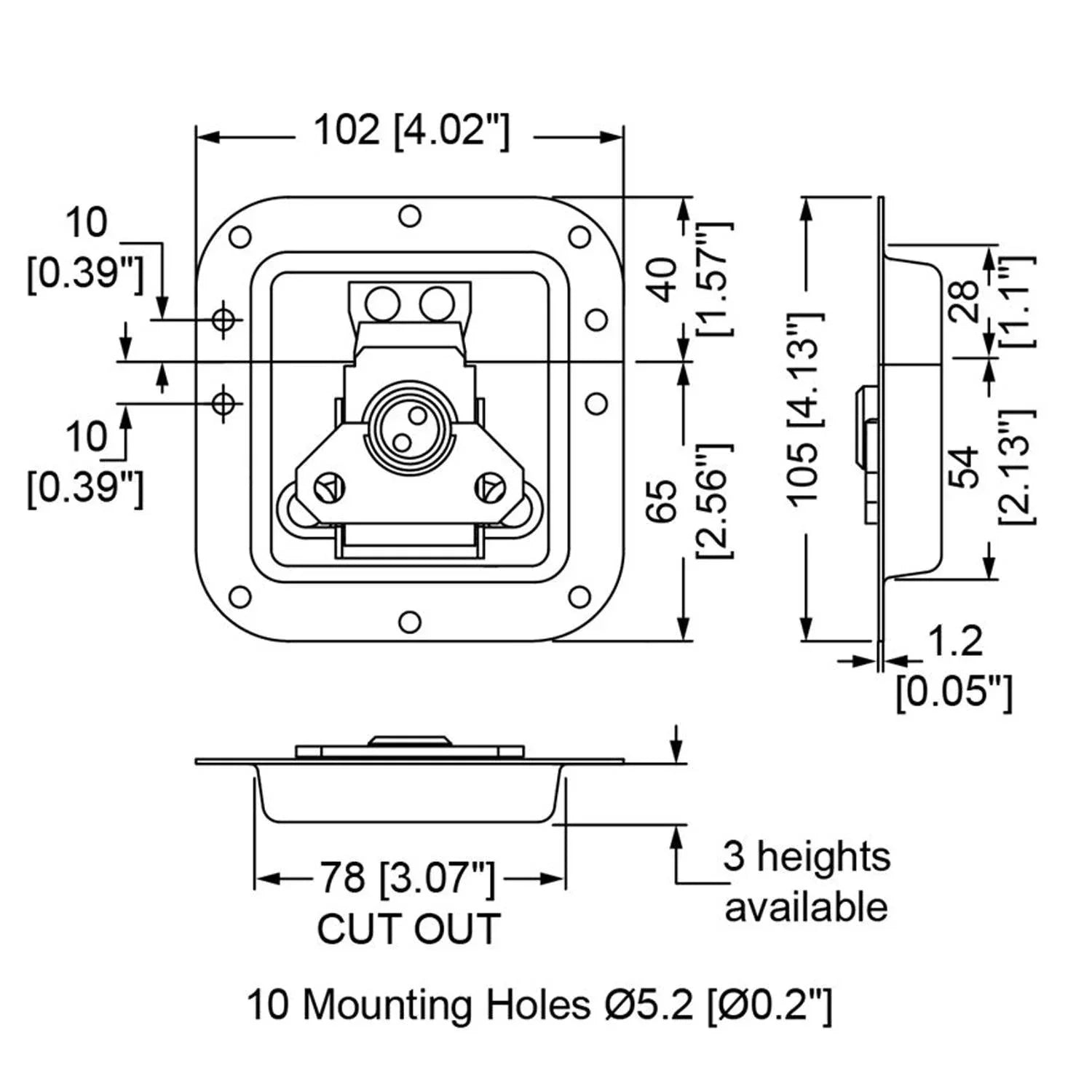

- Panel Cut-Out Size:
- Cut-Out Width: 78mm / 3
- Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 10 x 5.2mm / 3/16
- Rivets Required for Installation: 10
- Suits L0906 Backplate
