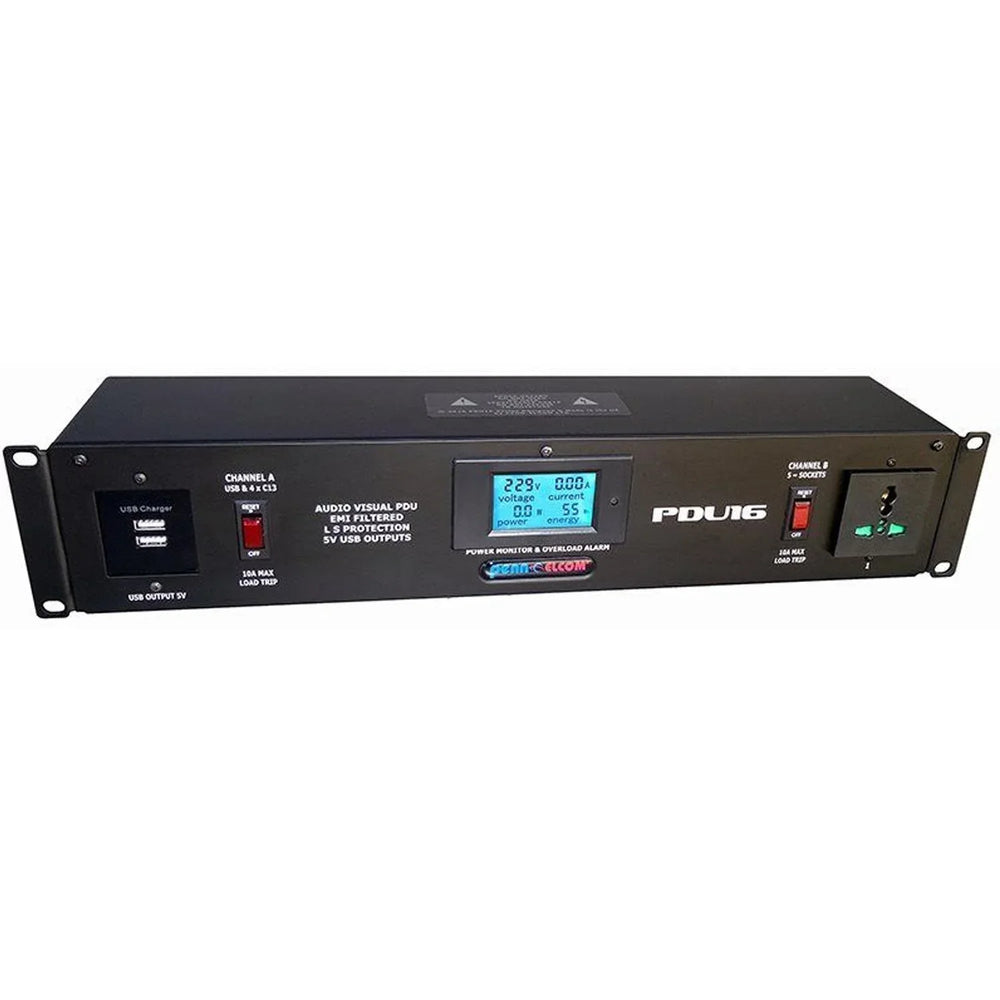

Penn Elcom PDU16-AV 2U 20 Amp Rack Mount PDU with Power Monitoring and Overload Protection

Penn ElcomSKU: 013527

Sale price£349.00
5 In Stock


2U 20 Amp Rack Mount PDU with Power Monitoring and Overload Protection

2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Audio Visual & Multimedia applications.

Main Input
 - Neutrik 20A powerCON with 2nd order EMI filter & GDT/VDR protection circuit against Lightning Strike & Local Power Surge

Circuit A:
 - Protection: Illuminated Circuit Breaker 10A overload protection
 - Output: 4 Way IEC C13 Outlet Strip with max combined load of 10A 2 Dual USB 5V 1.8A charger modules

Circuit B:
 - Output - 5 Universal sockets useable with plugs from the UK, US, Europe and Australia, with a maximum Combined Load 10A. (Schuko type plugs have a 2 pin connection only). For full universal plug application guide see appendix A
 - Protection: Illuminated Circuit Breaker 10A overload protection
 - LCD Monitor: LCD Power Monitor giving Voltage, Current , Power & Energy Levels.
 - Earth Link: M4 Screw Terminal for Rack Grounding

 - Nominal Voltage: 230V
 - Usable Voltages 240V full range
 - Frequency: 50/60HZ full range
 - Max. A/C Output: Current 20A
 - Case Size: 87mm x 98mm x 430mm

Compliance All components used in this conform to current RoHS, CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)


Technical Information
Non-Transactional No
Plug Type Universal
Size (U) 2U
Weight 2.5kg
