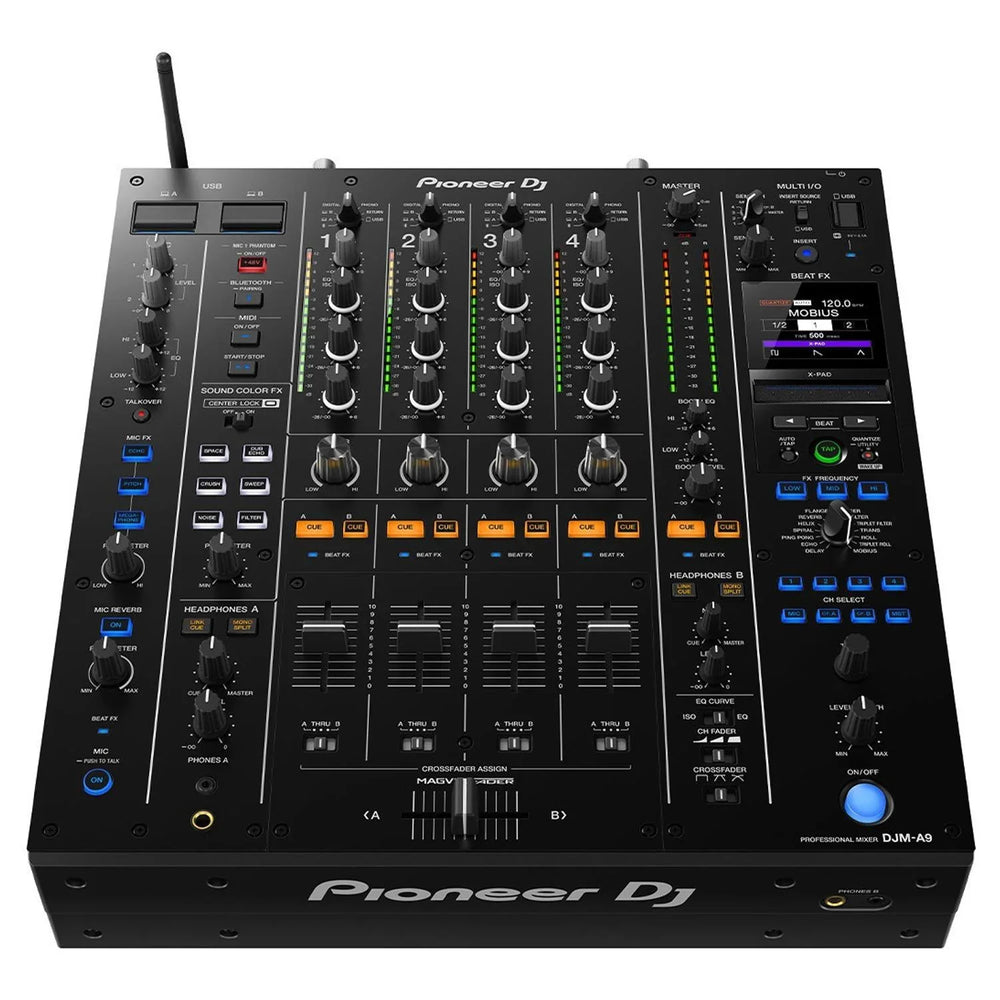

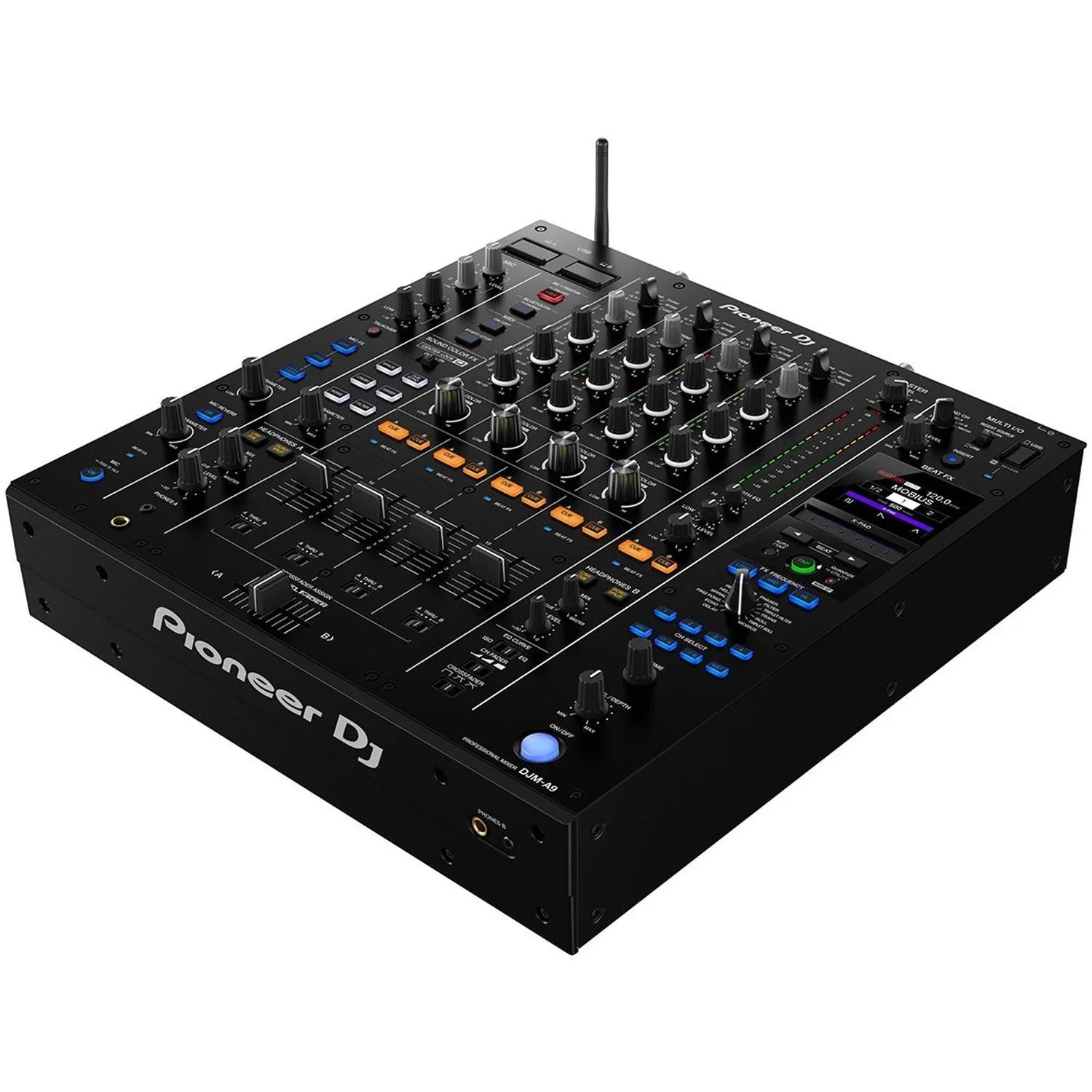

Pioneer DJ DJM-A9 4 Channel Professional Mixer

The 4-channel unit raises the bar for club standard mixers – boasting huge upgrades compared to its predecessor, the DJM-900NXS2 – with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level.

• Stunningly clear sound quality
• Evolved playability
• Sound Color FX with Centre Lock
• Newly advanced Beat FX
• Expanded connectivity
• Enhanced mic section
• Dual independent headphone outputs and booth EQ
• Support for the Stagehand app and built-in
• Sound Check function
• Support for rekordbox and Serato DJ Pro
• DJM-REC app support for reliable recording
• Video and lighting app support

General Specifications

• Frequency Response:  20 Hz – 40 kHz (LINE)
• S/N Ratio:
  • 114 dB (USB, Digital IN)
  • 88 dB (PHONO)
  • 105 dB (LINE)
  • 79 dB (MIC 1, MIC 2)
• Total Harmonic Distortion: 0.005 % (LINE-MASTER1)
• Power Consumption: 46 W
• Maximum Dimensions (W × D × H):
  • 407.4 × 458.3 × 107.9 mm (with the wireless antenna 140.7 mm)
  • 16.4” x 18.4” x 4.25” (with the wireless antenna 5.54”)
• Weight:  10.2 kg / 22.5 lb
• Compatible Software:  rekordbox, Serato DJ Pro, ShowKontrol, PRO DJ LINK Bridge

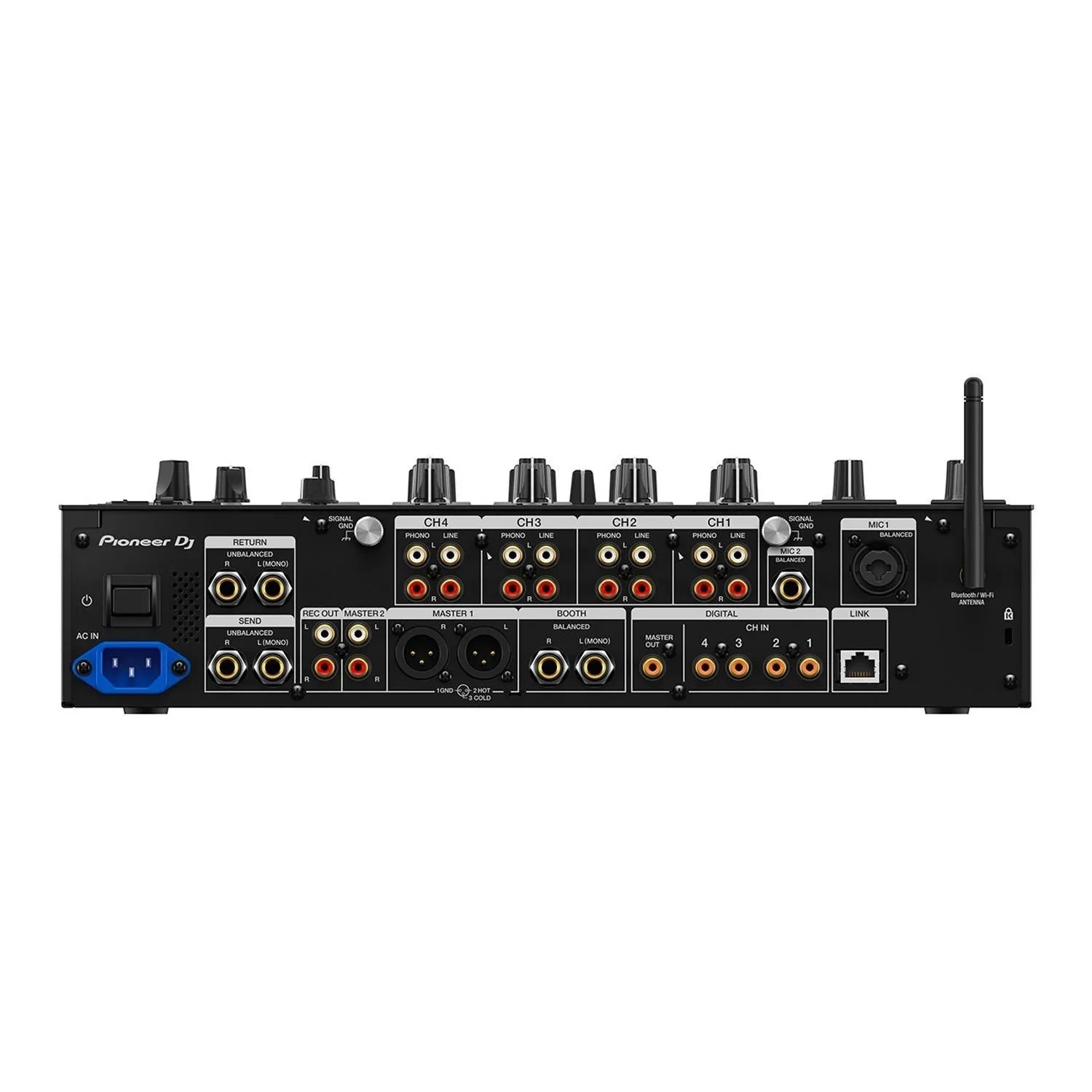

Input/Output Terminals

• Inputs:
  • DIGITAL x 4 (coaxial)
  • LINE x 4 (RCA)
  • PHONO x 4 (RCA)
  • MIC x 2 (XLR & 1/4” TRS jack x 1, 1/4” TRS jack x 1)
• Outputs:
  • MASTER x 2 (XLR x 1, RCA x 1)
  • BOOTH x 1 (1/4” TRS jack)
  • REC x 1 (RCA)
  • DIGITAL MASTER x 1 (coaxial)
  • PHONES x 4 (1/4” stereo jack x 2, 3.5-mm stereo mini jack x 2)
• USB:
  • USB Type-A x 1
  • USB Type-B / USB Type-C x 2
• Others:
  • SEND (1/4” TS jack) x 1
  • RETURN (1/4” TS jack) x 1
  • LAN terminal (100BASE-TX) x 1

What's in the Box?

• Power cord
• Quick Start Guide
• Precautions for Use
• Bluetooth / Wi-Fi Antenna
