Pioneer DJ DJM-S7 2-Channel Scratch DJ Mixer for rekordbox and Serato

This new 2-channel battle mixer gives you the freedom to customise your setup and bring your own unique style to every performance. The unit enables free use of Serato DJ Pro and it’s a Hardware Unlock device for rekordbox, so you can use performance features in either application.

Magvel Fader Pro

• Pioneer DJ has enhanced the feeling of the Magvel Fader Pro and boosted the rigidity of the knob mounting shaft in the vertical direction by 30% so you can scratch with even more confidence.

Large Performance Pads

• The 8 large Performance Pads on each channel are easy to hit when you want to rapidly fire off Hot Cues and samples. And with independent pad modes, you can use 2 different features – one on each channel’s set of pads – at the same time.

Large Effect Levers

• Twist sounds on the fly by adding effects with the large levers. The DJM-S7 includes all 22 built-in Beat FX from the DJM-S11 so you can get creative with these, as well as software effects in Serato DJ Pro and rekordbox. It’s easy to change the 6 effects assigned to the FX Select buttons and you can keep an eye on the name and beat value of the one you’re using by glancing at the OLED display.

Bluetooth Input: Wirelessly add audio from your phone

• Simply pair your phone with the DJM-S7 via Bluetooth and you can drop sounds straight into your set. You can play loops to scratch over or use a music app to play a track requested by someone in the audience. Or simply have your mobile device connected and ready as a backup in case your laptop fails. You can play the sound directly through the master output or either of the channels.

Loop MIDI: Automated control of DJ software functions

• This feature in the effects section of the DJM-S7 can control various functions in your DJ software by repeatedly sending a MIDI signal to the software in a set beat cycle. Functions including Hot Cue, sampler, and key shift-up are preassigned so you can start using Loop MIDI straight away.

USB hub

• Plug your DJ controllers and other devices – including selected units from other brands – into the dual USB-A ports to play with them.

MIDI controller

• This device is fully MIDI assignable via USB. Send control information to external devices and use the mixer as a MIDI controller.

Pitch 'n Time DJ

• Serato DJ Pro Expansion Pack Voucher (Pitch 'n Time DJ) is included. Use Pitch Play, Key Shift, and more features. The mixer is fully MIDI mappable too.

Serato DJ Pro

• Connect your PC/Mac to use Serato DJ Pro (the mixer unlocks the software for free). Use dedicated buttons for effects and advanced Serato features including Beat Jump, Slip mode, and Quantize.

Serato DVS

• Use Serato DVS to control and scratch with CDJs or turntables.

rekordbox

• Connect your PC/Mac to unlock performance features in rekordbox for free and use DVS mode with the dedicated control vinyl (available separately).

ain Features

• MIDI Control:  Assignable
• Compatible DJ Software
  • Unlocks Serato DJ Pro
  • rekordbox
• DVS Control
  • Unlocks Serato DVS
  • rekordbox
• Software System Requirements
  • Visit serato.com for its specifications.
  • Visit rekordbox.com for its specifications.
• Bluetooth Audio Input
  • Version: Bluetooth standard version 5.0
  • Supported Codecs: SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX™ Low Latency
  • Maximum Communication Distance: Approximately 10 m in unobstructed circumstances

Specifications

• Power Consumption:  24W
• Frequency Range:  20 - 20000 Hz
• Power Supply:  AC 100-240 V, 50 Hz / 60Hz
• S/N Ratio USB
  • 110 dB (USB)
  • 103 dB (LINE)
  • 88 dB (PHONO)
  • 80 dB (MIC)
  • 103 dB (AUX)
• Distortion
  • 0.003% (USB)
  • 0.005% (LINE)

Master

• Level Meter Size:  9 segment

Channels

• EQ/ISO:  3 band
• EQ/ISO Range:  –∞ dB to +6 dB
• Reverse Channels:  Yes
• Peak Limiter:  Yes

Performance Control

• Channels:  2
• Sound Colour FX
  • Filter
  • Dub Echo
  • Noise
  • Pitch
  • Wide Filter
• Beat FX
  • Echo
  • Ducking Echo
  • Echo Out
  • Spiral
  • Helix
  • Delay
  • Reverb
  • Back Spin
  • One-shot Spin
  • Vinyl Brake
  • One-shot Brake
  • Flanger
  • Phaser
  • HP Filter
  • LP Filter
  • Trans
  • Kill
  • Roll
  • Fader Pitch
  • Fader Synth

Effect Sampler

• Auto BPM Counter:  Yes

Crossfader

• Crossfader Type:  Magvel Fader Pro
• CURVE Assignable:  Yes
• Reverse Crossfader:  Yes
• Feeling Adjustment:  Yes

Mic

• Mic Connection:  XLR / 1/4-inch Jack Combo
• Talkover Attenuator:  Yes

Sound card

• Connection:  USB (Type-B)
• Sample Rate:  24 bit
• Frequency:  48 kHz

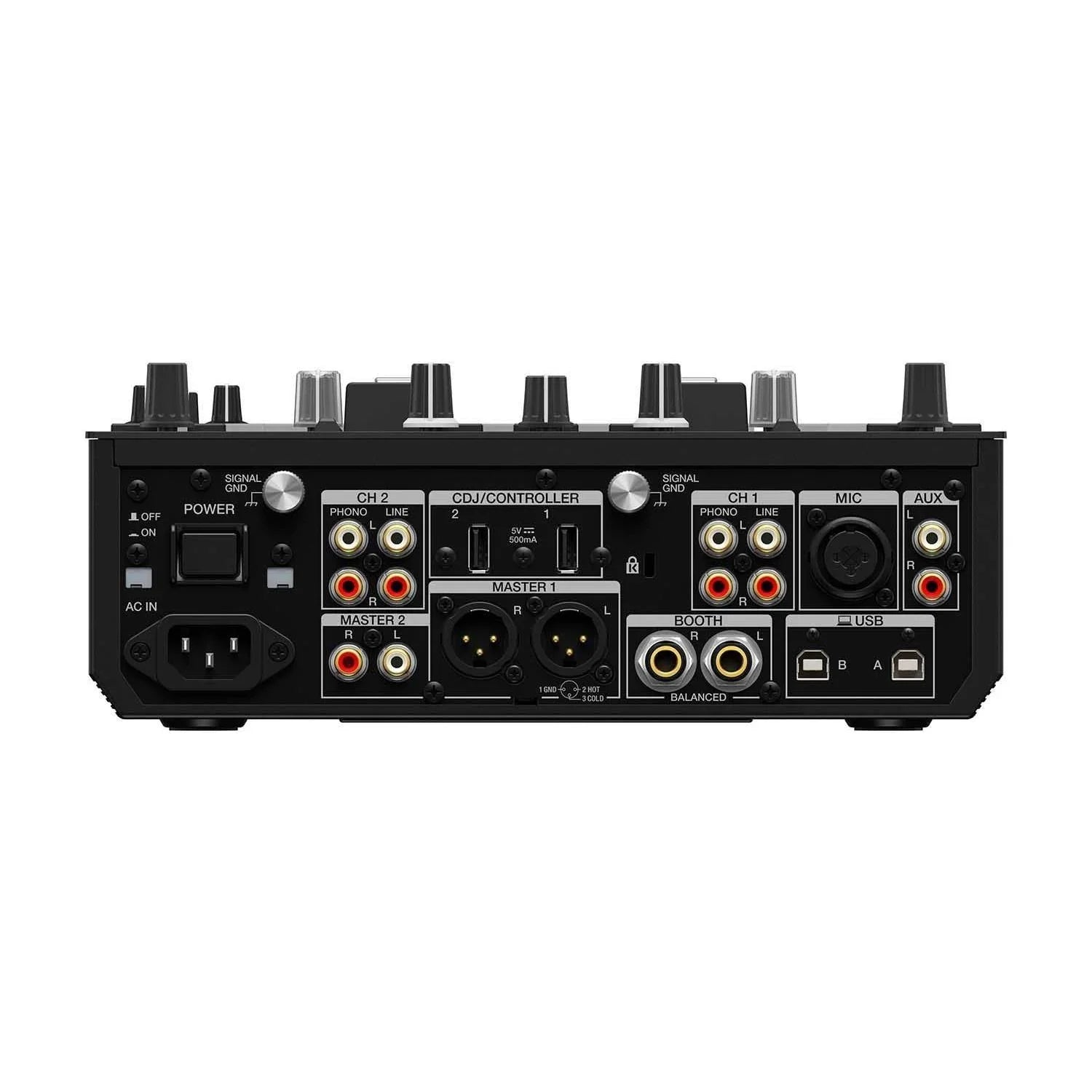

Terminals

• Inputs
  • 2 LINE (RCA)
  • 2 PHONO (RCA)
  • 1 MIC (XLR & 1/4 inch TRS Jack)
  • 1 AUX (RCA)
• USB
  • 2 USB A ports
  • 2 USB B ports
• Outputs
  • 2 MASTER (XLR, RCA)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)

Physical

• Width:  267 mm
• Height:  107.9 mm
• Depth:  397.4 mm
• Weight:  4.5 kg
