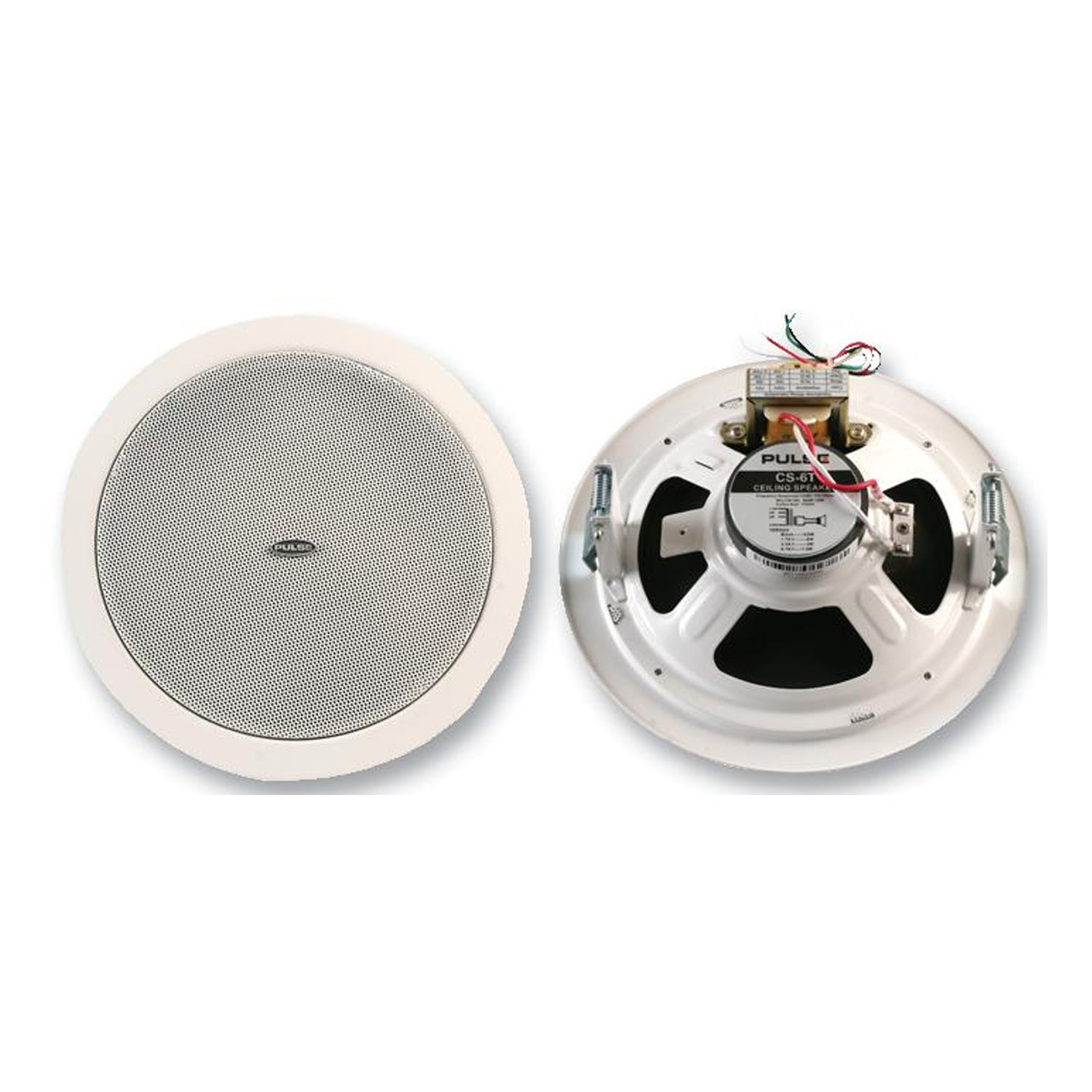

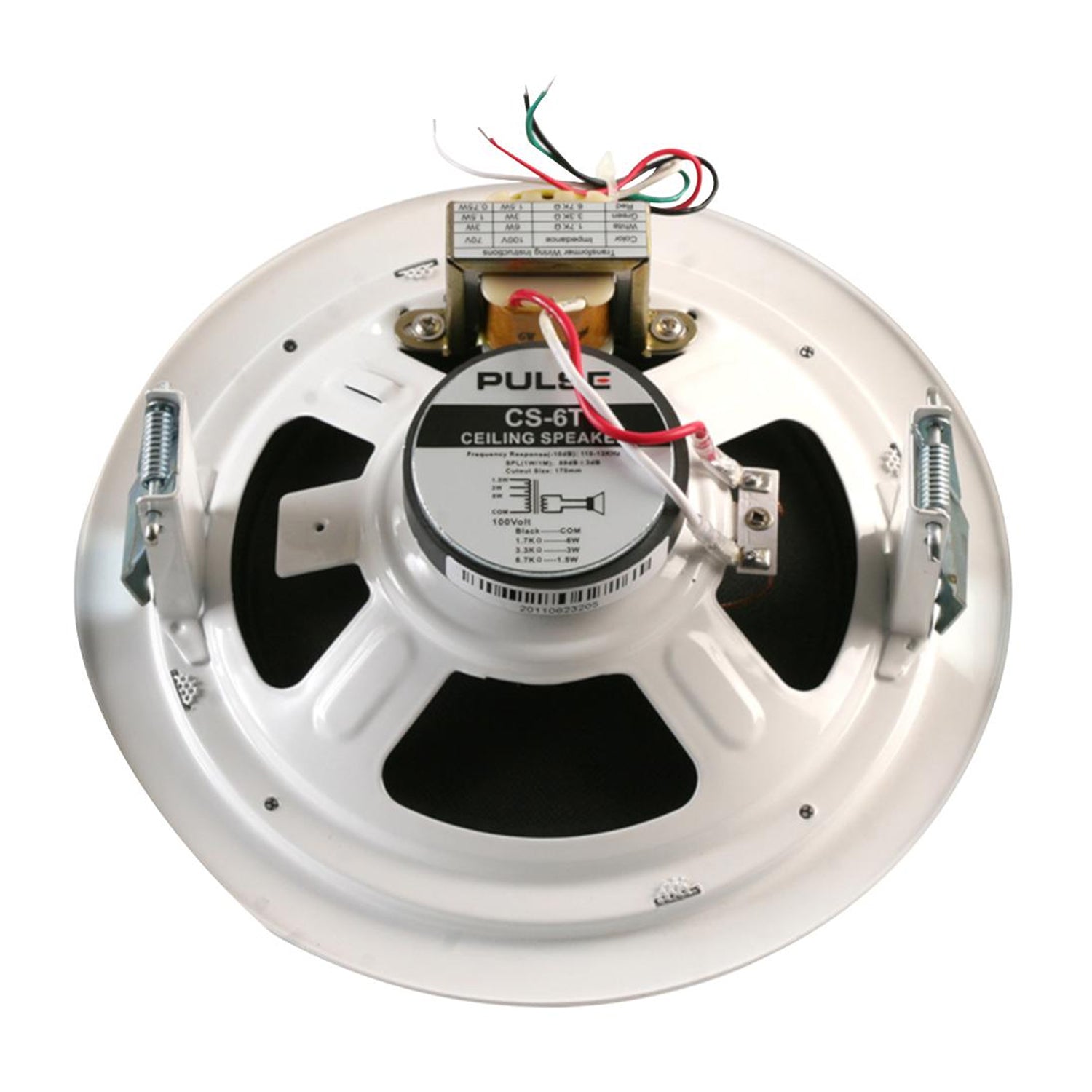

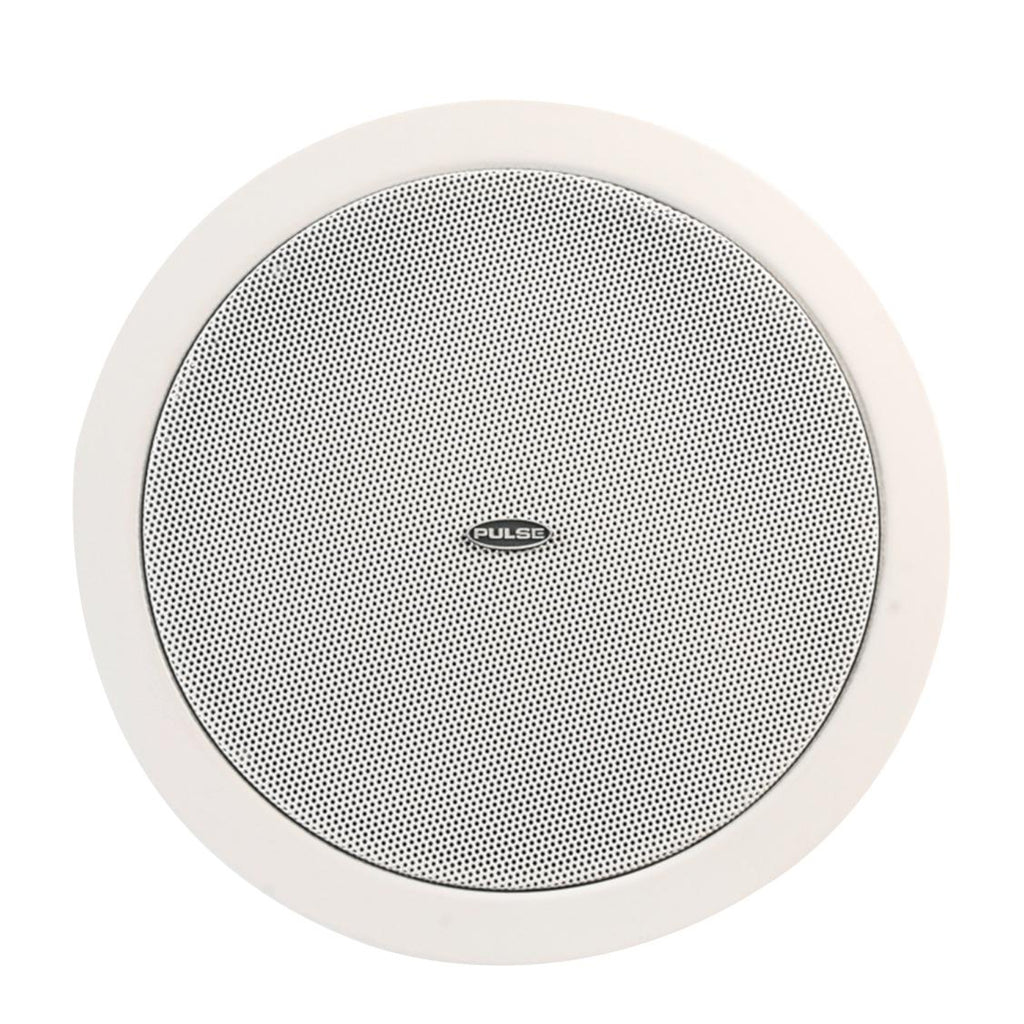

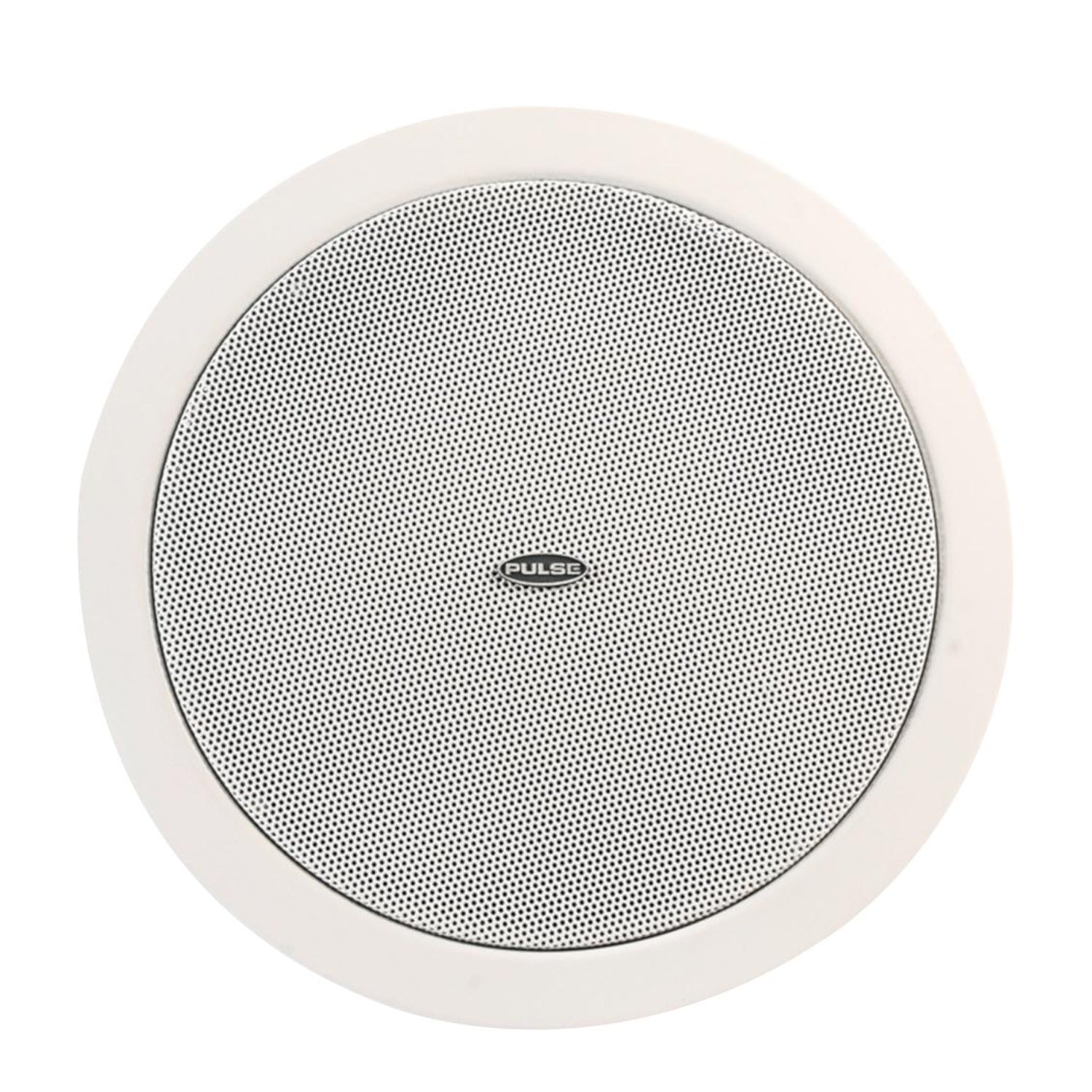

Pulse 5" 6W 100V/70V Ceiling Speaker
Product Description
Designed for install into ceilings or walls the Pulse CS-6T is ideal for use in low level background music, paging or public announcment applications using a 100V PA system. This 5″ 100V ceiling speaker with multi-tap transformer can be pre-set to the requirements of a particular area within a building.
Full range driver
Twin cone speaker for extended upper frequency response
Multi-tap transformer
Pressed steel, metal baffle frame
Metal speaker grille
White finish blends with most decors
Spring clamps for quick and easy installation
Driver Size: 5"
Tappings @ 100V: 6W, 3W, 1.5W
Tappings @ 70V: 3W, 1.5W, 0.75W
Frequency Response: 110Hz-13kHz
Sensitivity: 88dB ±3dB
Cut Out ∅: 175mm
Mounting Depth: 68mm
Dimensions (∅xD): 200x70mm
Weight: 640g
Applications
Audio, Audio Visual, Broadcast, Building & Site Monitoring, Business, Commercial, Installations, Music, Office, Public
Transformer Power Tappings: 6, 3, 1.5W
Frequency Response Min: 110Hz
Frequency Response Max: 13kHz
External Depth: 70mm
