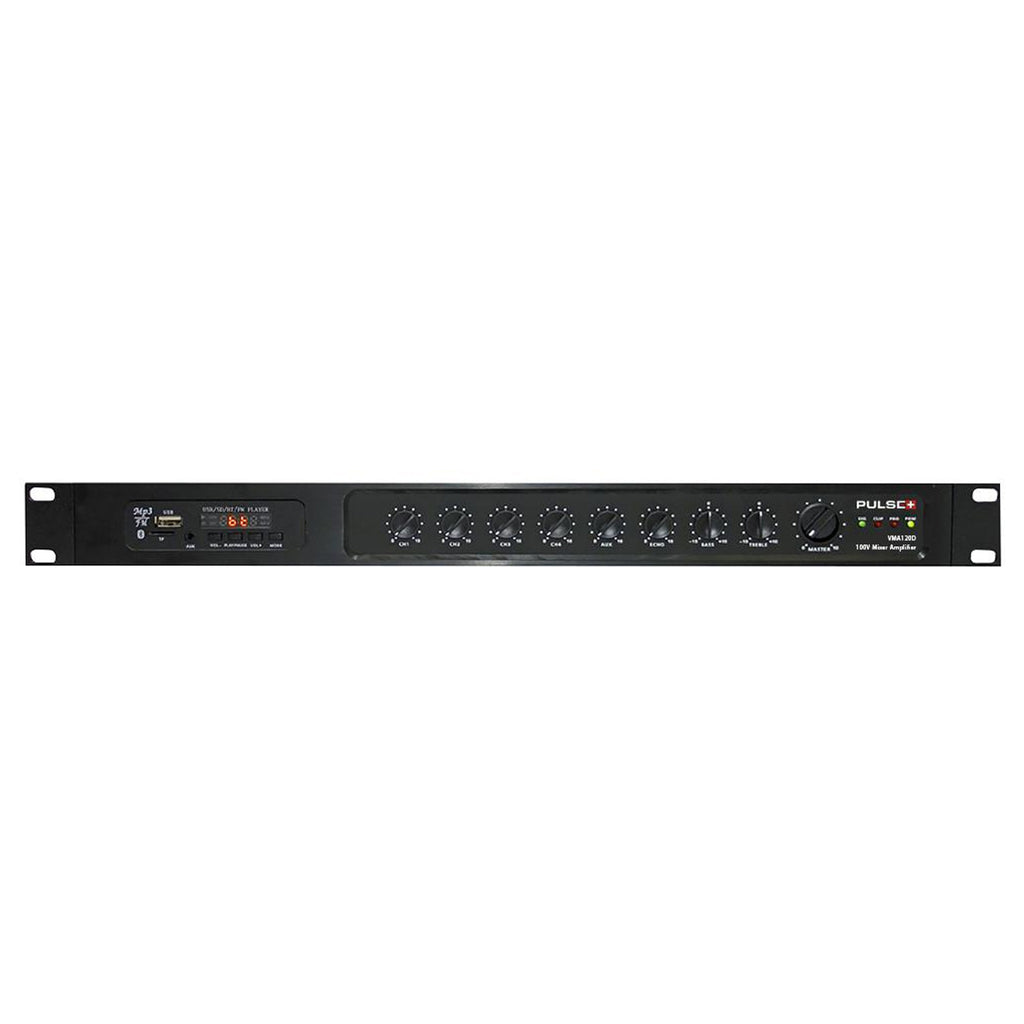

Pulse VMA120D 19" 1u 120W 100V PA Mixer Amplifier with USB/FM and BT
Product Description
1U 19” rack-mountable 5 channel mixer with a built-in media player and 120W Class-D mono amplifier. With its array of connectivity and playback options the VMA120D is ideal for compact rack installations in schools, shops, restaurants, houses of worship and other presentation, retail or entertainment venues.
1U 19” Rack mountable chassis
120W Class-D mono amplifier
Built in media player with 3.5mm Aux, USB, Micro-SD, BT & FM tuner
Speaker outputs: 100V, 70V or 4 Ohm
4 Mic/Line inputs with Mic/Phantom/Line selector switch

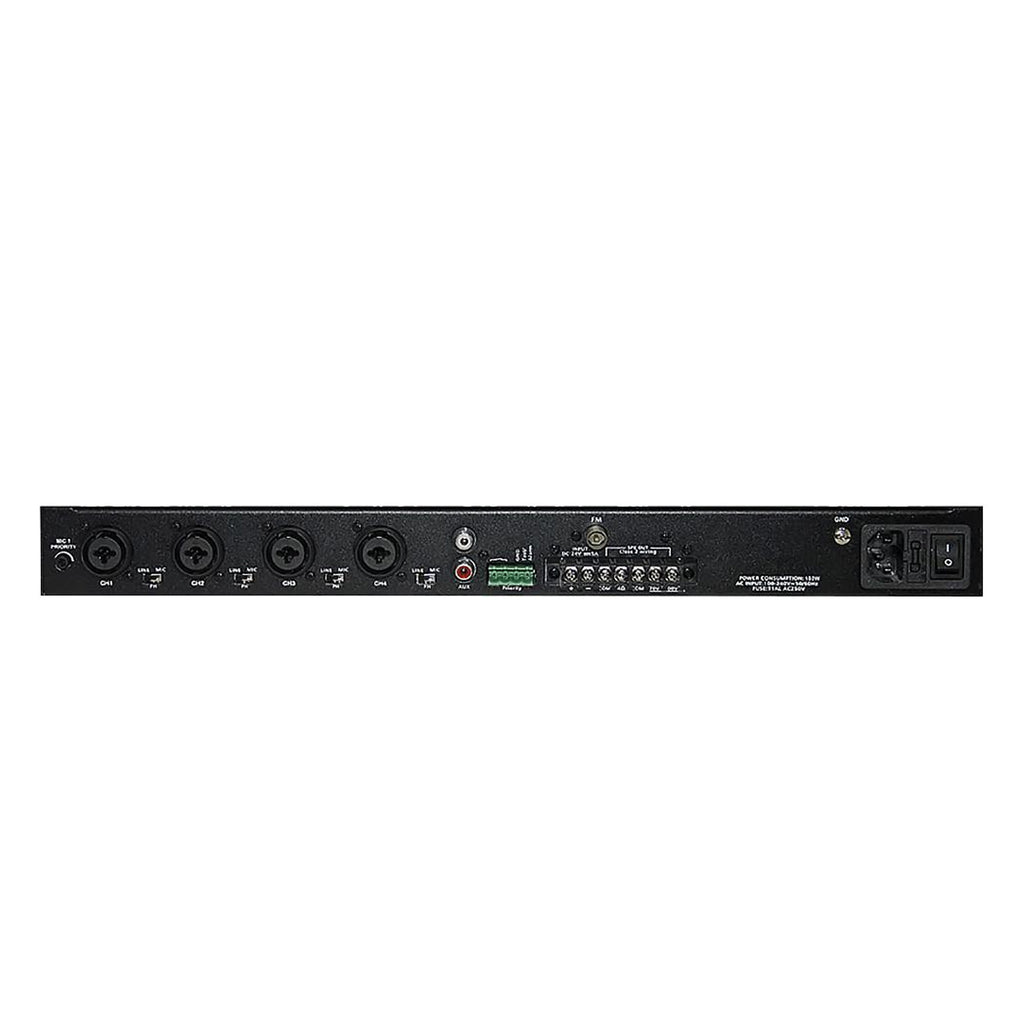

Aux line input, L/R RCA on rear panel
Mic.1 priority mute potentiometer
Mute trigger via switched contact or alarm signal
Channel level controls
Echo effect with level control
2 Band EQ for bass and treble adjustments
Master output level control
4 LED status indicators (signal, clip, protect, power)
Operating supply voltage: 100-240V AC or 24V DC
Dimensions (WxHxD): 483x44x281mm
Weight: 4.9kg
UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.
Applications
Audio, Commercial, Installations, Music, Office
