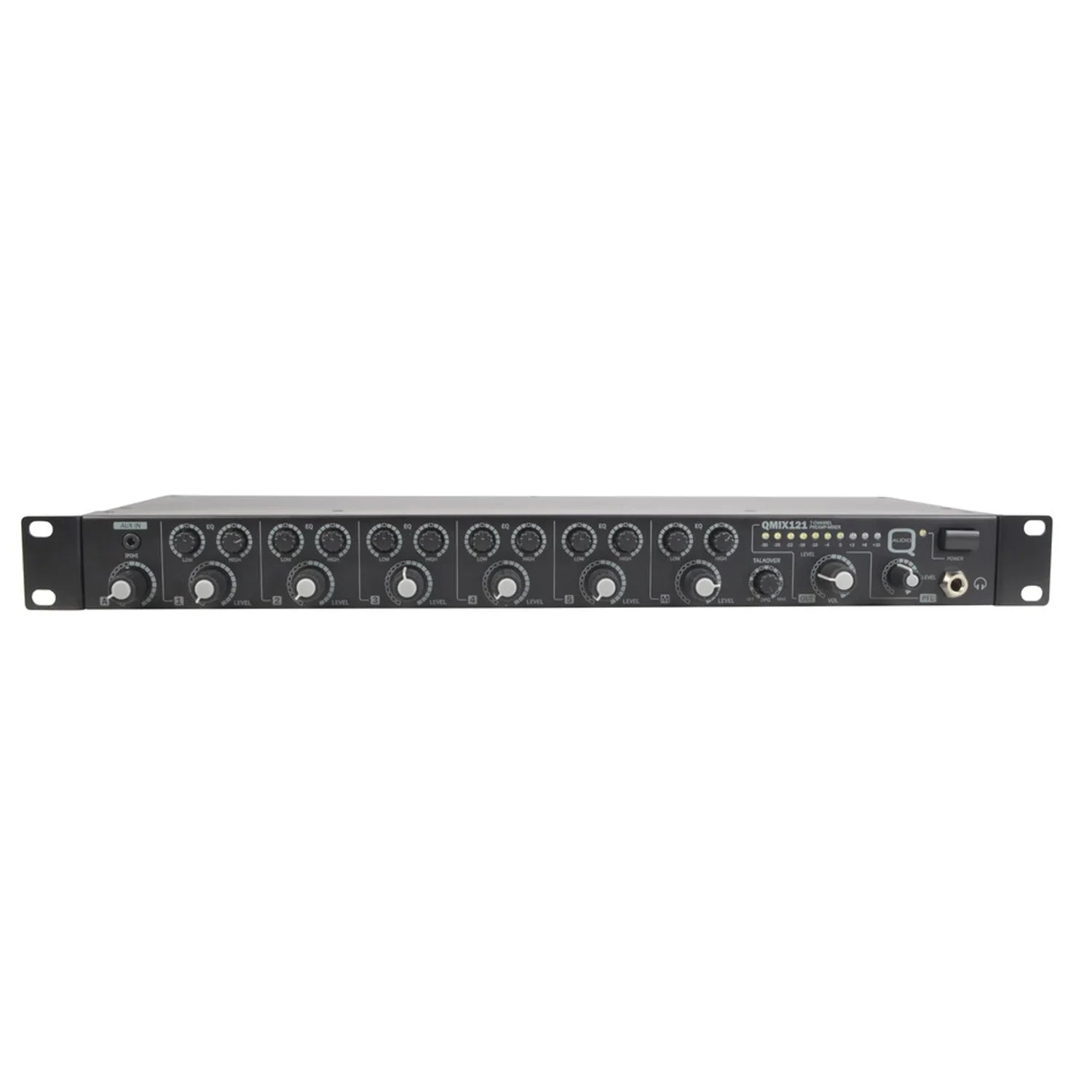

Q-Audio QMIX121 7-Channel Mixer/Preamp with Microphone Talk Over
Product Description
This Q Audio QMIX121 is a versatile mixer that offers five stereo inputs that can be effortlessly switched between balanced microphone and unbalanced line input levels via a rear panel switch.
Additionally, it features an additional input for either a front of house system like a band or DJ via balanced stereo jacks or a 3.5mm jack input conveniently located on the front panel for connection to phones and tablets.

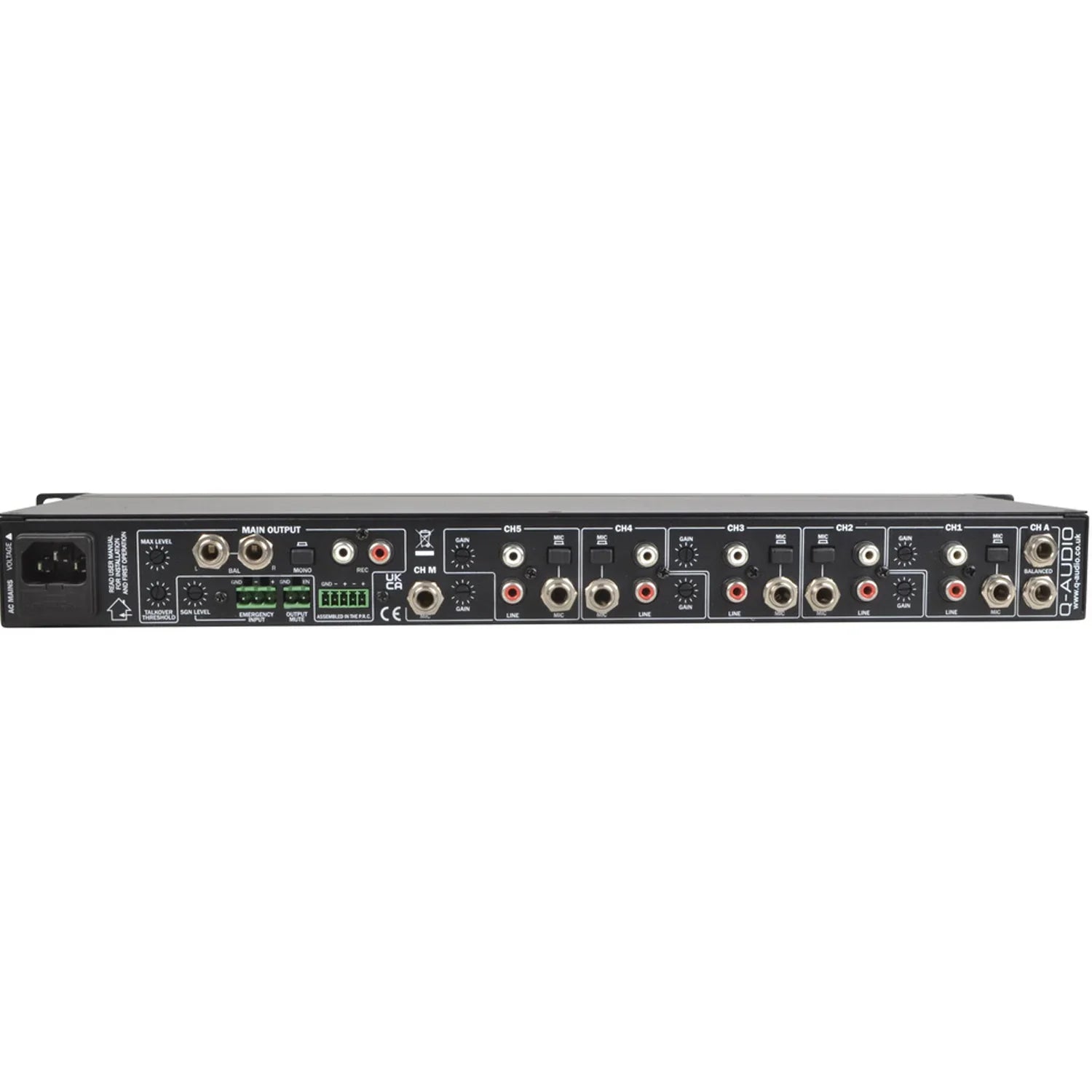

There is also one last input found on the back for an additional microphone. This input has front and rear gain control adjustable auto talk-over function, this automatically reduces music levels when the microphone is in use. The inclusion of 12V phantom power, activated by an internal jumper, this allows condenser microphones to be used.

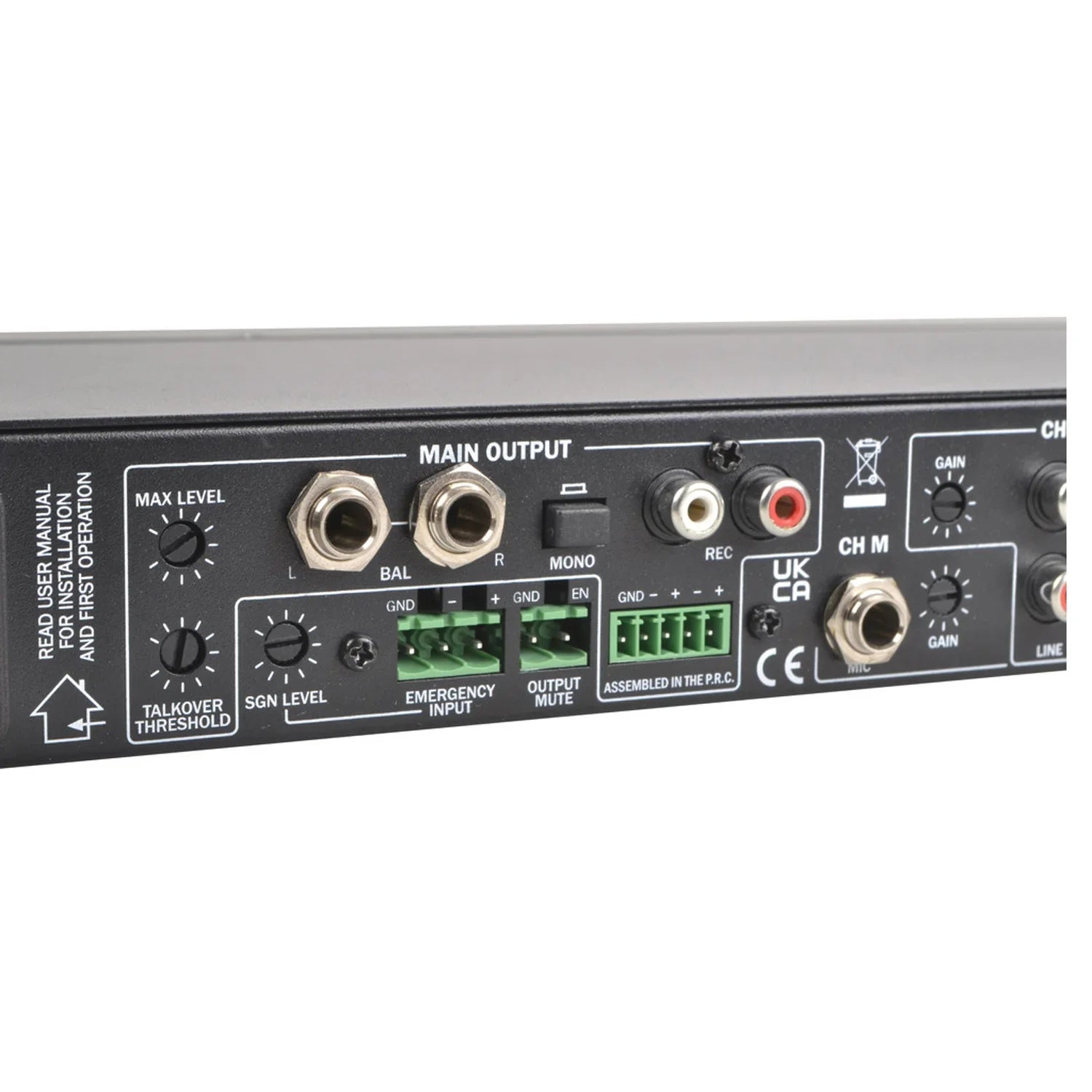

The mixer includes a stereo master output, monitored by a precise 10 LED level meter, with rear-panel controls for adjusting the maximum output level and a mono switch for added versatility. Balanced TRS and Phoenix output connectors provide robust connectivity options.
In case of emergencies, the mixer is equipped with an emergency input that overrides the master output to play emergency signals. An output mute contact allows for external muting of the output.
All housed within a 1u 19 metal case featuring detachable rack ears for flexible installation options. Elevate your audio experience with a mixer that combines advanced functionality, user-friendly controls, and reliable performance.
- 5 Switchable Stereo Inputs.
- Line & Microphone Inputs.
- 12v Phantom Power for Condenser Microphones.
- Adjustable Auto Talk-Over.
- 1U 19" Rack Mountable.
- Choice of FOH Input or Front 3.5mm Jack input (A).
- 1 Dedicated Microphone Input with Talk Over.
- Rear-panel gain control.
- Front-panel 2-Band EQ for Inputs 1-5.
- Balanced(1/4" jack) and Unbalanced Outputs (RCA).
- Mono Switch for Master output.
- Phoenix output connectors
- Emergency input mutes master output and plays emergency signal
- Output mute contact for external muting
- Headphone output with volume control and front-side 6.3mm stereo jack
- Unbalanced record output
- Hi-Fi Quality linear power supply for superior audio dynamic.
- Detachable Rack Ears.
