Q-Audio QWM 1970 10 Way Headworn/Lapel System with ADU Wireless Beltpack System
Product Description

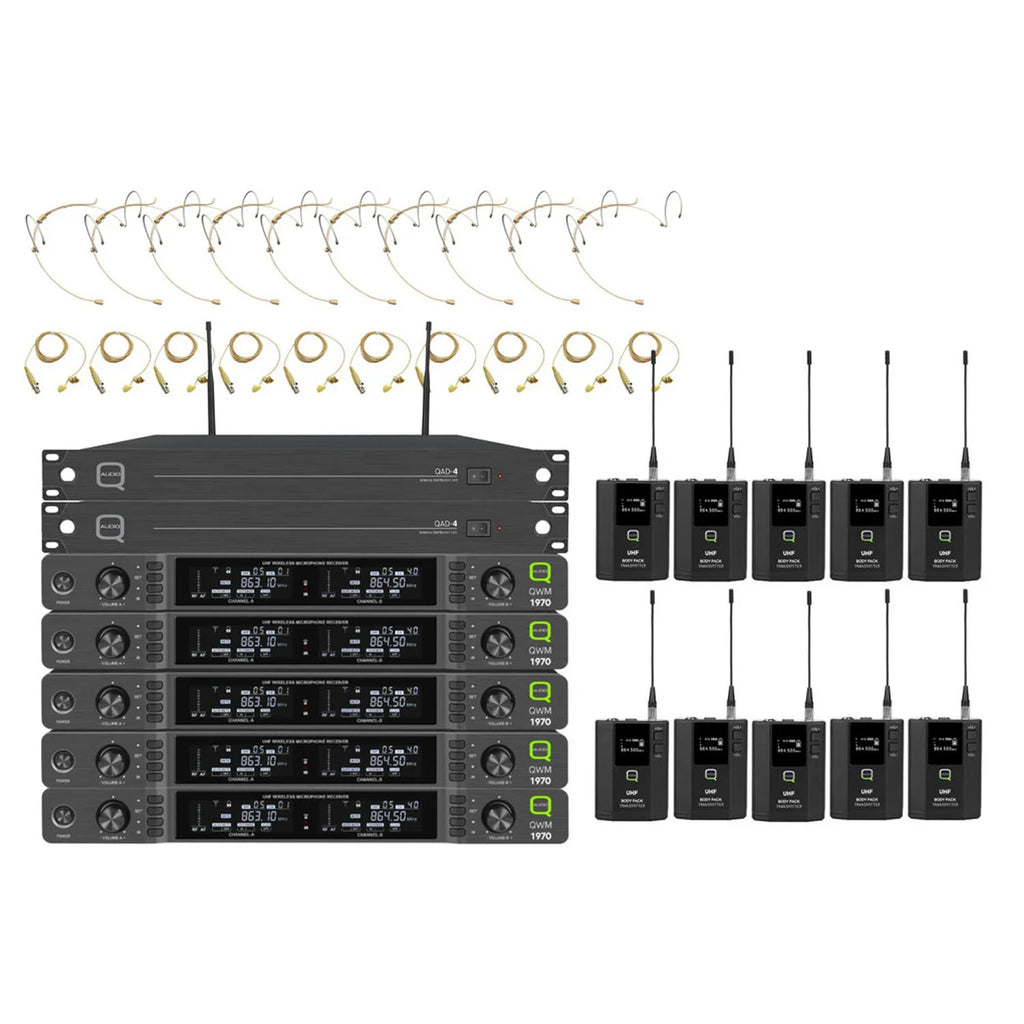

The Q-Audio QWM1970BP-10W is a complete ten-way wireless package designed for venues and teams that need reliable, easy-to-use radio mics across multiple performers. At its heart are five dual true diversity receivers paired with ten beltpack transmitters. You get ten beige head-worn microphones for discreet, close-mic’d speech, plus ten lapel microphones for hands-free presenting. For musicians, ten instrument cables are included so you can wire up guitars and other instruments with the same system.
To keep RF stable across all channels, the bundle includes two Q-Audio QAD-4 antenna distribution units and the required BNC leads. TheQAD-4 routes a pair of antennas to up to four diversity receivers, simplifying cabling and improving reception in busy RF environments. It is a dual 1:4 active splitter designed for wideband UHF operation, with loop-through for system expansion and DC power distribution for your receivers.
KEY FEATURES
System
Complete 10 way package for Headworn/Lapel/Instrument
Supplied in channel 38 (606 - 614MHz)
5x QWM 1970 True Diversity Dual Receivers
10x QWM 1970BP Body Pack Transmitters
10x Beige Head Worn Microphones
10x Beige Lapel Microphones
10x Instrument Cables
2x QAD 4 Antenna Distribution Unit
Receiver
Frequency: 606 -614 MHz
Bandwidth: 8MHz
Dynamic Range: 96dB
Distortion: <0.1%
Signal/Noise Ratio: 96dB
Frequency Response: 30Hz - 20kHz ±2dB
Signal/Noise Ratio: 90dB
Receiving Sensitivity: -95dBm
Power Supply: DC 12V 1A
Bodypack Transmitter
Frequency: 606 -614 MHz
Frequency Switching: IR Sync
Harmonic Radiation: <- 50dBc
Output Power: Up to 30mW
Batteries Required: 2x1.5V AA batteries
Battery life: >5h
Antenna Distribution
Bandwidth: UHF 450 - 1000 MHz
Antenna In/Link Out Connections: BNC
Antenna Inputs: 2
Antenna Link: 2
Antenna Outputs: 8
Antenna Power (via Antenna Input): 9v 100mA
Power Input Connection: 1x 12v DC Jack
Power Output Connections: 4x 12v DC Jack
