Q-Audio QWM 1970 6 Way Headworn/Lapel System with ADU Wireless Beltpack System
Product Description

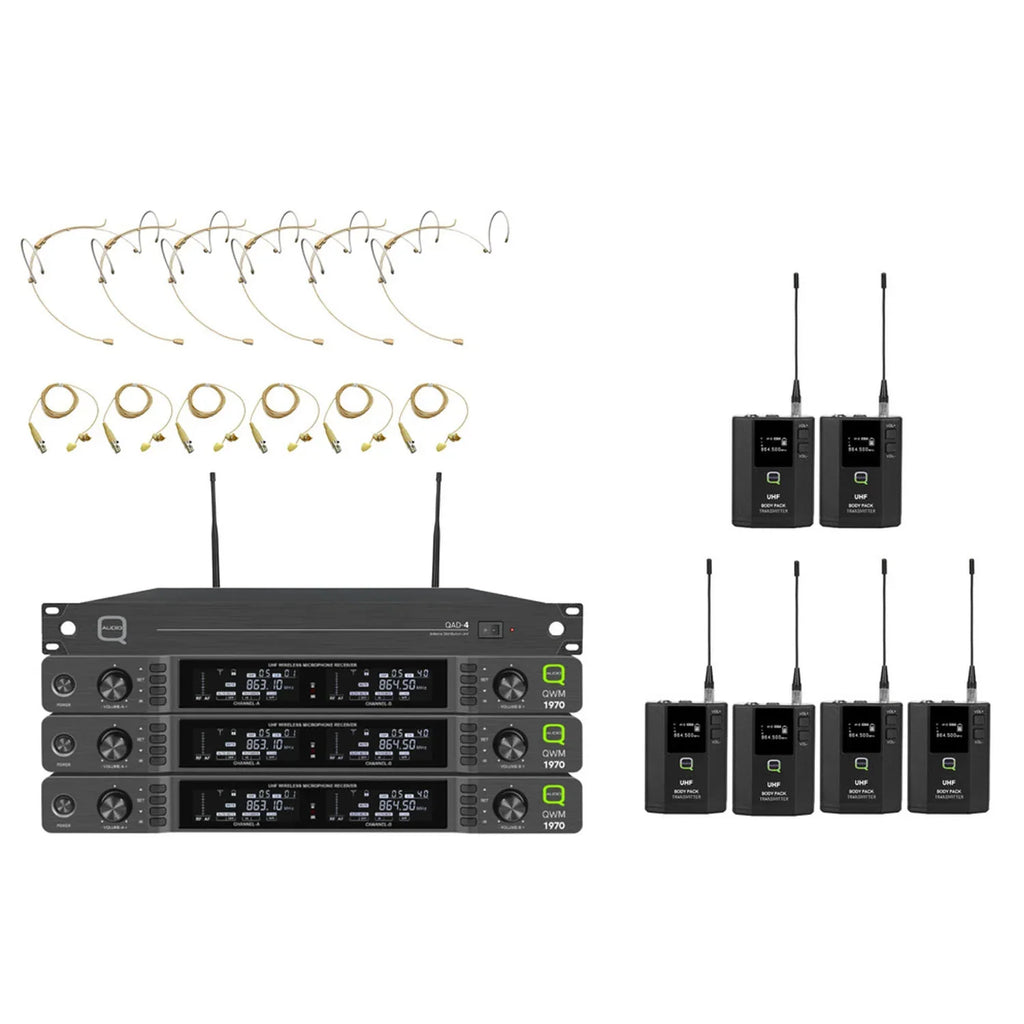

The Q-Audio QWM1970BP-6W is a complete six-way wireless package designed for venues and teams that need reliable, easy-to-use radio mics across multiple performers. At its heart are three dual true diversity receivers paired with six beltpack transmitters. You get six beige head-worn microphones for discreet, close-micd speech, plus six lapel microphones for hands-free presenting. For musicians, six instrument cables are included so you can wire up guitars and other instruments with the same system.
To keep RF stable across all channels, the bundle includes the Q-Audio QAD-4 antenna distribution unit and the required BNC leads. The QAD-4 routes a pair of antennas to up to four diversity receivers, simplifying cabling and improving reception in busy RF environments. It is a dual 1:4 active splitter designed for wideband UHF operation, with loop-through for system expansion and DC power distribution for your receivers.
.System
- Complete 6 way package for Headworn/Lapel/Instrument
- Supplied in channel 38 (606 - 614MHz)
- 3x QWM 1970 True Diversity Dual Receivers
- 6x QWM 1970BP Body Pack Transmitters
- 6x Beige Head Worn Microphones
- 6x Beige Lapel Microphones
- 6x Instrument Cables
- 1x QAD 4 Antenna Distribution Unit
Receiver
- Frequency: 606 -614 MHz
- Bandwidth: 8MHz
- Dynamic Range: 96dB
- Distortion: <0.1%
- Signal/Noise Ratio: 96dB
- Frequency Response: 30Hz - 20kHz ±2dB
- Signal/Noise Ratio: 90dB
- Receiving Sensitivity: -95dBm
- Power Supply: DC 12V 1A
Bodypack Transmitter
- Frequency: 606 -614 MHz
- Frequency Switching: IR Sync
- Harmonic Radiation: <- 50dBc
- Output Power: Up to 30mW
- Batteries Required: 2x1.5V AA batteries
- Battery life: >5h
Antenna Distribution
- Bandwidth: UHF 450 - 1000 MHz
- Antenna In/Link Out Connections: BNC
- Antenna Inputs: 2
- Antenna Link: 2
- Antenna Outputs: 8
- Antenna Power (via Antenna Input): 9v 100mA
- Power Input Connection: 1x 12v DC Jack
- Power Output Connections: 4x 12v DC Jack
